Malfunction Indicator Lamp
Malfunction Indicator Lamp

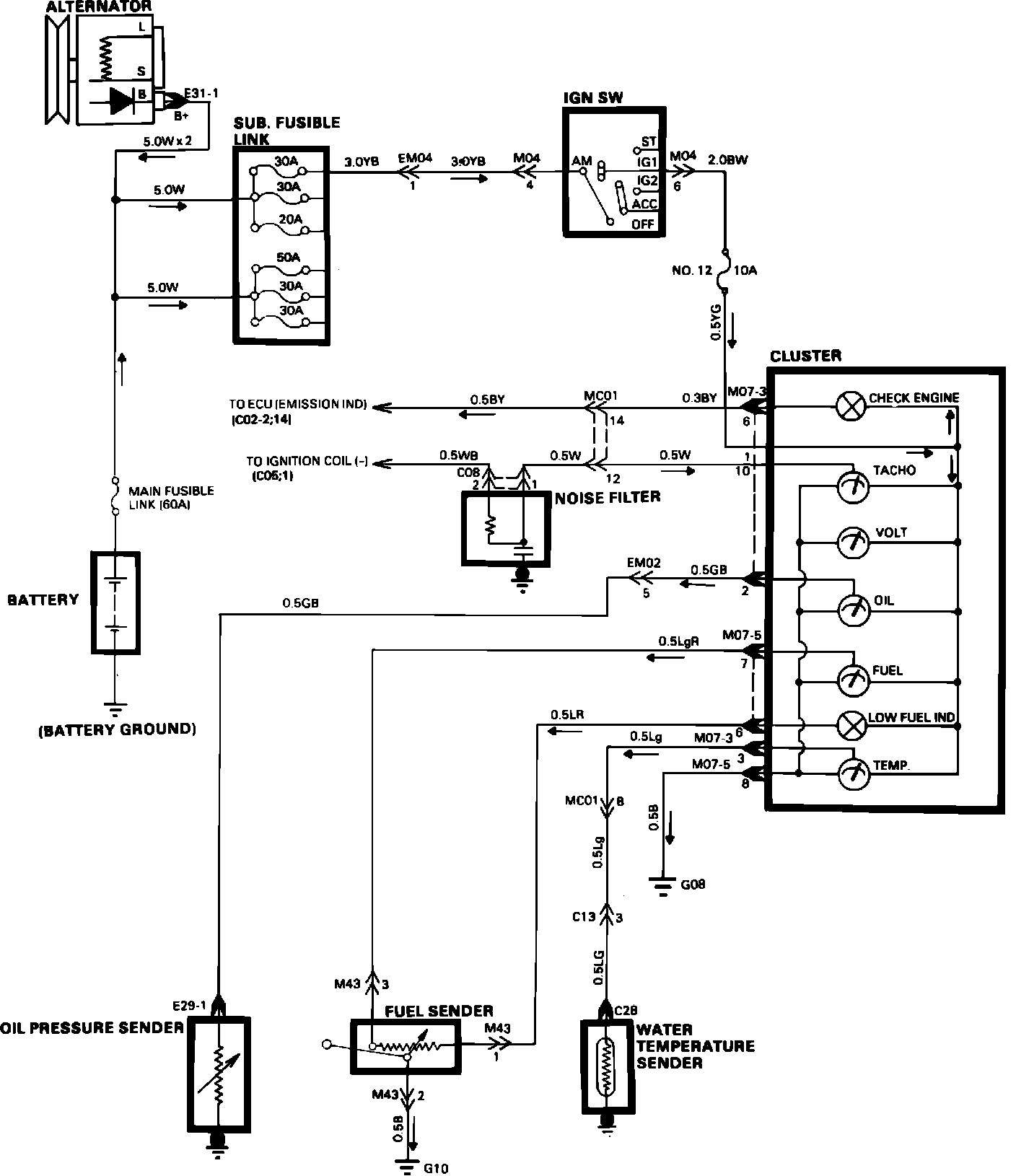

Gauges. Tachometer, Voltmeter, Check Engine, Oil, Fuel, Low Fuel And Temperature Indicator:
