Home >> Hyundai >> 1992 >> Elantra L4-1595cc 1.6L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Starter Relay >> Locations

Starter Relay: Locations

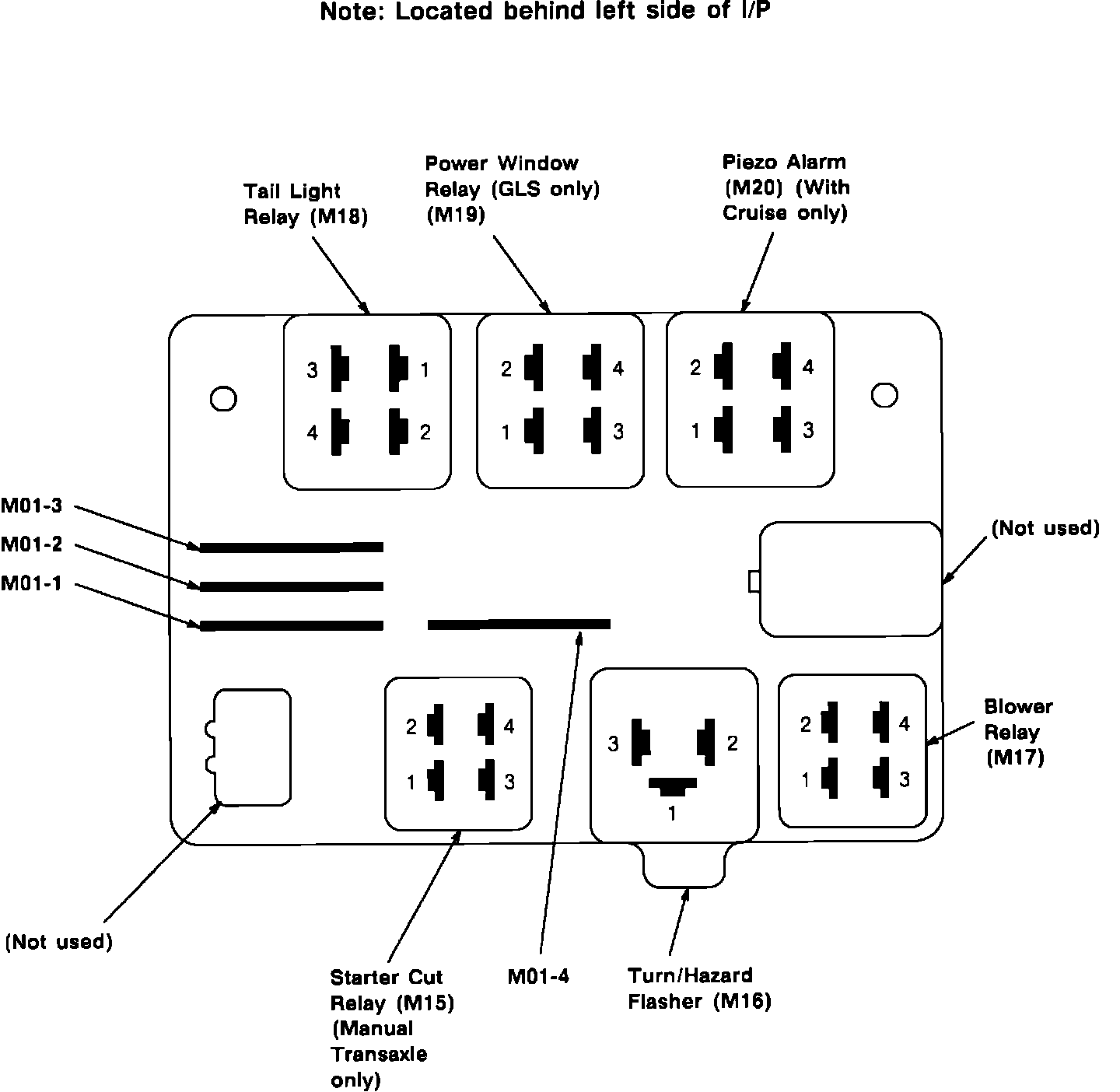

Passenger Compartment Relay Center:
