Home >> Hyundai >> 1992 >> Sonata V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> M54-1 - M60-1

M54-1 - M60-1

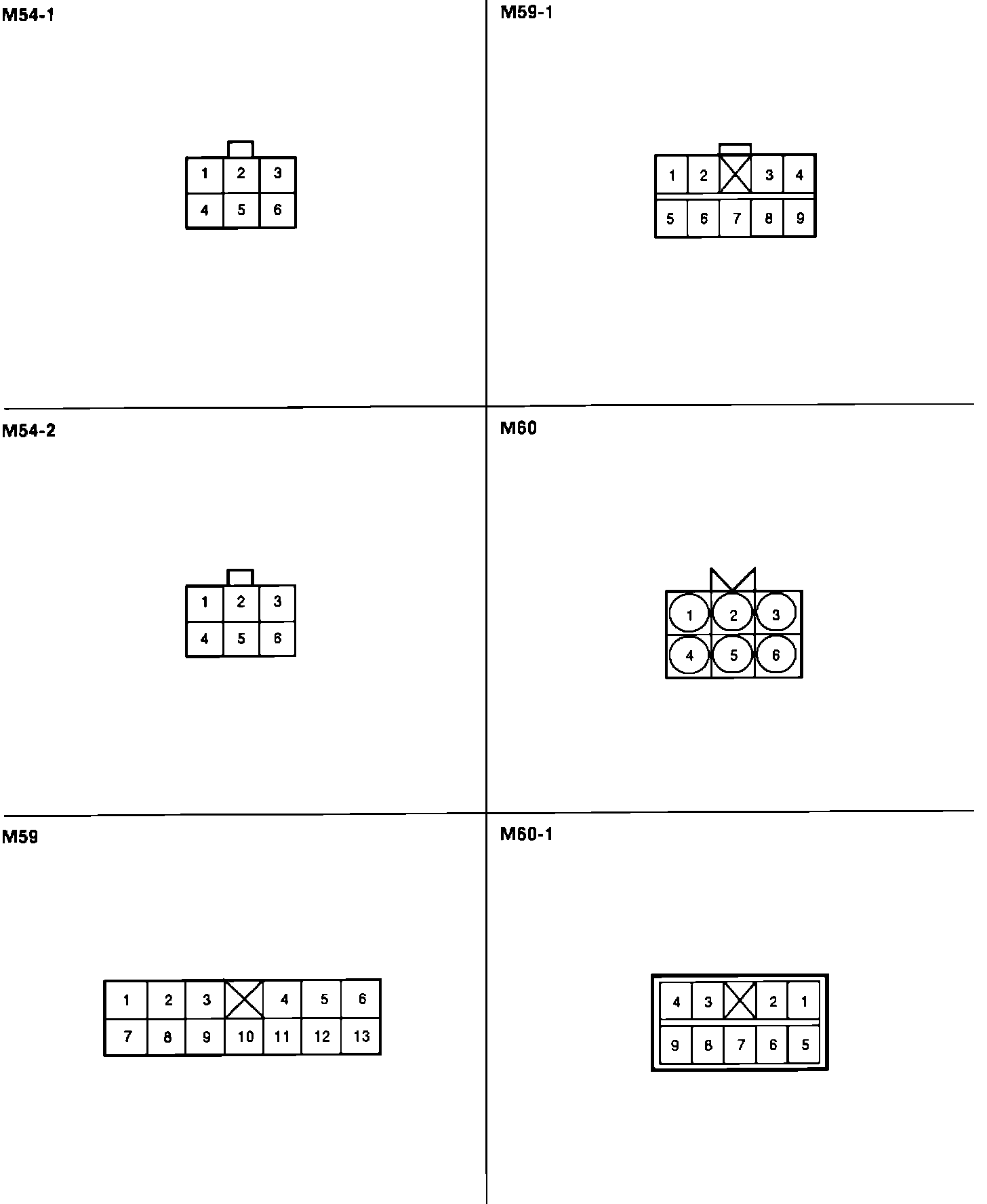

Connector Identification: M54-1 Thru M60-1:
