Accelerator Pedal: Service and Repair

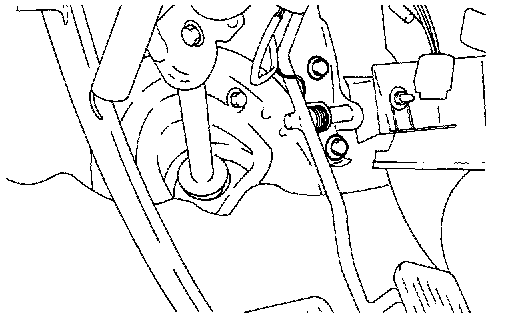

ACCELERATOR PEDAL COMPONENTS

REMOVAL





1. Remove the accelerator arm bushing and inner cable.





2. Loosen the bolts of the accelerator arm bracket and remove.

INSPECTION
1. Check the inner and outer cable for damage.
2. Check the cable for smooth movement.
3. Check the accelerator arm for deformation.
4. Check the return spring for deterioration.
5. Check the connection of the bushing to end metal fitting.
6. Check the accelerator proper operation.

INSTALLATION





1. When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.

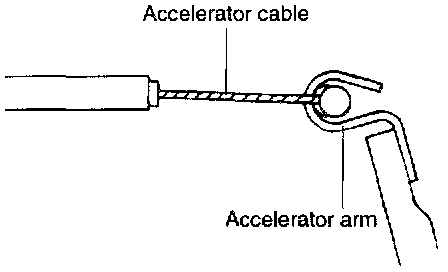

Accelerator Cable, Pedal End Grease Point:

2. Apply sealant to the bolt mounting hole, and tighten the accelerator arm bracket.

Tightening torque
Accelerator arm bracket bolts: 8 - 12 Nm
(80 - 120 kg.cm, 6 - 7 lb.ft)





3. Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.
