Speedometer Gear, M/T: Service and Repair

NOTE: To remove and install this component from transaxle see overhaul procedure of manual transaxle. Service and Repair

DISASSEMBLY

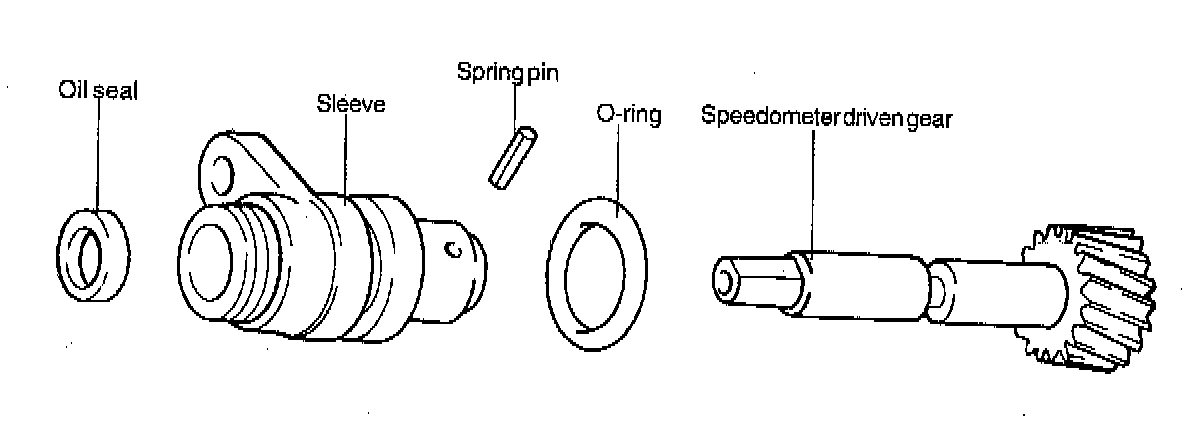

For disassembly, refer to the illustration.





ASSEMBLY
1. Apply gear oil sparingly to the speedometer driven gear shaft and insert the shaft.
2. Install the spring pin in such a way that its slit does not face the gear shaft.
