Transmission Cooler: Service and Repair

AUTOMATIC TRANSAXLE OIL COOLER

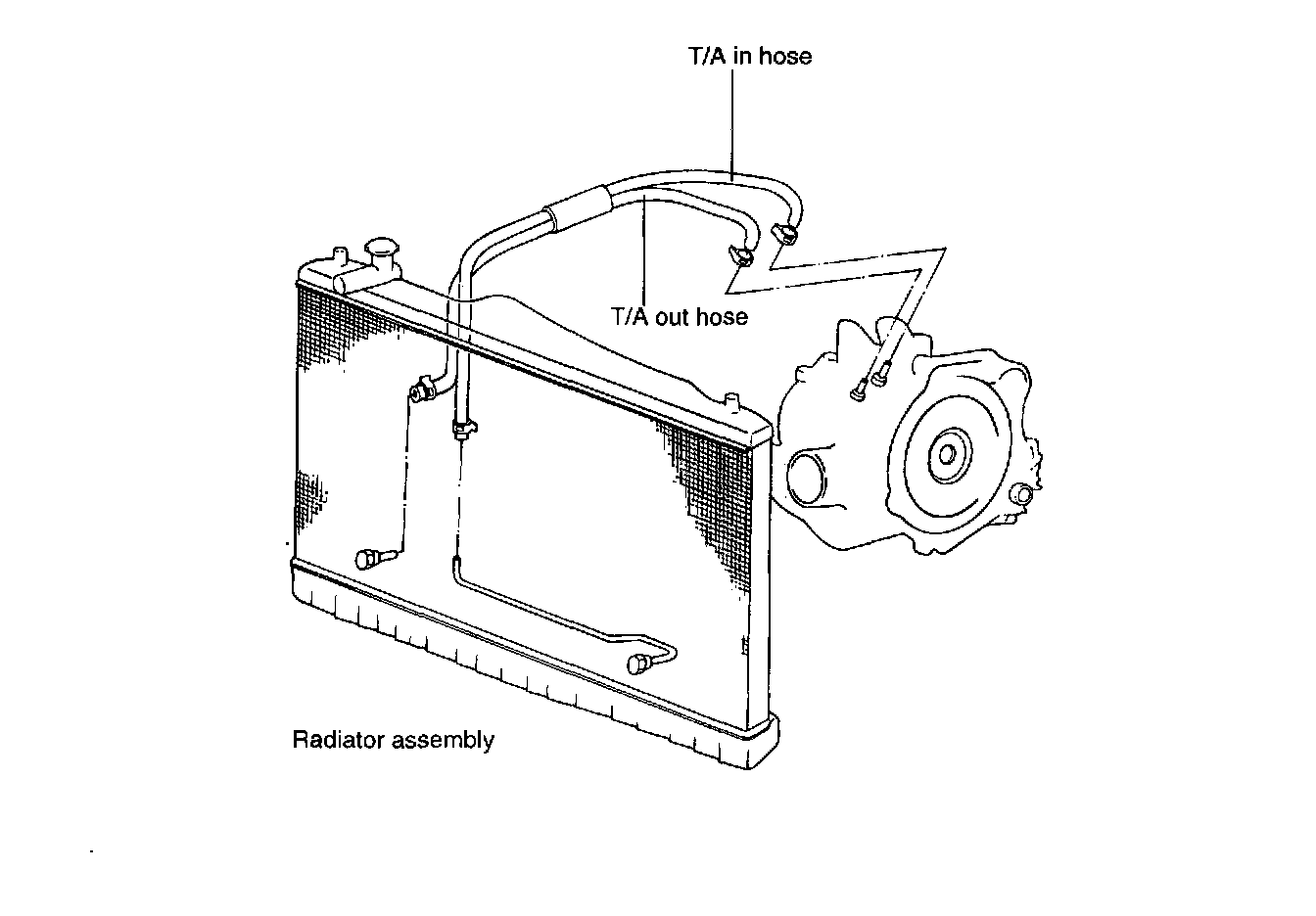

Components

Removal and Installation

1. Loosen the hose clamps, and then disconnect the transaxle oil cooler hoses.

CAUTION:
Plug the ends of the oil cooler hoses and the automatic transaxle port to prevent the transaxle fluid from spilling out and foreign material from getting in.

NOTE: When removing each part, avoid spilling the transaxle fluid.

2. Installation is the opposite of removal.
