Accent GL Sedan L4-1495cc 1.5L SOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
M
M

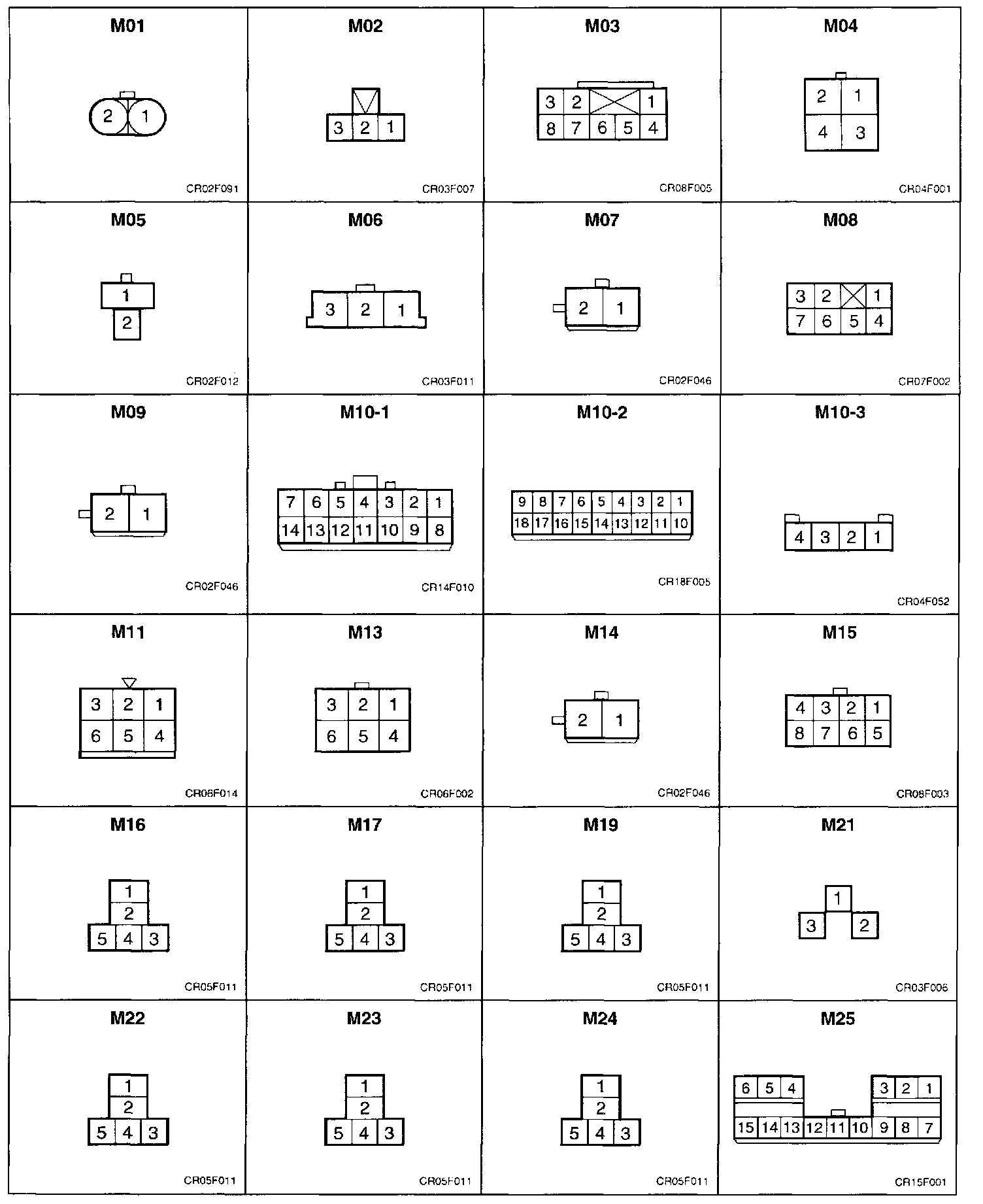

M01 T0 M25:

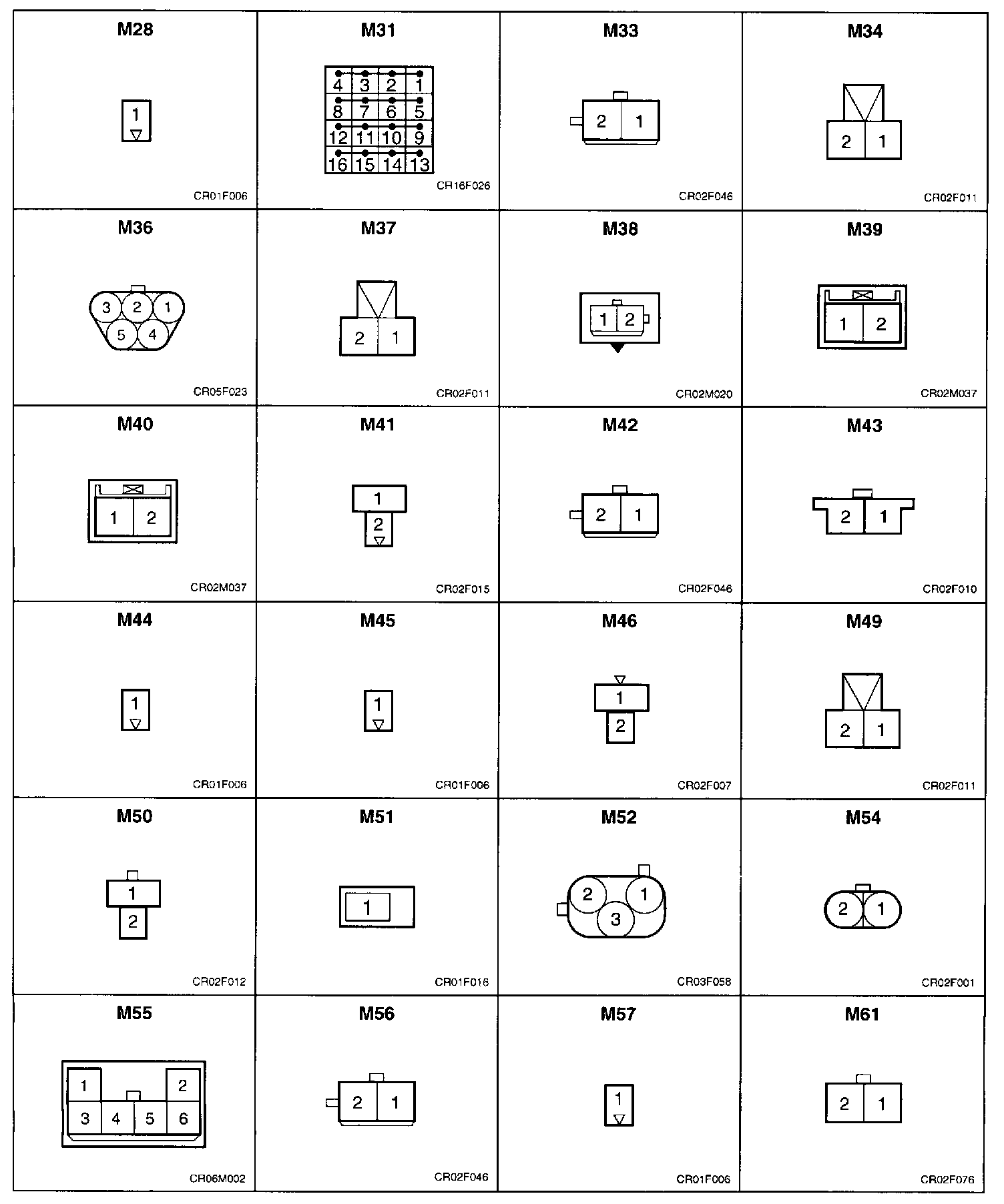

M28 To M61:

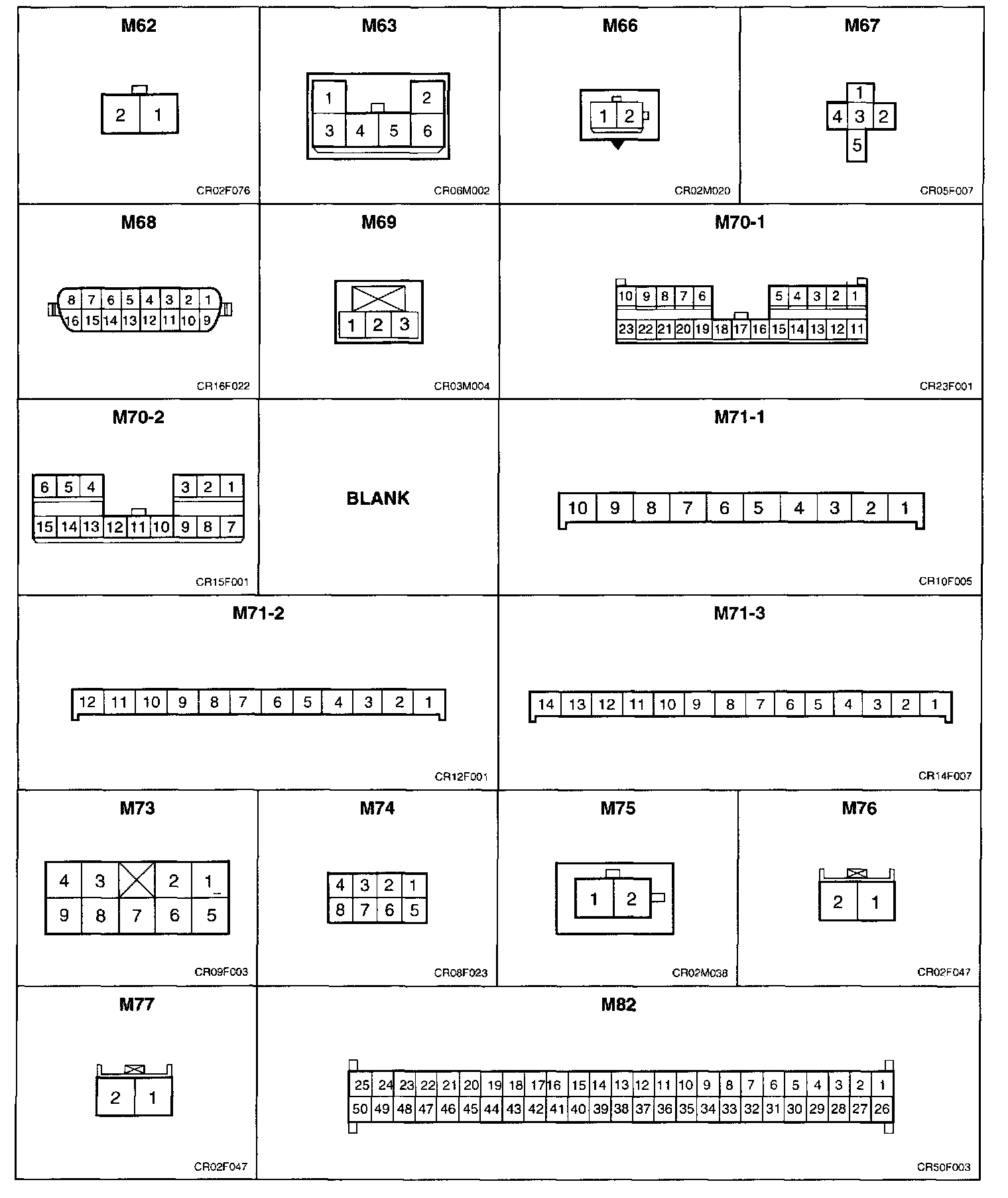

M62 To M69, M70-1, M70-2, M71-1 To M71-3, M73 To M82:

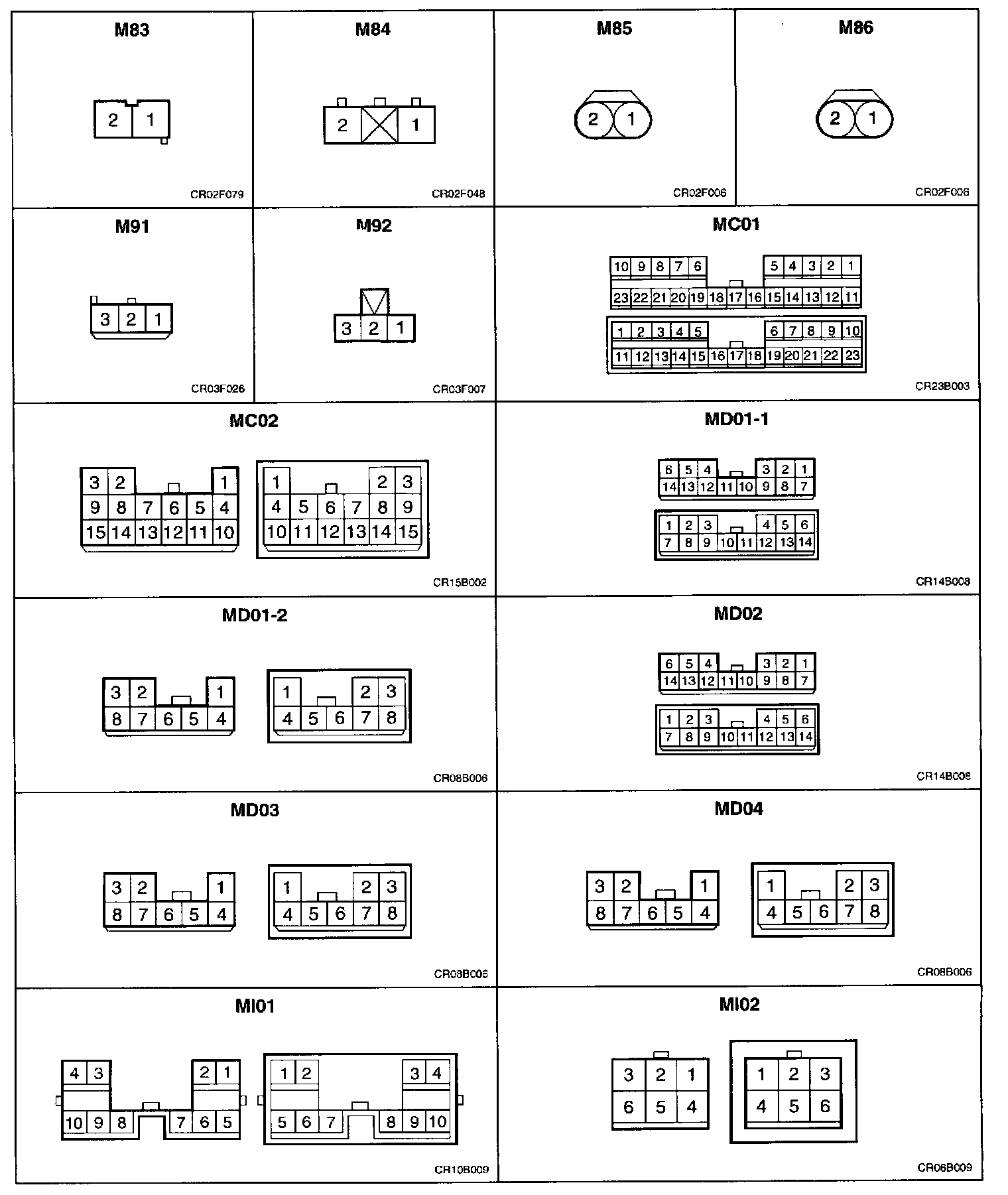

M83 To M92, MC01, MC02, MD01-1, MD01-2, MD02 To MD04, MI01, MI02:

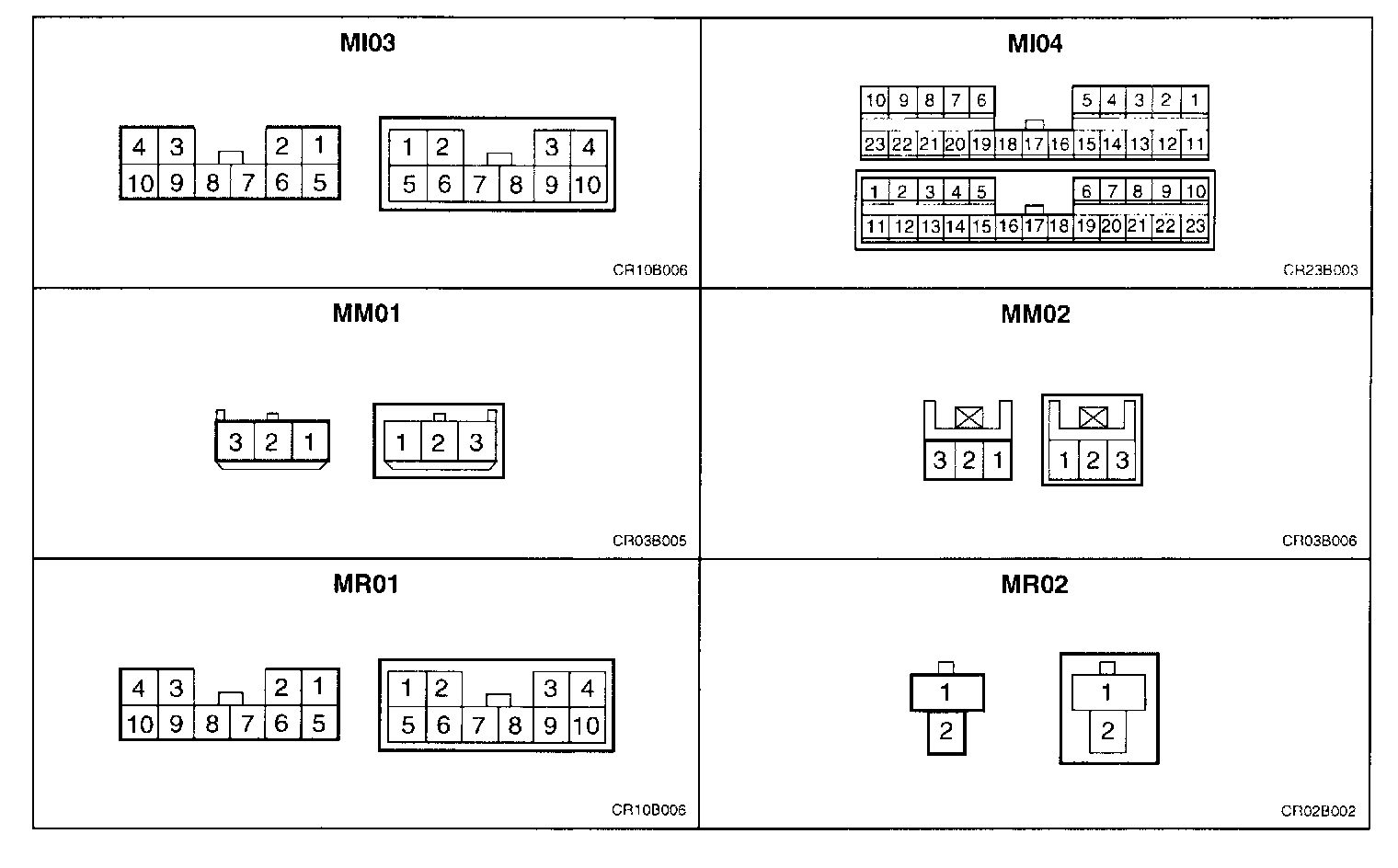

MI03, MI04, MM01, MM02, MR01, MR02:
