Intake Air Temperature Sensor

The intake air temperature sensor (IAT Sensor), located on the air cleaner, is a resistor-based sensor to detect the intake air temperature According to the intake air temperature information from the sensor, the ECM will control the necessary amount of fuel injection.

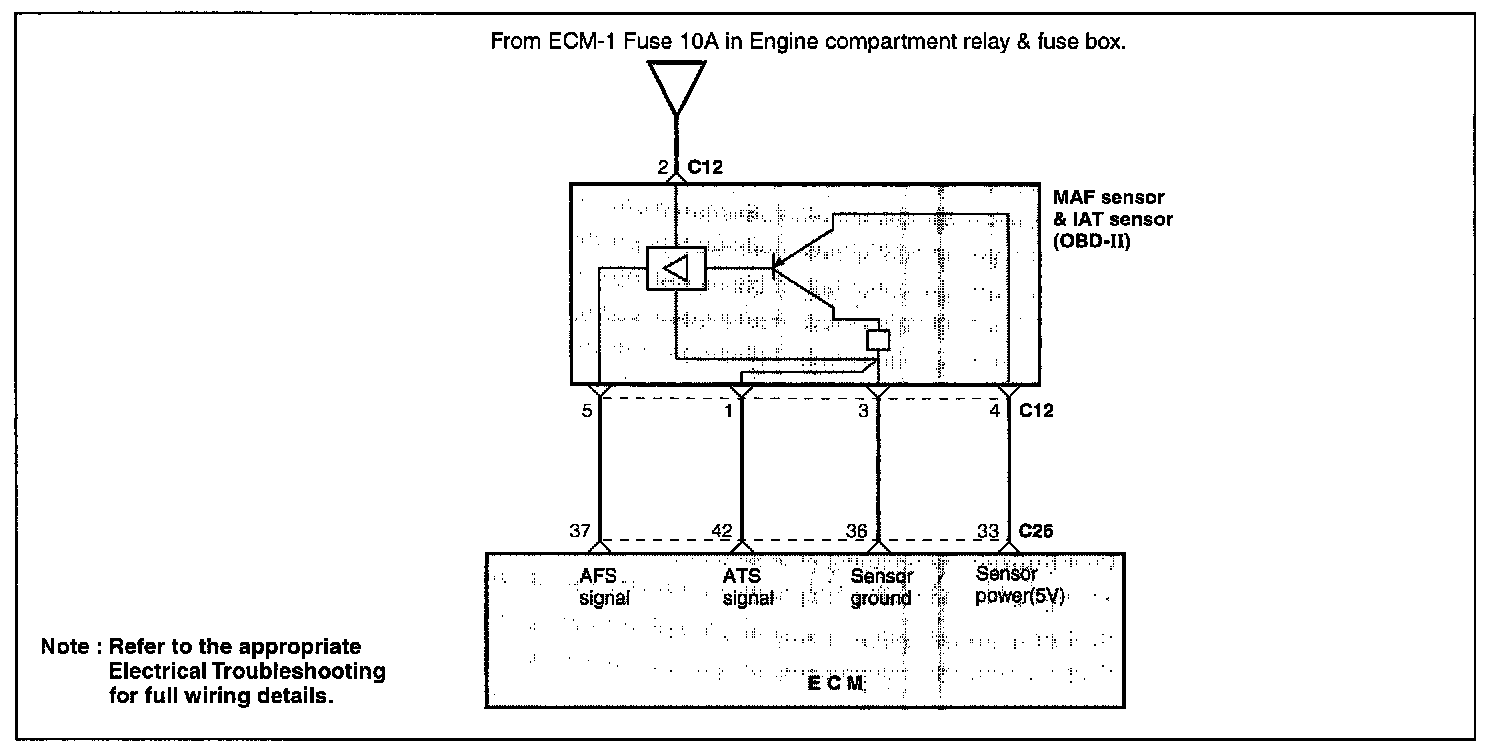

Circuit Diagram:

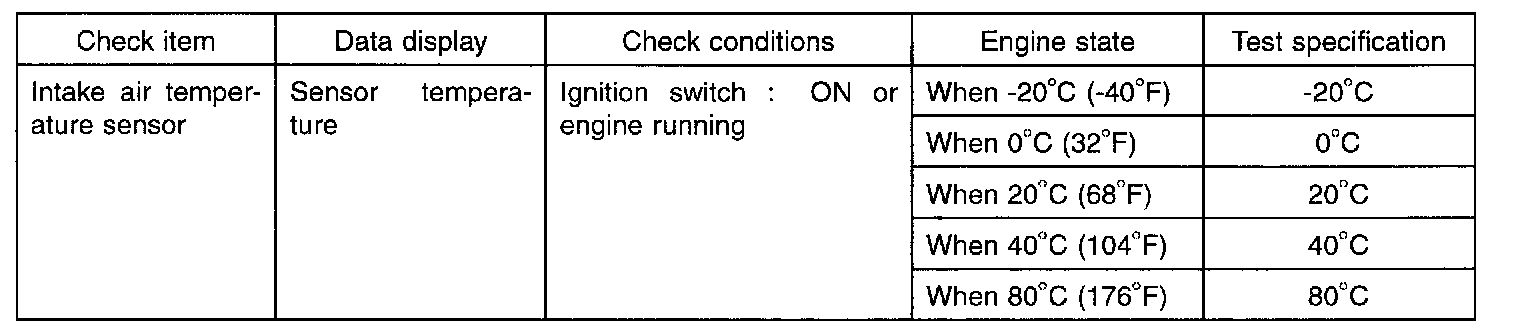

Using HI-SCAN:

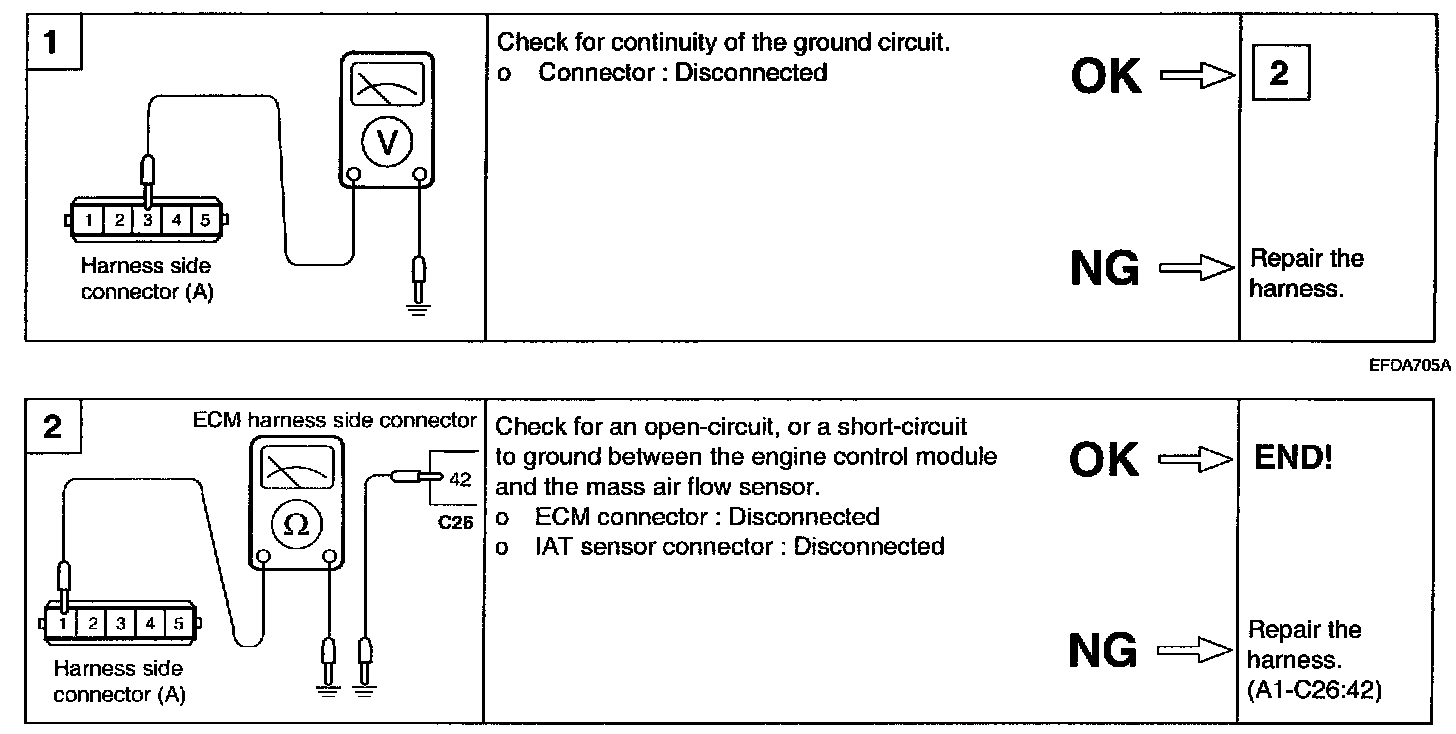

Harness Inspection Procedures (Step 1 - 2):

SENSOR INSPECTION

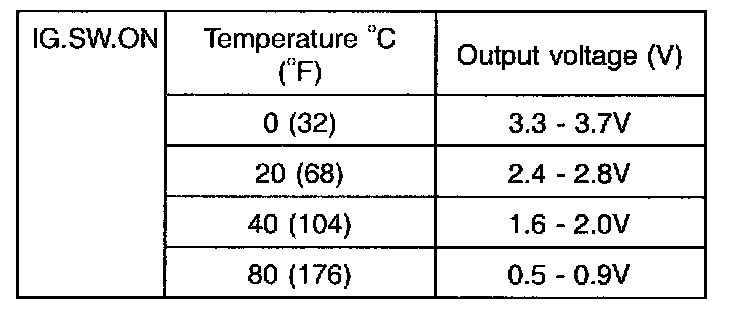

1. Measure the voltage between the IAT sensor terminal 1 and 3.
2. If the voltage deviates from the standard value, replace the intake air temperature sensor assembly.
