Headliner: Service and Repair

INTERIOR TRIM AND HEADLINING

Interior Trim And Headlining:

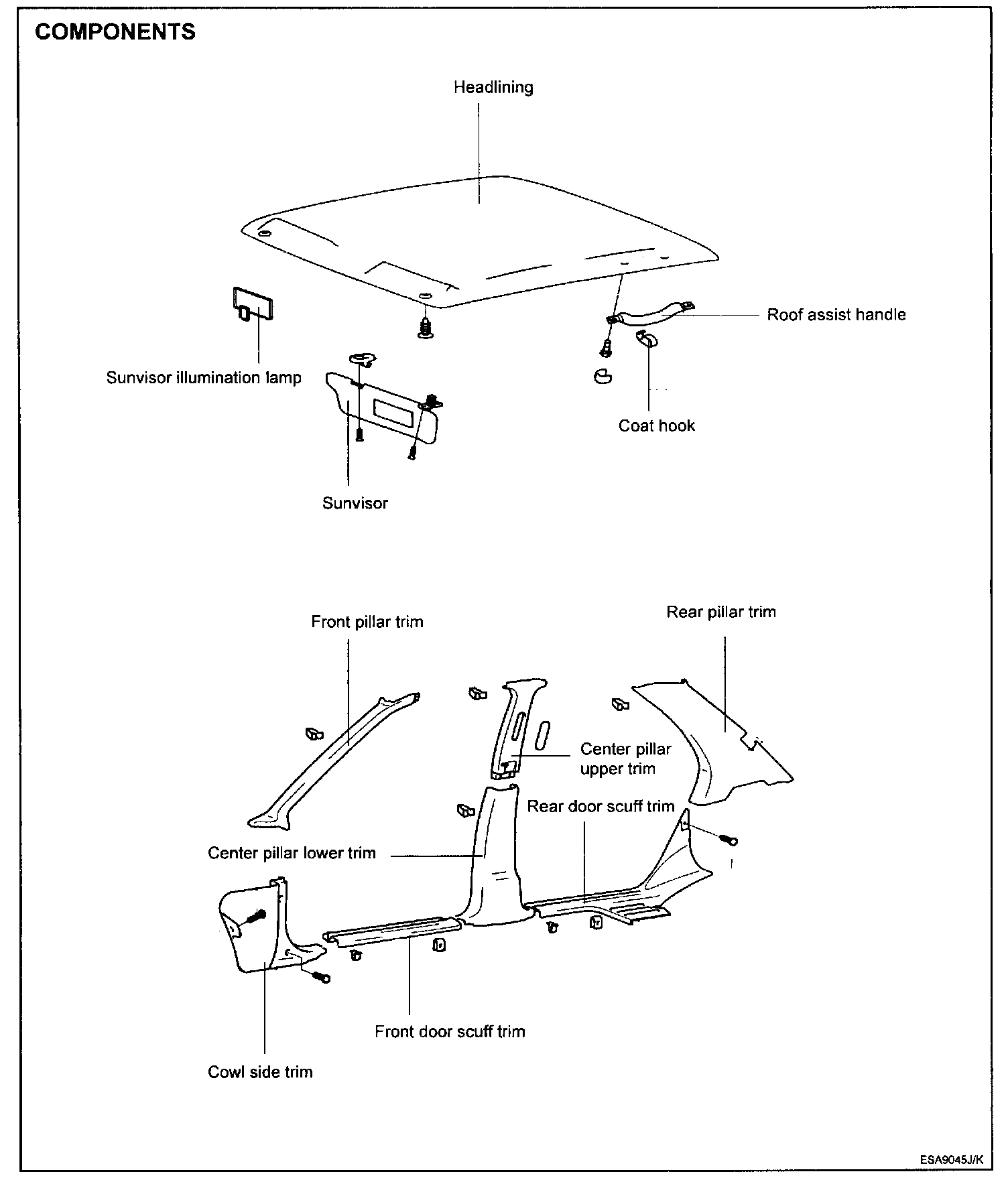

COMPONENTS

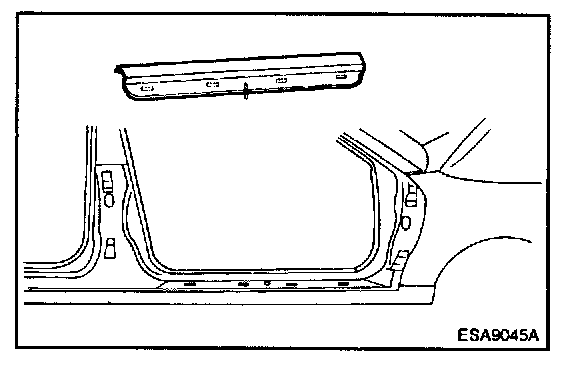

1. Remove the front door scuff trim and rear door scuff trim.




2. Remove the center pillar lower trim.

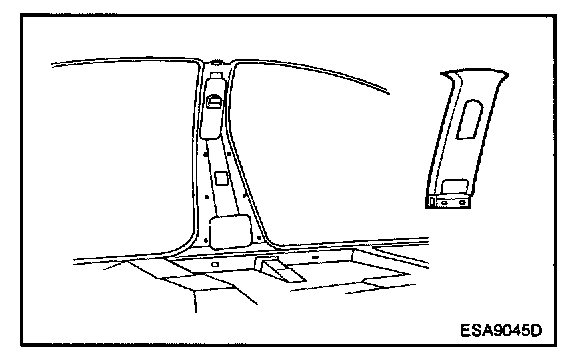

3. Remove front seat belt upper anchor and center pillar upper trim.

Tightening torque
Front seat belt upper anchor mounting bolts: 3.54.5 kg.m (25.4-32.6 lb.ft)

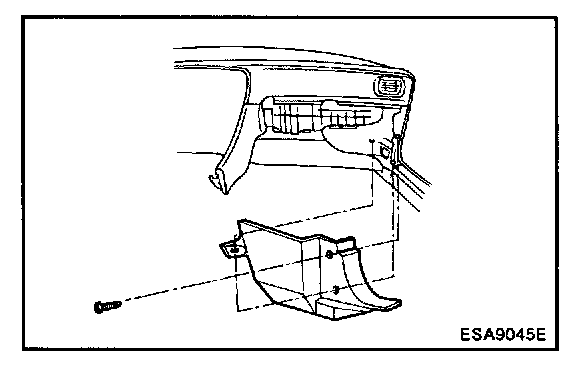

4. Remove the cowl side trim.

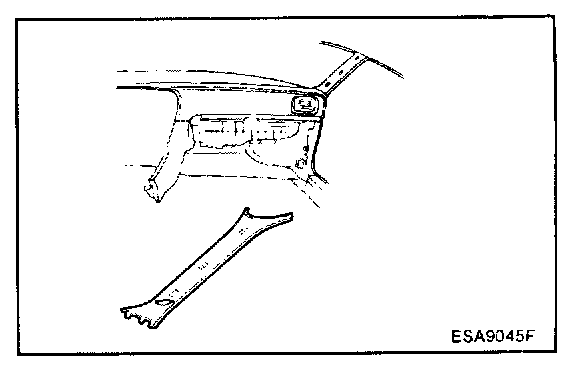

5. Remove the front pillar trim.

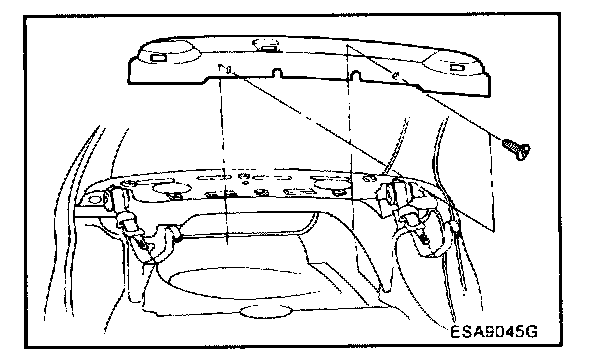

6. To remove the rear package tray trim, first remove the following parts:
1. Rear seat cushion.
2. Rear seat back.
3. Luggage partition trim.
4. High mounting stop lamp.

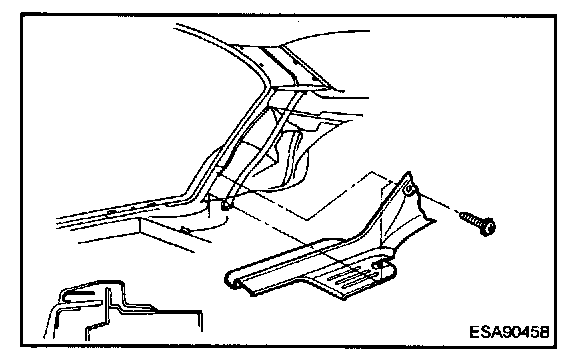

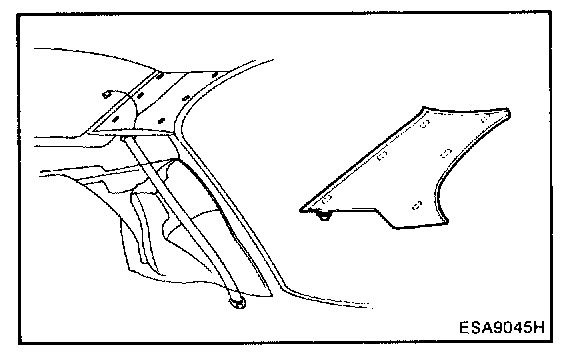

7. Remove the rear pillar trim.

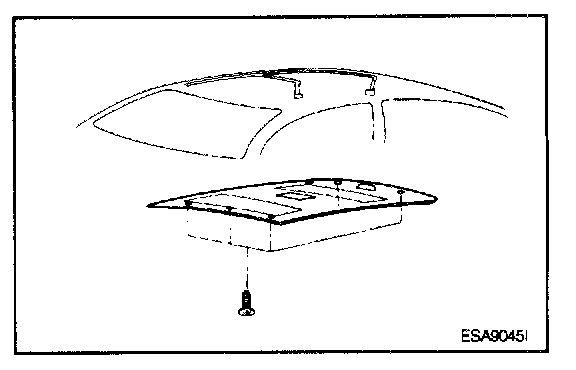

8. To remove the headlining, first remove the following parts:
1. Front and rear roof assist handle.
2. Map lamp, room lamp, overhead console lamp.
3. Sunvisor and sunvisor retainer.

9. Installation is the reverse of removal.
