Console: Service and Repair

Console:

COMPONENTS

REMOVAL AND INSTALLATION

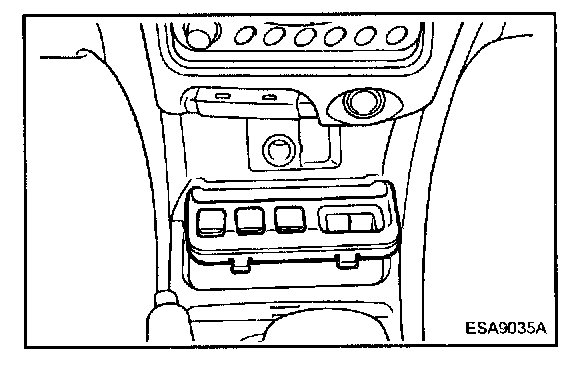

1. Remove the console switch mounting cover.

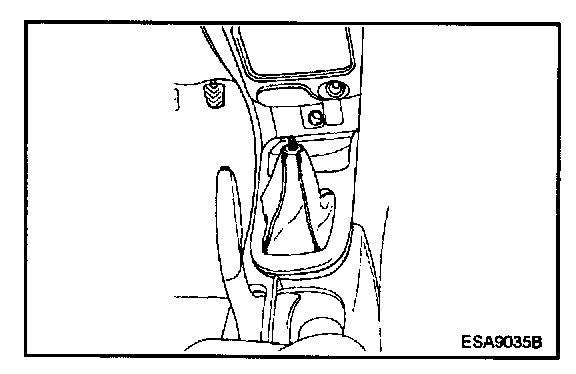

2. Remove the shift lever knob, the console upper cover plate, disconnect the accessary socket connector.

CAUTION: When prying with a flat tip screwdriver, wrap it with a shop towel to prevent damage.




3. Remove the floor console.

4. Installation is the reverse of removal.
