Seat Belt: Service and Repair

Seat Belt:

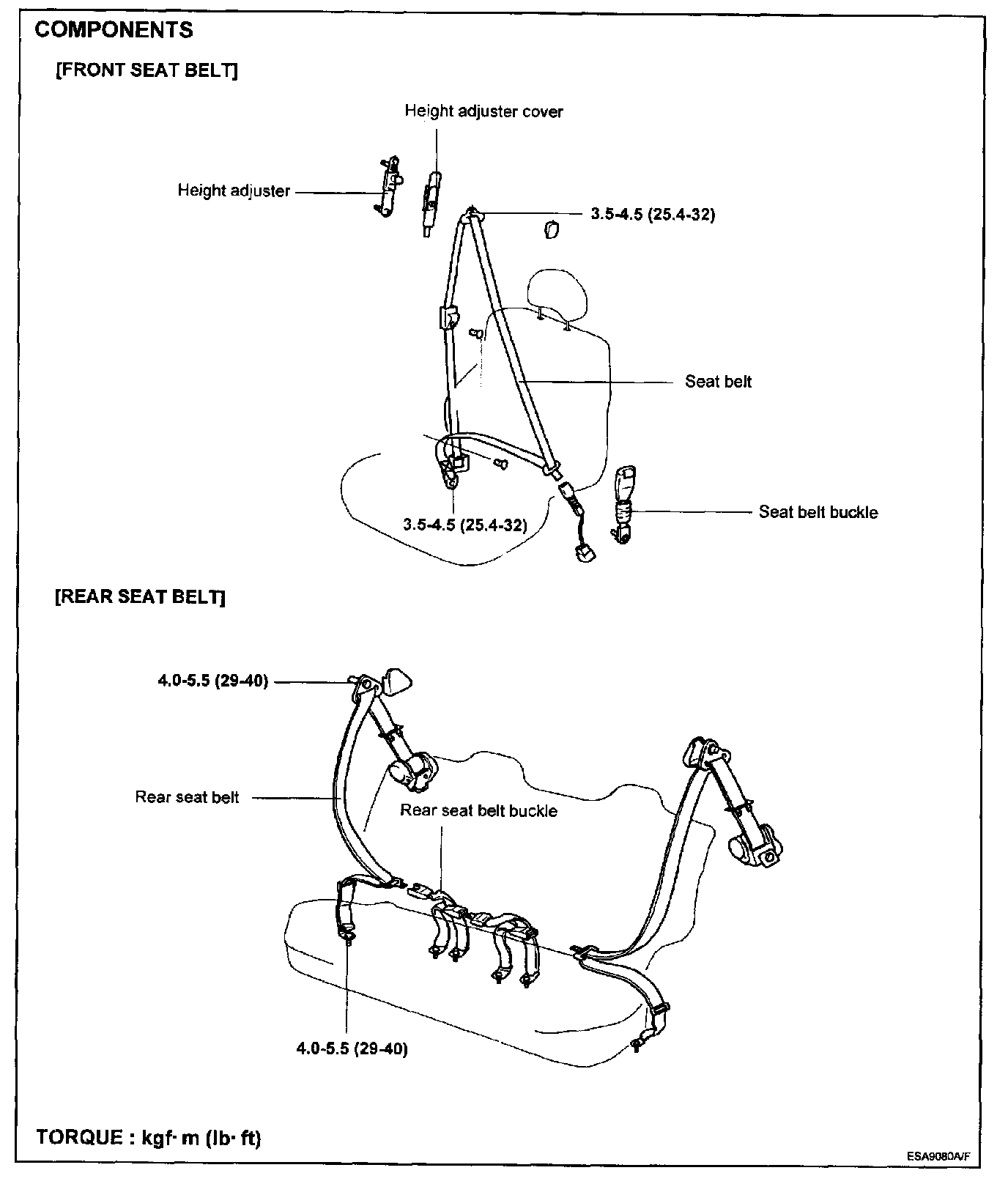

COMPONENTS

REMOVAL

Front seat belt

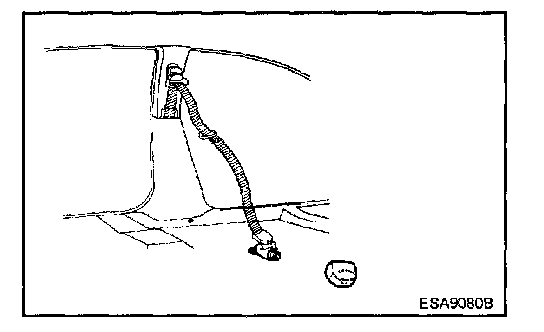

1. Remove the lower anchor cover and loosen the anchor bolt.

Tightening torque
Lower anchor bolt: 3.5 - 4.5 Kg.m (25.4 - 32.0 lb.ft)

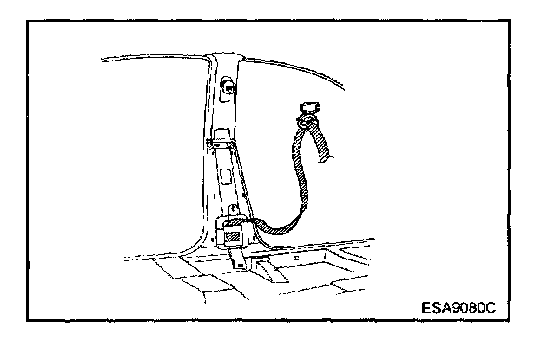

2. Remove the center pillar trim and upper anchor bolt.

Tightening torque
Upper anchor bolt: 3.5 - 4.5 kg.m (25.4 - 32.0 lb.ft)

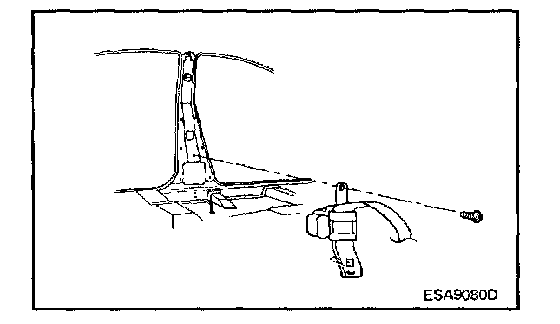

3. Remove the front seat belt retractor.

4. Installation is the reverse of removal.




Rear seat belt
1. Remove the rear seat cushion, rear seat back and rear package tray trim.

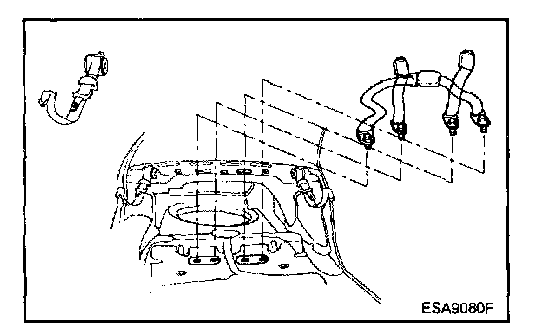

2. Remove the rear seat belt buckle and retractor.

Tightening torque
Seat belt buckle: 4.0 - 5.5 kg.m (29 - 40 lb.ft)

3. Installation is the reverse of removal.
