Remote Control: Testing and Inspection

STEERING WHEEL REMOTE CONTROL SWITCH
1. Check if the resistance exists between terminal 1 and 3.

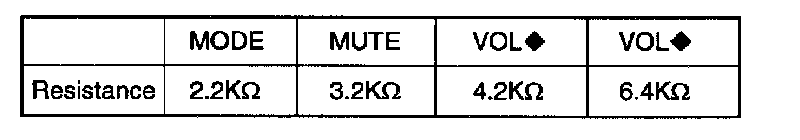

2. If the resistance between terminal 1 and 3 is not as specified, replace the steering wheel remote control switch.
