A/T - DTC P1630 Set in TCM: Overview

Group: CAMPAIGN BULLETINS

Number: 00-01-007

Date: OCTOBER, 2000

Model: 2001 SONATA

Subject:
2001 SONATA 2.4L TCM REPROGRAMMING INSTRUCTIONS CAMPAIGN 041

DESCRIPTION:
Some 2001 Model Year Sonatas with 2.4L DOHC engines and automatic transaxles were produced with Transaxle Control Modules (TCM) that do not properly diagnose and display diagnostic trouble codes (DTC) for some functions.

This condition results in the following diagnostic trouble code errors when diagnosing the TCM using the Hi-Scan.

^ No diagnostic trouble codes are set if either pulse generator A or B malfunction.

^ If the vehicle speed sensor malfunctions, the TCM incorrectly sets DTC P1630 (communication error), instead of P0500 (vehicle speed sensor).

Correct the above condition by replacing the current TCM program using the Hi-Scan and the reprogramming procedure in this bulletin.

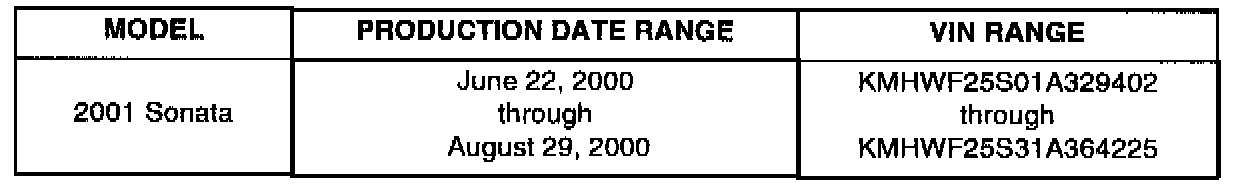

VEHICLES AFFECTED:
Model: Sonata vehicles with 2.4L DOHC engines and automatic transaxles.

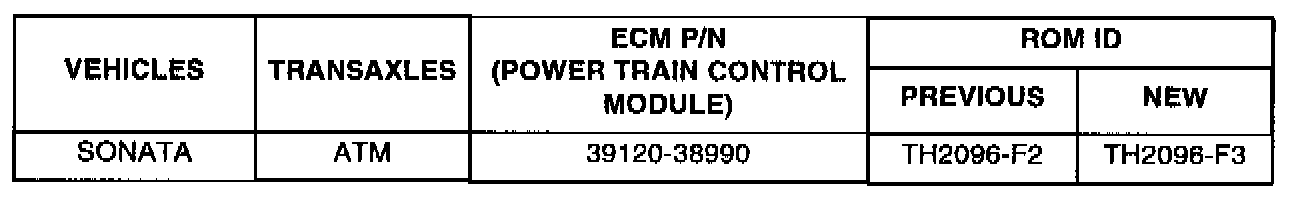

TCM SPECIFICATIONS

CAUTIONS BEFORE REPROGRAMMING

1. Conduct reprogramming with the ignition key in the "ON" position.

2. Be careful not to disconnect any cables connected to the vehicle and Hi-Scan during reprogramming.

WARNING:
If reprogramming is interrupted, the manual update procedure must be used

3. Do not start the engine during reprogramming.

4. Do not turn off the ignition key during reprogramming.

5. When the reprogramming is completed, turn the ignition key "OFF" for 20 seconds, before starting the engine.

REPROGRAMMING KIT

The Hi-Scan Pro package sent to your Dealership contains a Reprogramming Kit that is required for the procedure in this TSB.

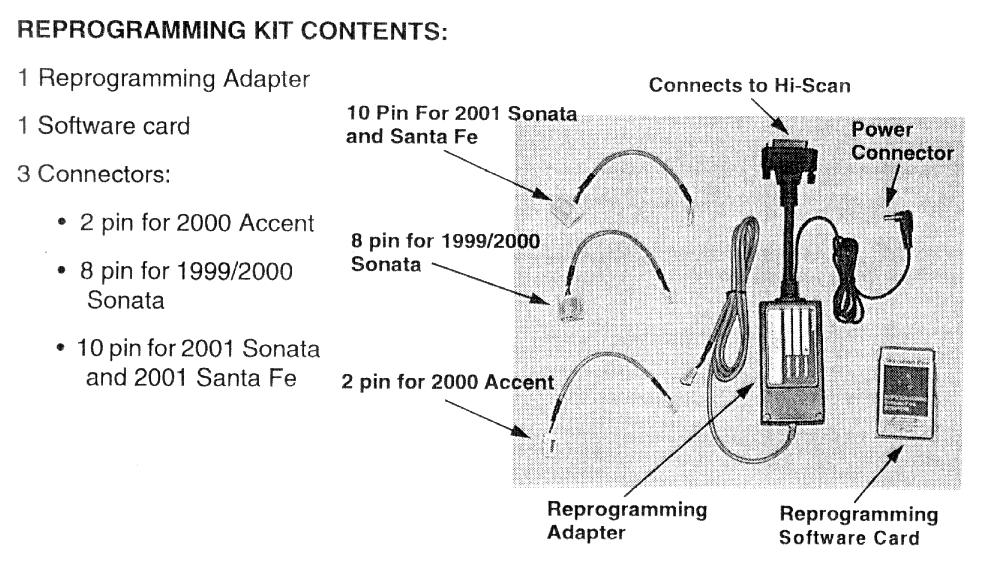

REPROGRAMMING KIT CONTENTS:





PARTS INFORMATION:

NOTE:
Your Dealership will be shipped an initial supply of the "Authorized Modification Labels", "Customer Information Tags" and Vehicle Emission Recall - Proof of Correction" forms, free of charge. Additional labels, tags and forms may be ordered from the PDC, free of charge.

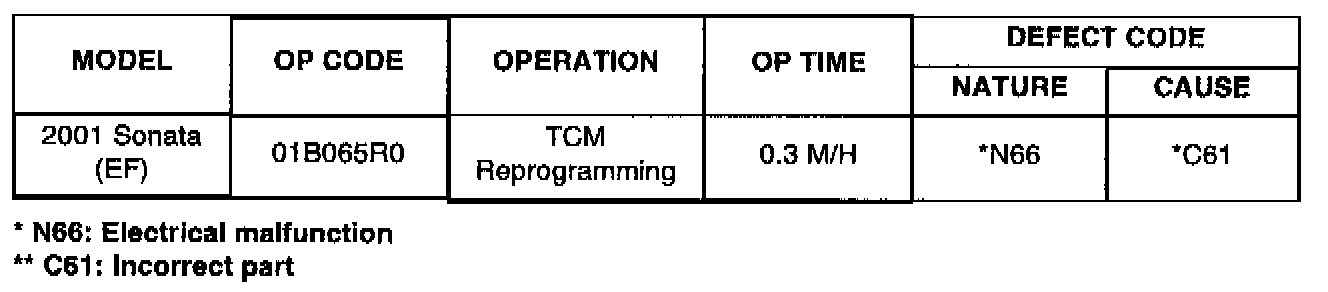

CAMPAIGN CLAIM INFORMATION:

NOTE:
Submit claims using the campaign claim screen.
