Trailing Arm Replacement

TRAILING ARM REPLACEMENT

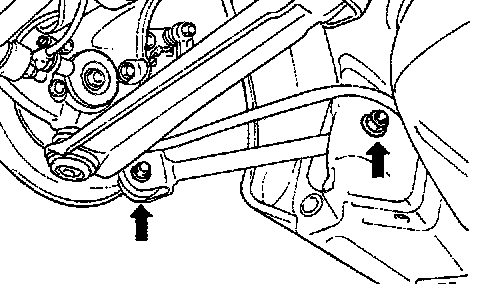

1. Remove the rear side bolt.
2. Remove the front side trailing arm nut.
3. Remove the trailing arm assembly.

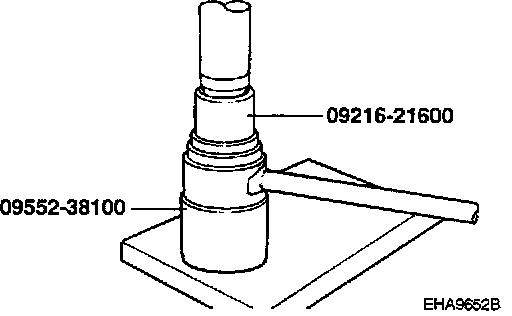

4. Using the special tools (09216-21600,09552-38100), removal and press-fit the bushing.

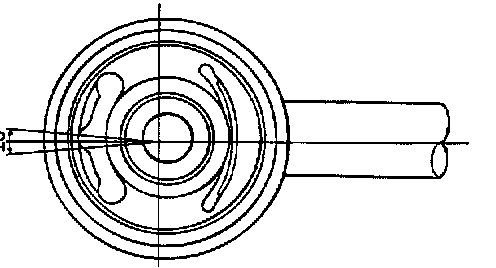

5. When press fitting, apply soap solution to the outside surface of the bushing, position it as shown illustration.
6. Install the trailing arm.
