Air Bag Systems
Air Bag Systems

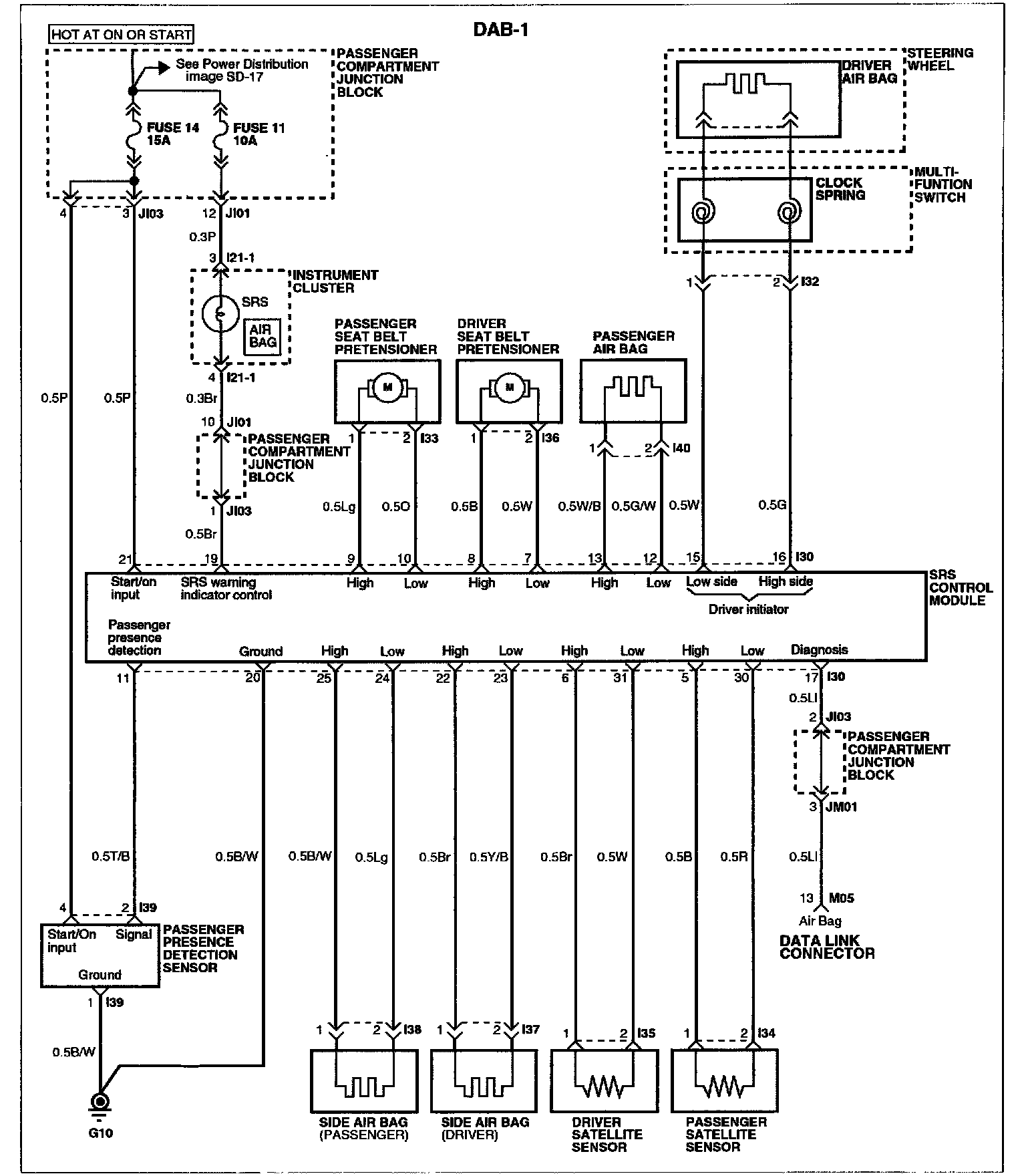

Image SD-198 - Air Bag System (1):

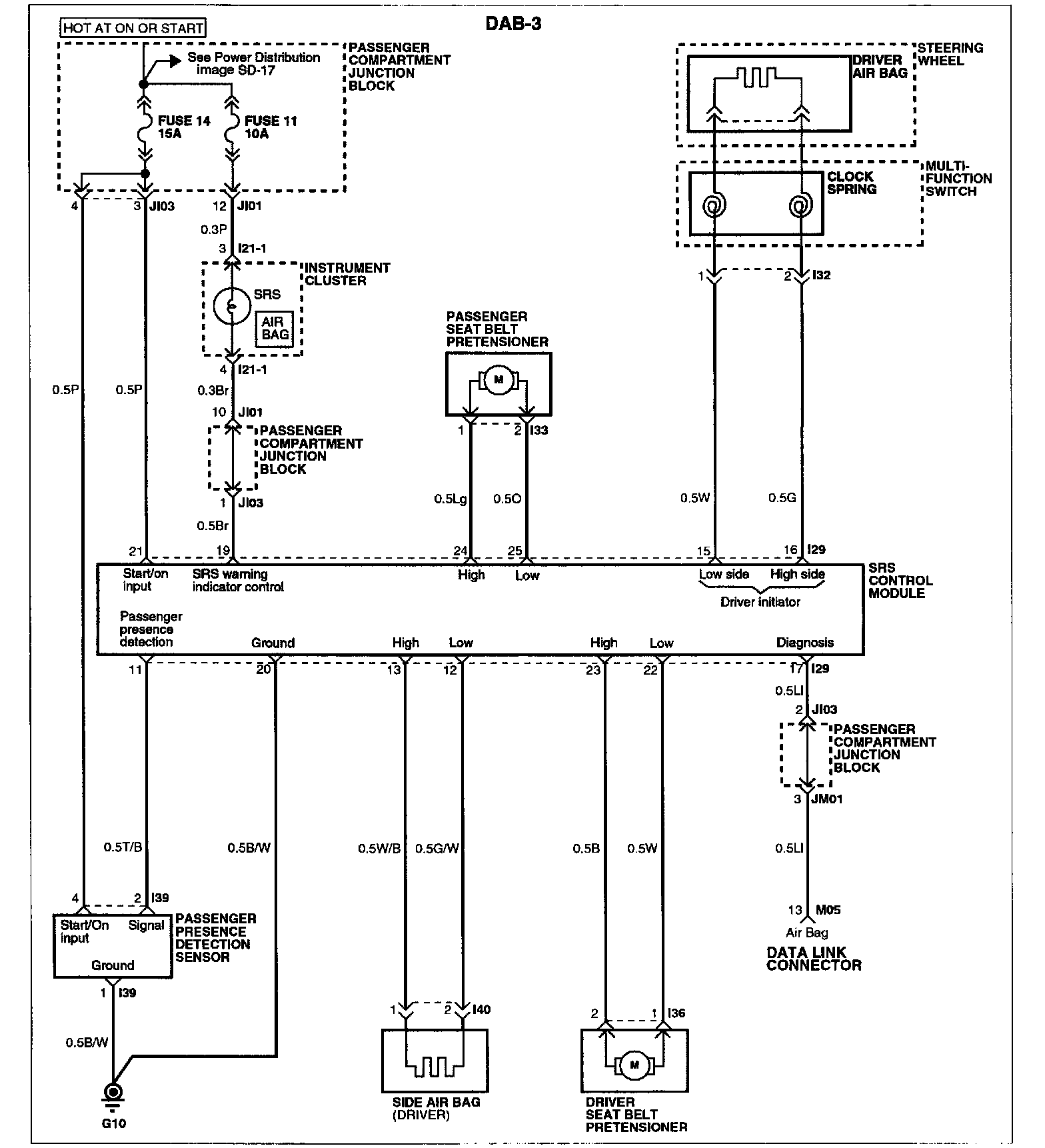

Image SD-199 - Air Bag System (2):
