Campaign - Tire Inflation Pressure Label Replacement

Group: CAMPAIGN

Number: 01-01-005

Date: SEPTEMBER, 2001

Model:
2001 XG300

Subject:
2001 XG300 TIRE INFLATION PRESSURE LABEL REPLACEMENT PROCEDURE CAMPAIGN 045

DESCRIPTION:

The tire inflation pressure labels of XG300 vehicles produced between 4/16/01 and 8/9/01 do not contain tire inflation pressure information for the P205/60 R16 16" wheel tire size.

This TSB provides a procedure for label replacement.

VEHICLES AFFECTED:
Model: 2001 XG300

^ Affected vehicle production date range: Produced from April 16, 2001 to August 9, 2001 inclusive.

^ Affected VIN range: Produced from KMHFU45D61A125545 to KMHFU45D21Al148207.

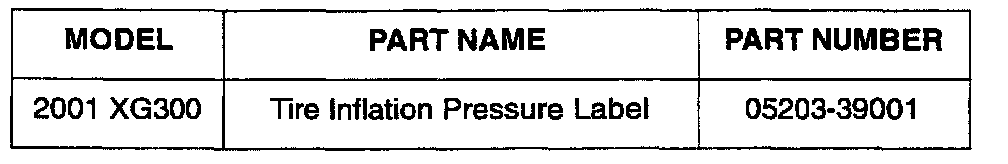

PARTS INFORMATION

SERVICE PROCEDURE:





1. Locate the original tire inflation pressure label at the lower edge of the driver side door as shown.

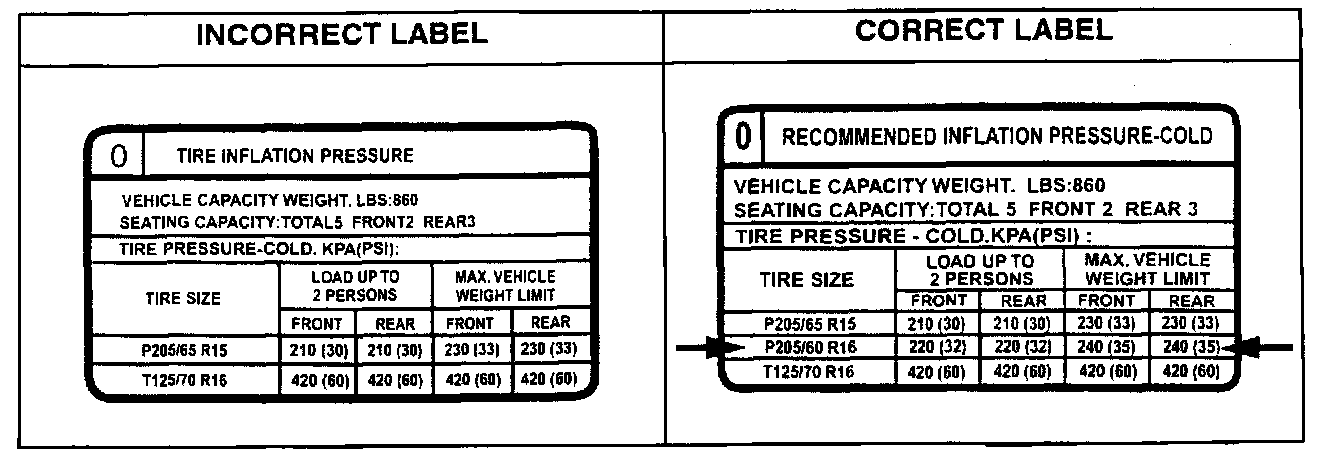

2. Check to confirm that the correct label is attached to the driver side door inner panel. The label should contain information for "P205/60R16" as shown.

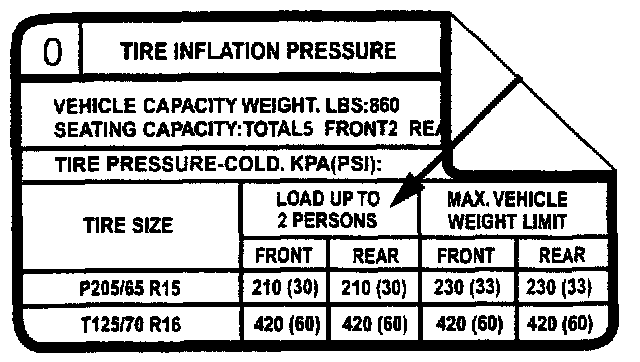

3. If the label does not contain the information for the "P205/60R16" tire size, carefully remove it from the driver side door. Remove it by peeling the label from a top corner, pulling it downward at an angle toward the other side. Pull with the label folded back 180° on itself.

4. Clean any adhesive remaining on the surface using a rag dampened with rubbing alcohol to soften the adhesive. Then remove the loosened adhesive with a dry paper towel. Repeat these steps until the adhesive is completely removed.

5. Apply a new tire inflation pressure label in the same location.

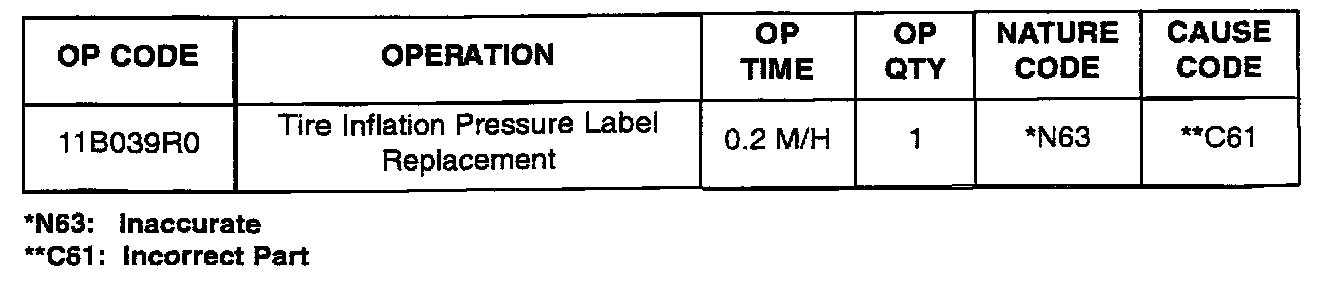

WARRANTY INFORMATION
