Scuff Plate: Service and Repair

REMOVAL

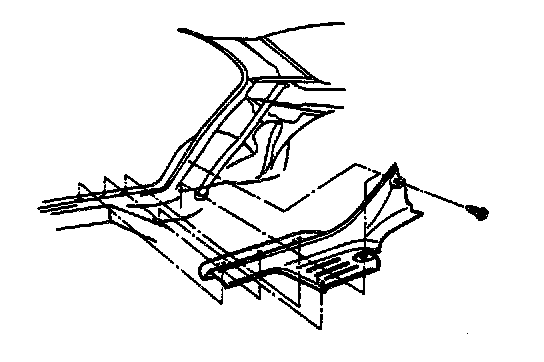

FRONT DOOR SCUFF TRIM
Pry loose the front door scuff trim with a flat-tip screwdriver.

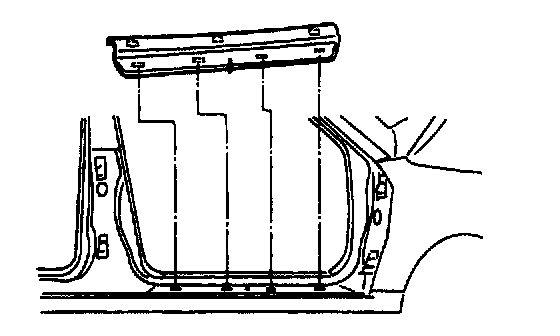

REAR DOOR SCUFF TRIM
Remove the rear door scuff trim after removing the screws.
