Electrical Diagrams
Electrical Diagrams

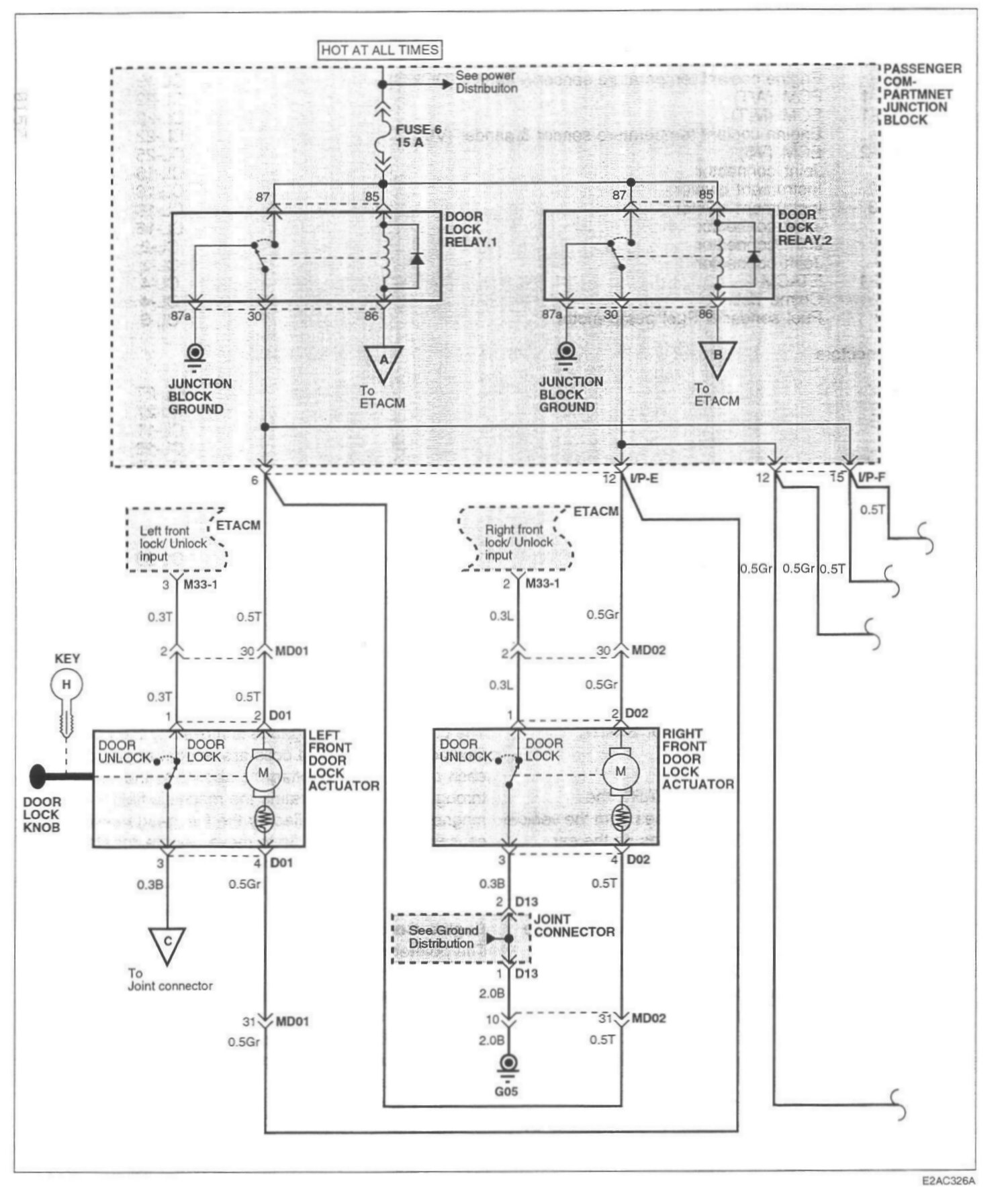

Image SD-142 Power Door Locks (1):

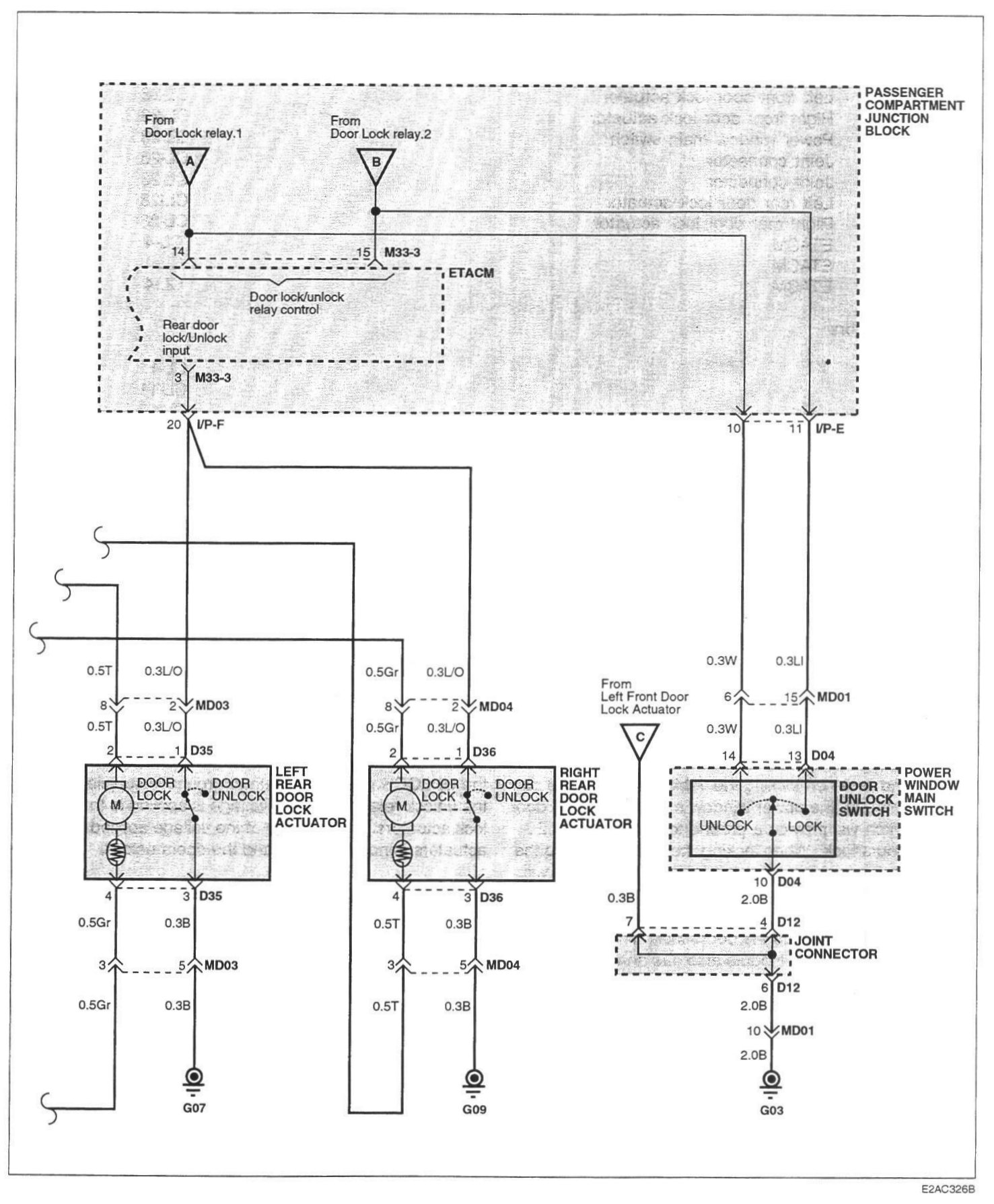

Image SD-143 Power Door Locks (2):
