Home >> Hyundai >> 2003 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> C Connectors (In Control Harness) >> C74-3 To C89

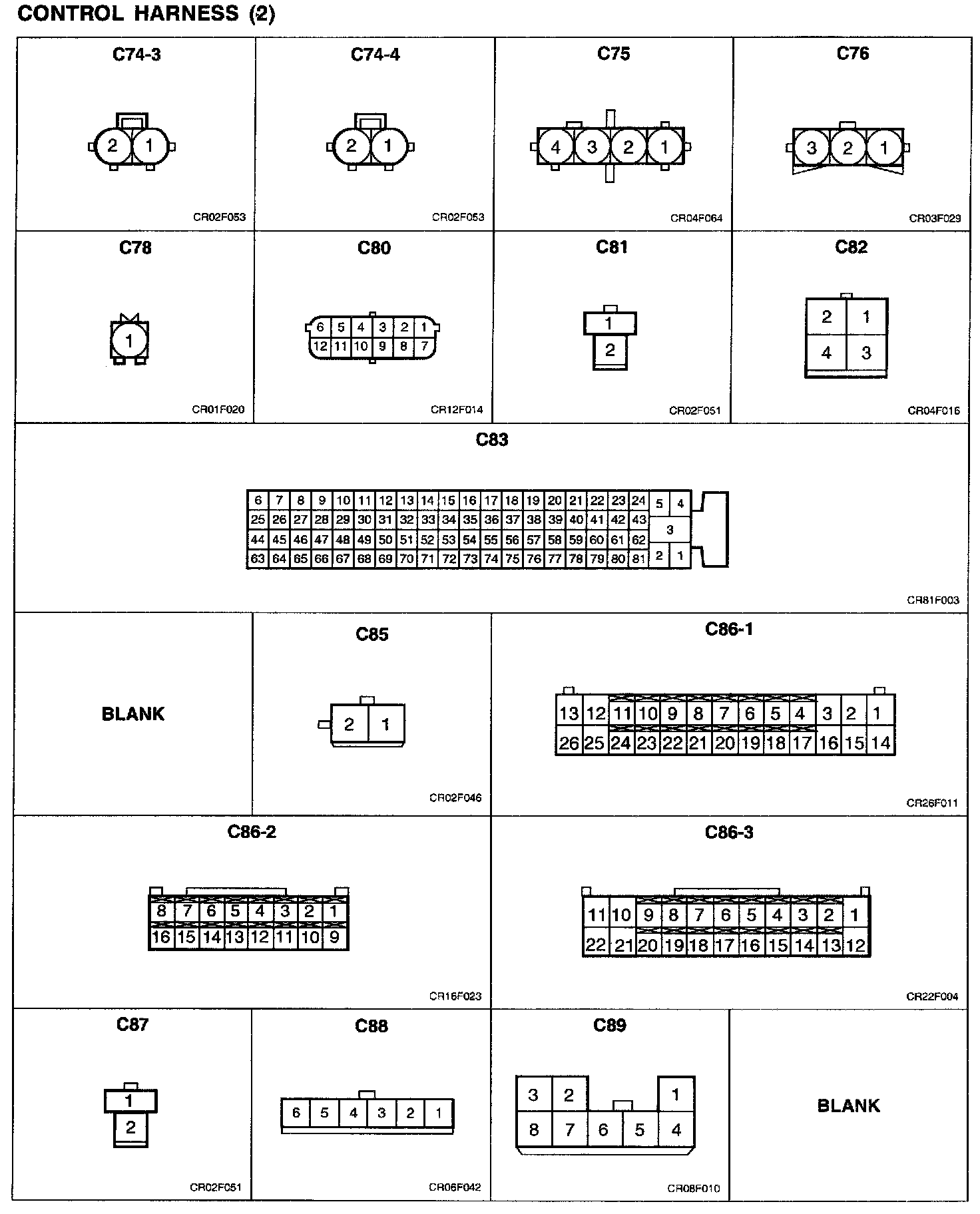

C74-3 To C89

C74-3 To C89:
