Front Steering Knuckle: Service and Repair

FRONT HUB/KNUCKLE





COMPONENTS

REMOVAL
1. Remove the front wheel.

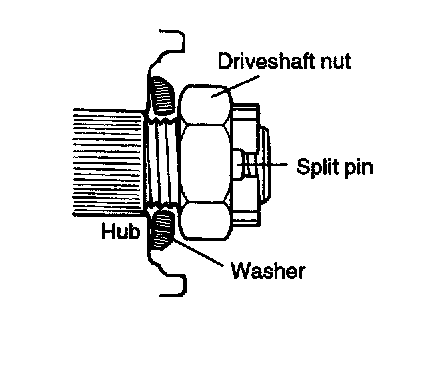

2. Remove the split pin, driveshaft nut and the washer from the front hub.

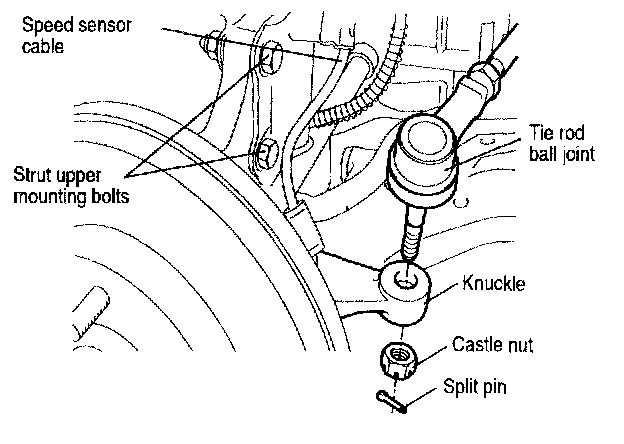

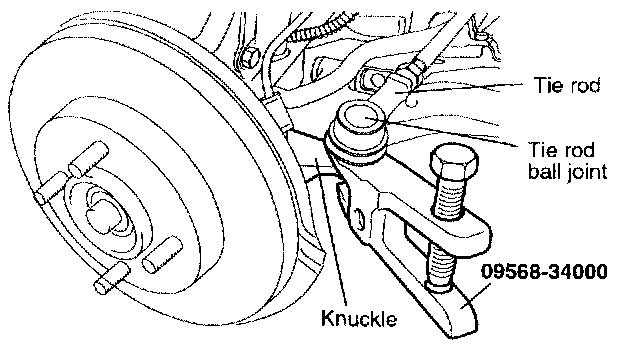

3. Disconnect the tie rod end ball joint from the knuckle by using the Special Tool (09568 - 34000).

NOTE: Be sure to tie the special tool (09568 - 34000) to the near part with cord not to fall.

4. Remove the front caliper assembly from the knuckle and suspend it with a wire.

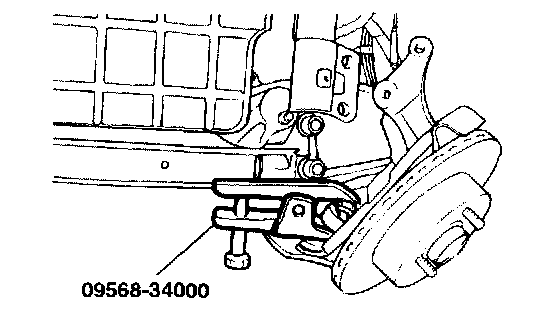

5. Disconnect the lower arm ball joint from the knuckle by using the Special Tool (09568 - 34000).
6. Remove the vehicle speed sensor from the knuckle

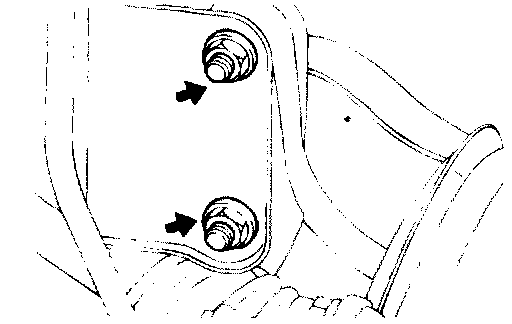

7. Disconnect the strut assembly from the knuckle.
8. Disconnect the driveshaft from the hub.
9. Remove the hub and knuckle as an assembly.

DISASSEMBLY

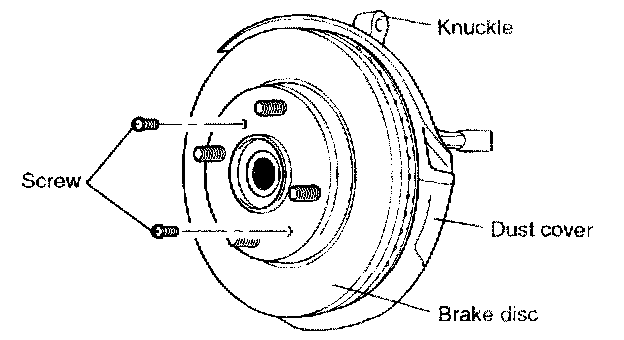

1. After removing the screws(2) mounting the brake disc, remove the brake disc from the hub.

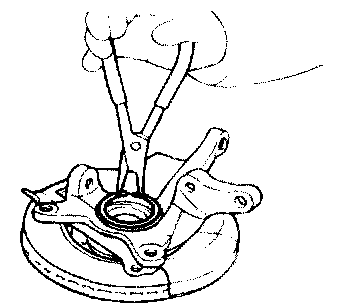

2. Remove the snap ring.

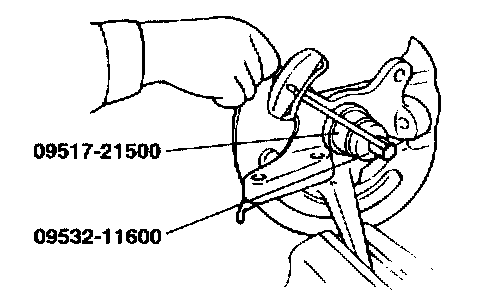

3. Install the Special Tools as illustrated.
4. Remove the hub from the knuckle by turning the Special Tool.
5. Remove the Special Tool and dust cover.

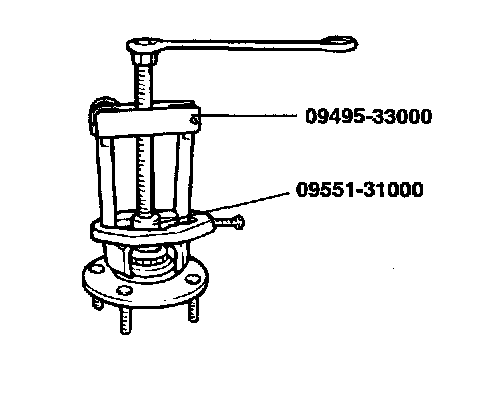

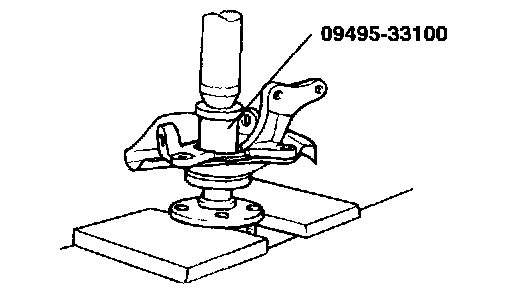

6. Remove the bearing inner race from the hub by using the Special Tool (09495-33000, 09551-31000).

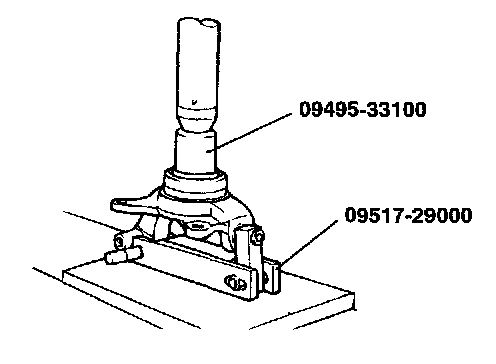

7. Using the Special Tool (09495 - 33100, 09517 - 29000), remove the wheel bearing outer race from the knuckle.

INSPECTION
1. Check the hub for cracks and the splines for wear.
2. Check the brake disc for scoring and damage.
3. Check the knuckle for cracks.
4. Check the bearing for cracks or damage.

REASSEMBLY
1. Apply multipurpose grease to the contacting surface of the knuckle hub and bearing thinly.

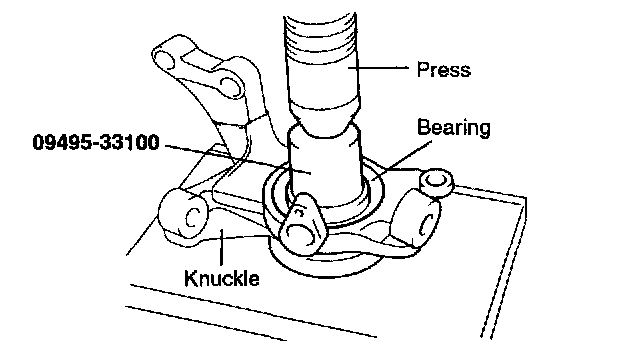

2. Using the Special Tool (09495-33100), press-in the bearing to the knuckle.

NOTE:
^ Press-in the outer race of the wheel bearing to prevent damage to the bearing assembly
^ When installing a bearing assembly, always use a new one.
^ The right and the left bearing must be made in the same company.

3. Install the snap ring.
4. Install the dust cover.





5. Using the Special Tool (09495-33100), press-in the hub to the knuckle.

NOTE: Press-in the inner race of the wheel bearing to prevent damage to the bearing assembly.

6. Install the brake disc.

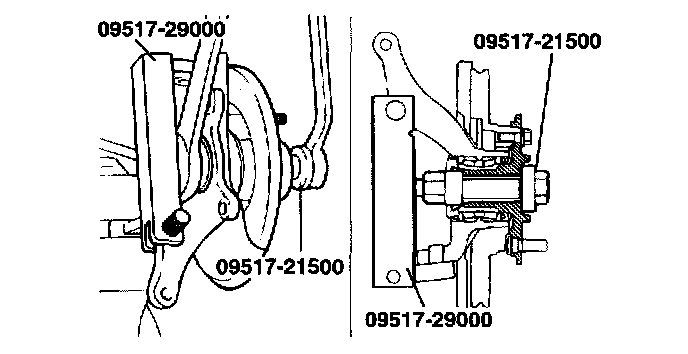

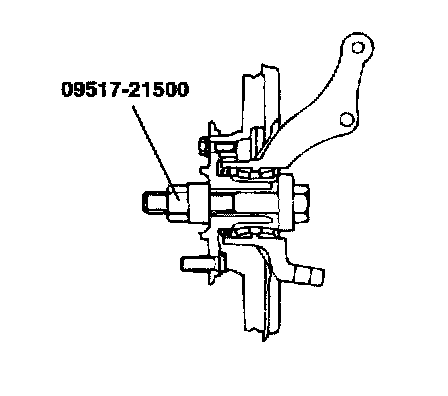

7. Tighten the hub and the knuckle to the specified torque by using the Special Tool (09517-21500).
Specified torque Nm (kg~cm, flab): 200 ± 260 (2000 ± 2600, 159 ± 192)
8. Rotate the hub several times to seat the bearing.

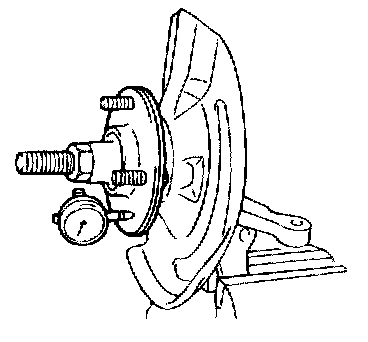

9. Measure the hub bearing starting torque.
Hub bearing starting torque [Limit]: 1.8 Nm (18 kg cm, 16 inch lbs.) or less





10. If the starting torque is O Nm (O inch lbs.), measure the hub bearing axial play.
11. If the hub axial play exceeds the limit while the nut is tightened to 200 - 260 Nm (2000 - 2600 kgf-cm, 159 - 192 ft. lbs.), the bearing, hub and knuckle are not installed correctly. Repeat the disassembly and assembly procedure.
Hub bearing axial play [Limit]: 0.008 mm (0.0003 inch) or less
12. Remove the Special Tool (09517-21500).
13. Fix the brake disc with the mounting screws.

INSTALLATION





1. Installation is in the reverse order of removal.

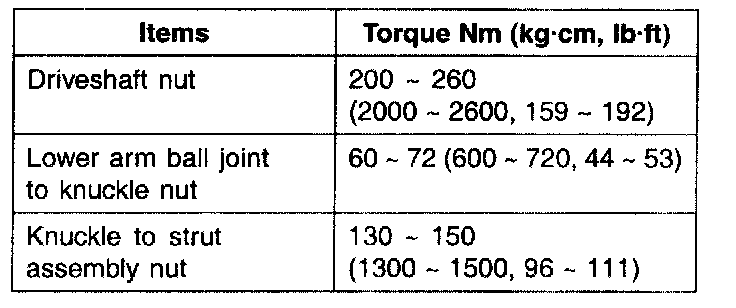

NOTE: Tighten the components below to the specified torque as follows:

2. Install the strut assembly and the driveshaft in the knuckle.
3. Connect the wheel speed sensor.
4. Install the caliper assembly in the hub and knuckle assembly which the brake disc is already installed
5. Tighten the lower arm ball joint nut.
6. Tighten the tie rod end ball joint nut and insert the split pin.
7. Insert the washer and tighten the castle nut.





8. Insert the split pin.
9. Install the wheel and tire and tighten the wheel nuts.
