Ignition System - Engine Wiring/Coil Connector Revision
Group: BODY ELECTRICALNumber: 03-90-014
Date: MAY, 2003
Model: 2003 ELANTRA
Subject:
2003 ELANTRA 2.0L ENGINE MFI CONTROL SYSTEM ETM REVISION
(IGNITION COIL CONNECTOR CHANGE)
DESCRIPTION:

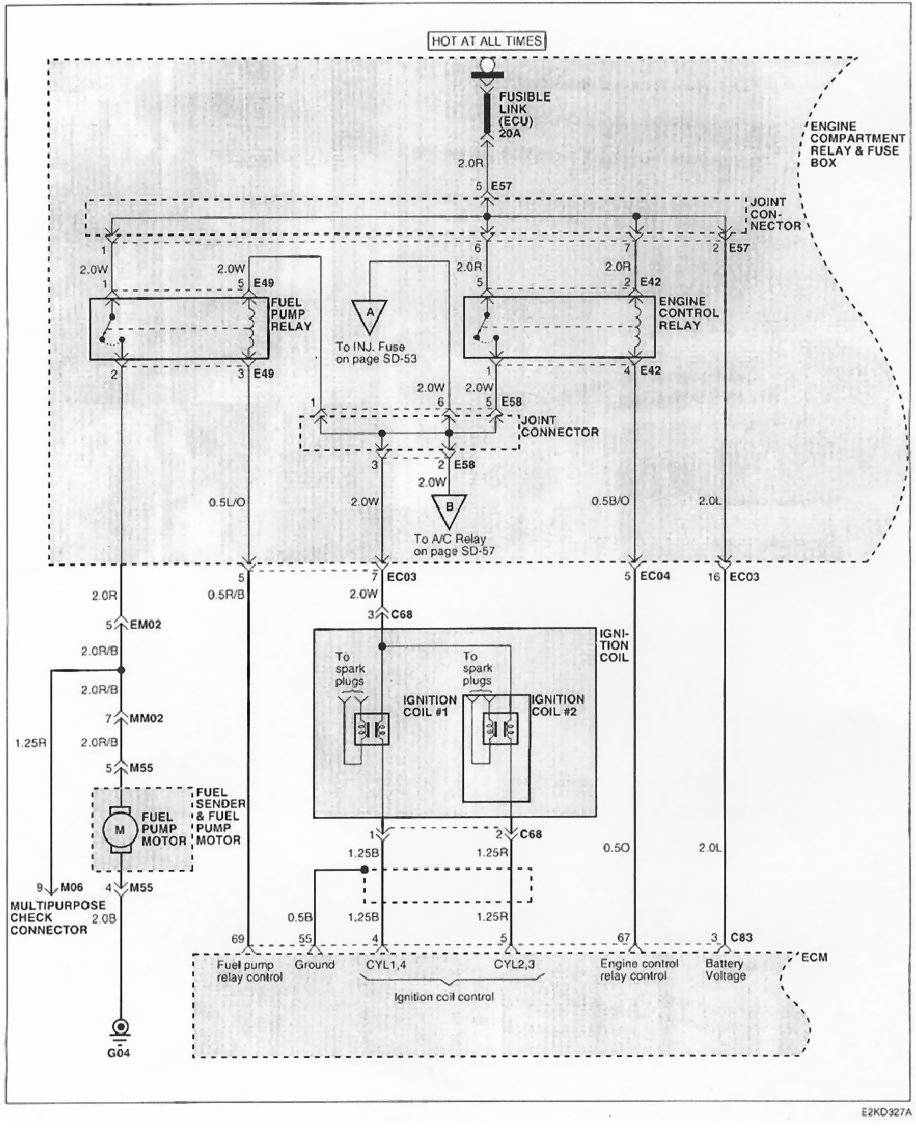

Shown is a revised page for the 2003 MY ELANTRA Electrical Troubleshooting Manual (ETM) that has been updated for the following reason:
The engine wiring and the ignition coil connector have been changed to accommodate the Continuously Variable Valve Timing (CVVT) system that is installed on ELANTRA vehicles equipped with SULEV engines. (Refer to emission label under hood).
Please record this TSB number at the bottom of the appropriate ETM page for future reference.

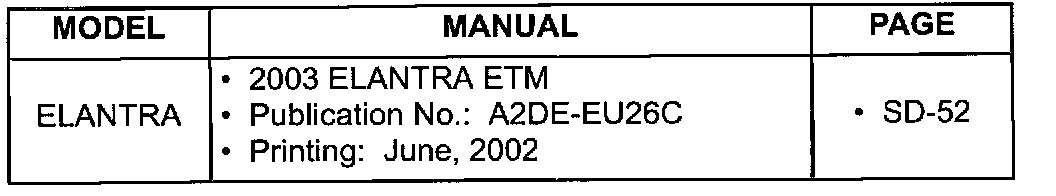

AFFECTED MANUAL AND PAGE
VEHICLES AFFECTED:
^ Model: 2003 ELANTRA
^ Affected vehicle production date range: August 16, 2002 ~
