Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2005
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Air Bag
Air Bag
Airbag Squib Resistance Limits
SRE - SMART : Dual Stage Airbag

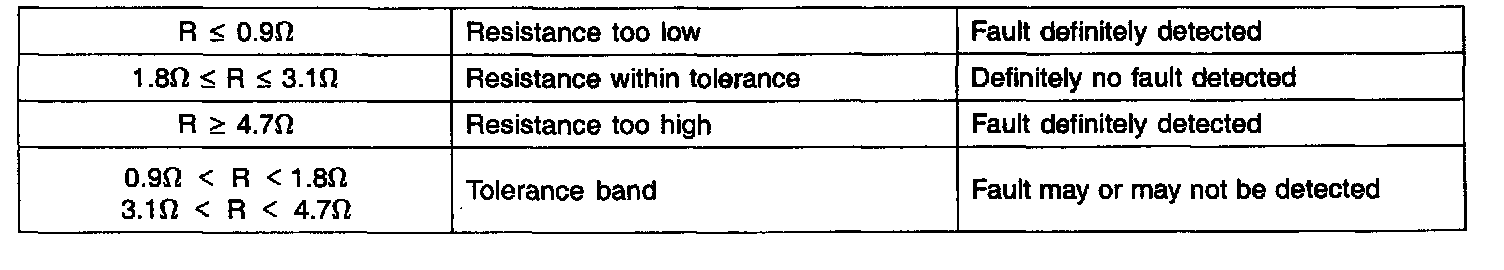

DAB, DAB (2nd Stage):

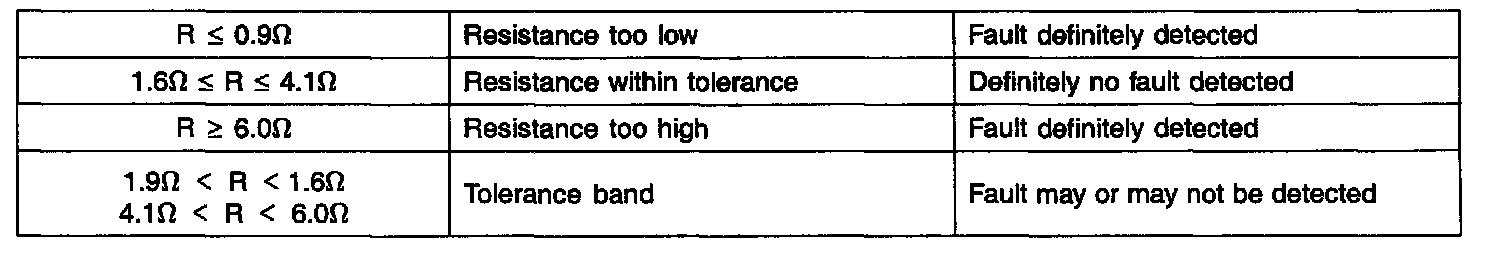

PAB, SAB, PAB (2nd Stage):

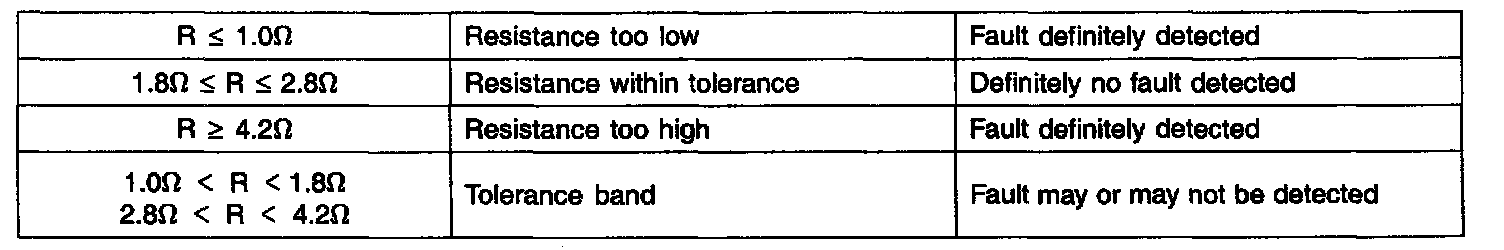

BPT:
