Knock Sensor: Testing and Inspection

KNOCK SENSOR (KS)




DESCRIPTION
The Knock Sensor is attached to the cylinder block and senses engine knocking. The sensor contains a piezoelectric element that converts vibration (or noise) into voltage signal and sends this signal to ECM. ECM uses this signal to suppress knocking by retarding ignition timing.

Circuit Diagram:

TERMINAL AND CONNECTOR INSPECTION
Refer to DTC P0325 troubleshooting procedure.

SENSOR INSPECTION

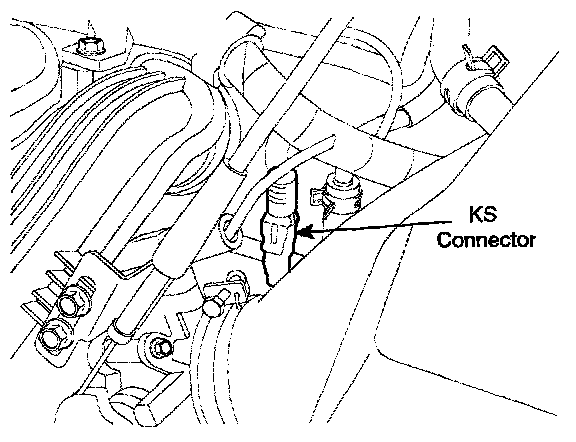

1. Disconnect knock sensor connector.
2. Measure resistance between the terminals 1 and 2 of knock sensor connector.

Specification Approx. 5 M ohms at 20 degrees C(68 degrees F)

3. Replace knock sensor if its resistance is not within the specification.

Tightening Torque : 190 - 240 kg.cm
