DIS Head Unit

Removal

DIS Head Unit
1. Disconnect the negative (-) battery terminal.

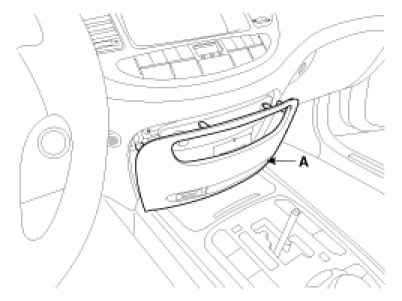

2. Remove the crash pad lower panel (A).

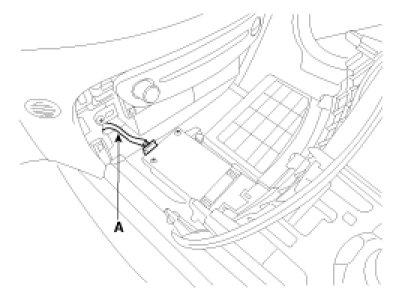

3. Remove the connector (A).

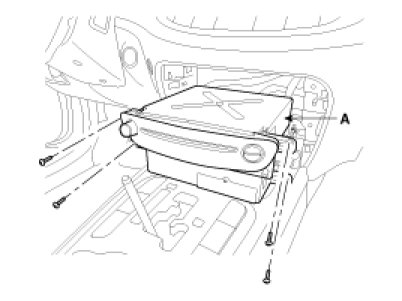

4. Remove the mounting screws and then remove the DIS head unit (A).

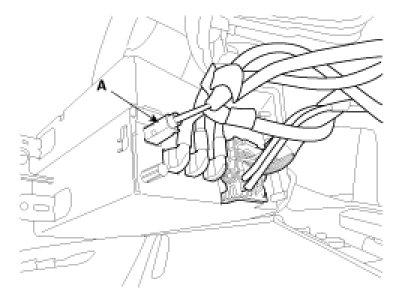

5. Remove the DIS head unit connectors (A).





CAUTION:
When the compact disc is not ejected, do not remove it forcibly.

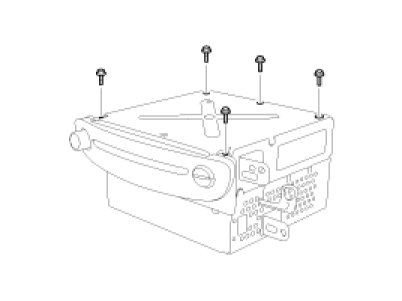

6. When separate the CD/DVD ROM drive, if necessary, remove the screws (5EA) on the head unit.

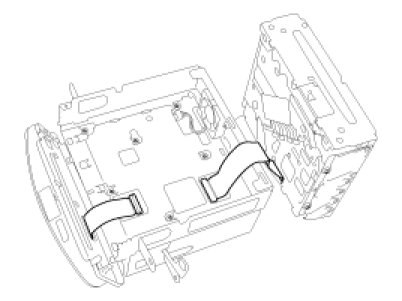

7. Remove the connector (A).

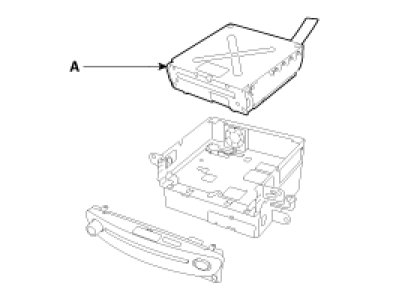

8. Remove the CD/DVD ROM drive (A).





CAUTION:
When the HDD(hard disc drive) is not ejected, do not remove it forcibly.

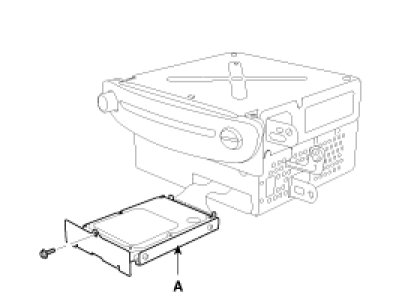

9. Replace the HDD (A) after removing the screw.






Installation

DIS Head Unit
1. Install the A/V & Navigation head unit after connecting the connectors.
2. Install the crash pad lower pannel.
3. Connect the negative (-) battery terminal.
