Camshaft Bearing Cap





Camshaft Bearing Cap

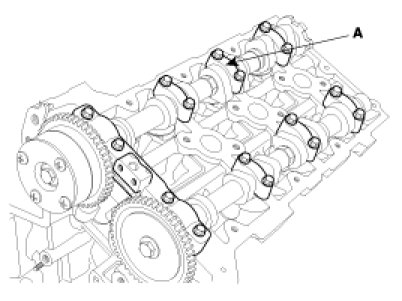

Install camshaft bearing caps.

Tightening torque 9.80 - 11.76 N.m(1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft)
