Repair Procedures

Inspection

1. Ignition "OFF".
2. Remove the in car sensor connector.

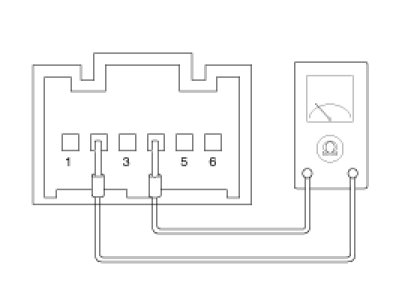

3. Blow air with changing temperature to the in car sensor air inlet. Measure sensor resistance between 2 and 4 terminals.
4. In car sensor is negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.

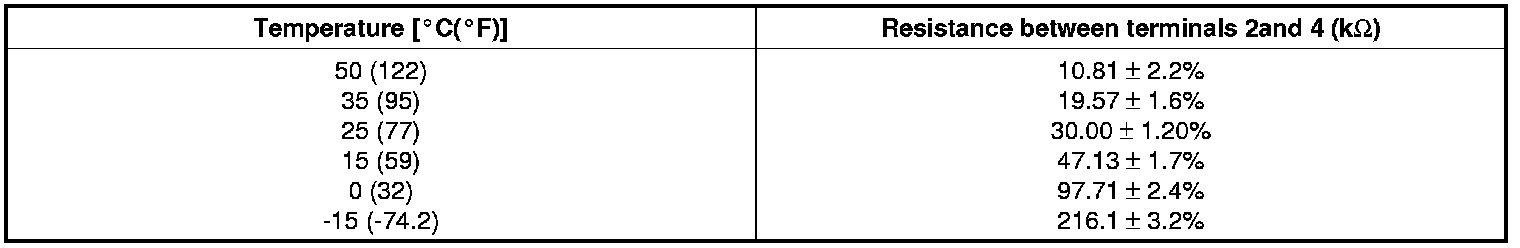

Specification






NOTE:
In car sensor is negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel. .

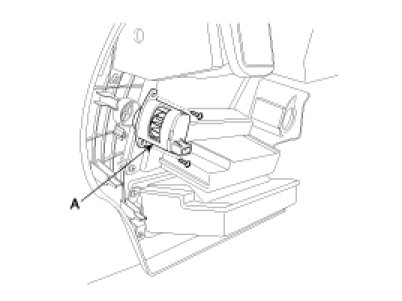

3. Loosen the mounting 2 screws and then remove the in-car sensor (A).




4. Installation is the reverse order of removal.
