Vacuum Hose Drawing

Vacuum Hose Routing:

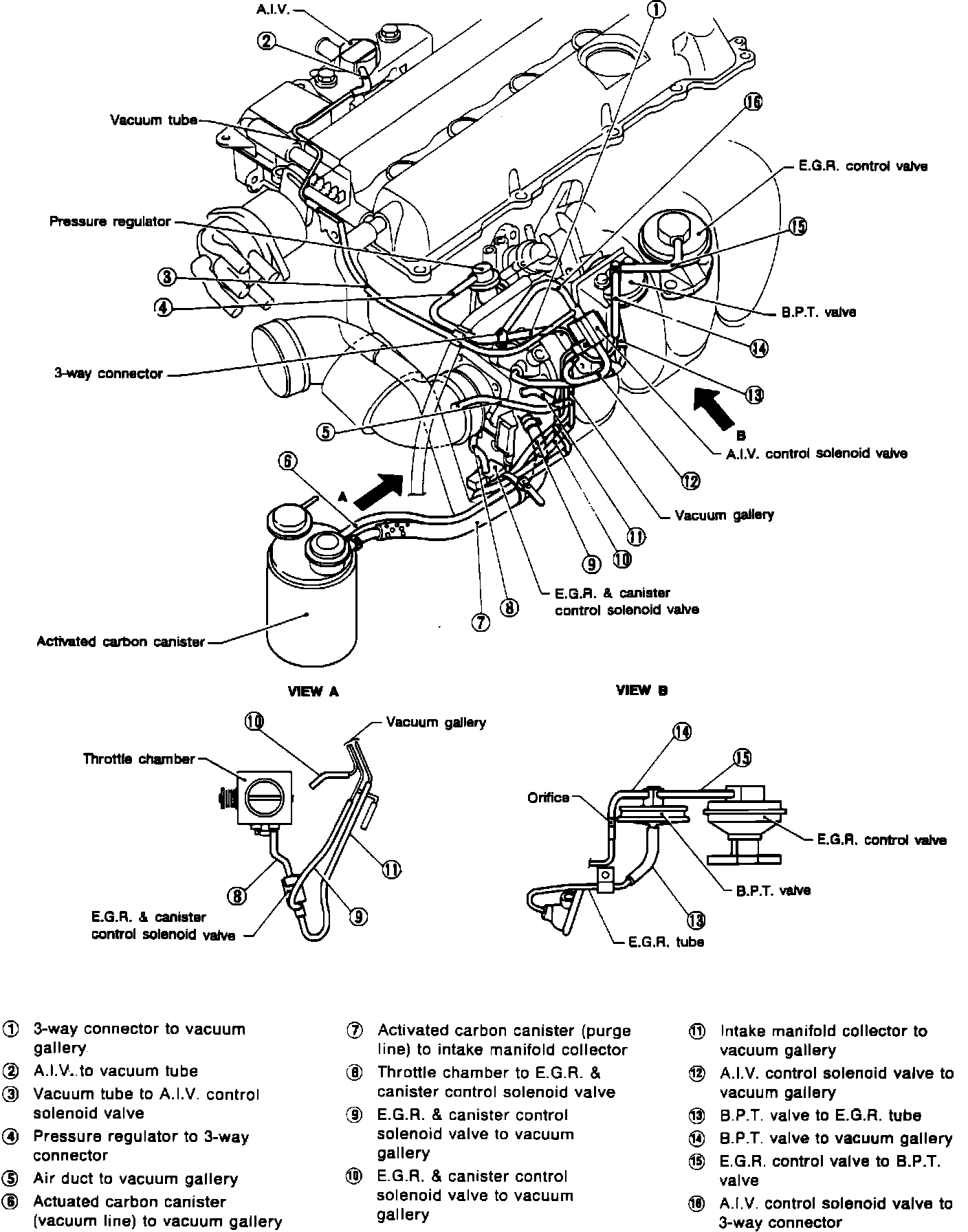

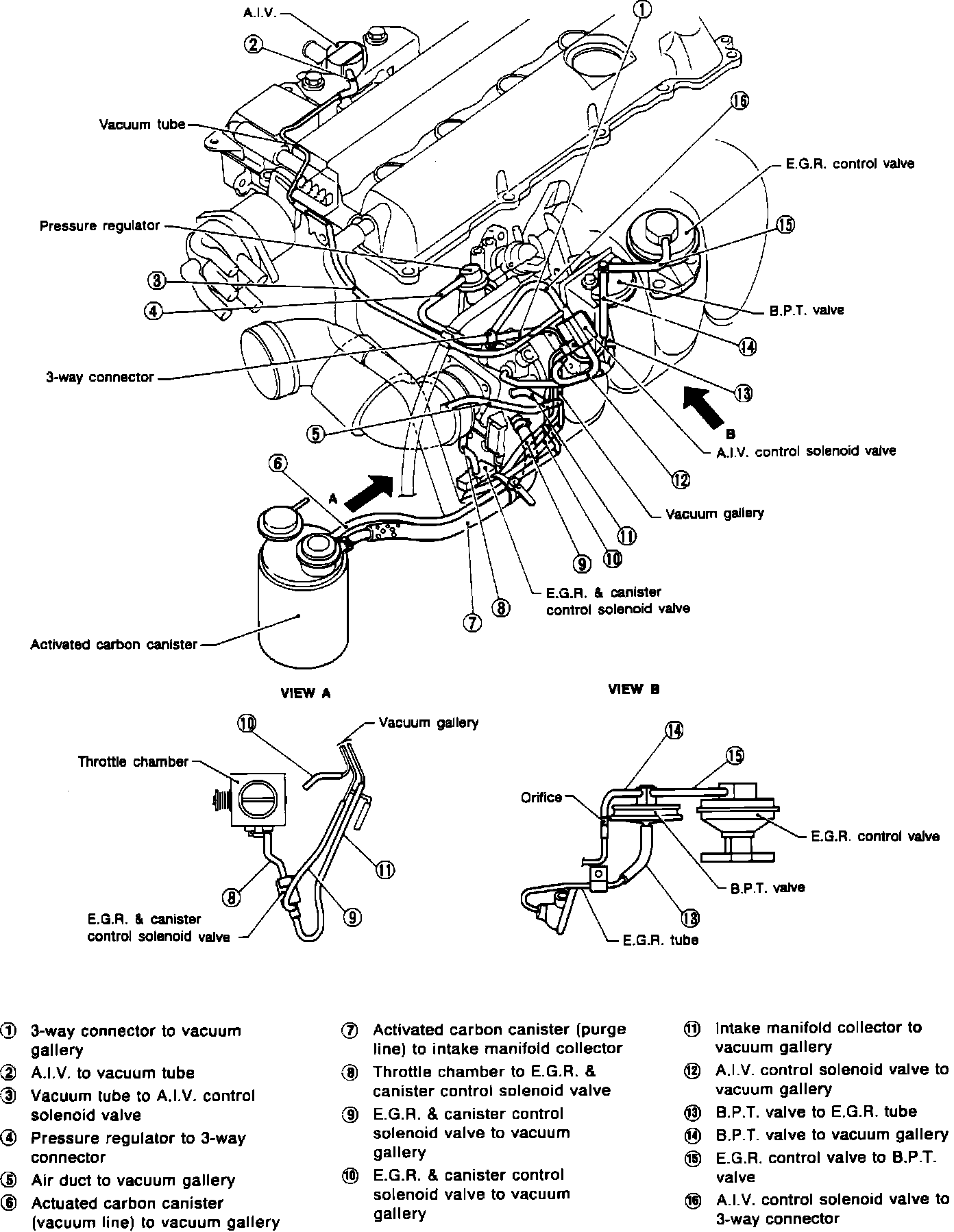

Fig. 3 Vacuum Hose Routing & Engine Compartment Reference Diagram:
