Diagnostic Procedure

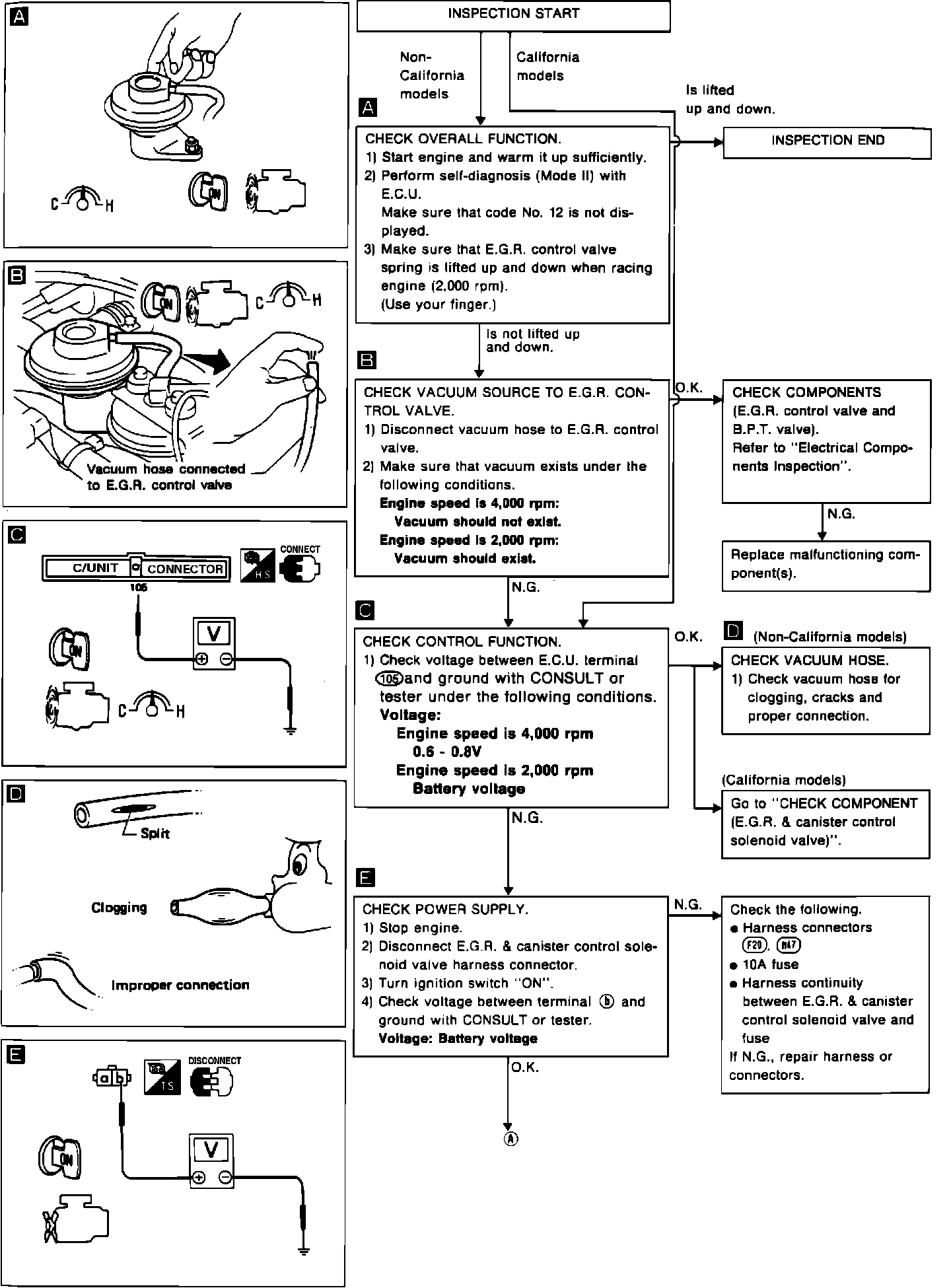

Fig. 87 Component Circuit Diagnosis, EGR Control (Part 1 Of 2):

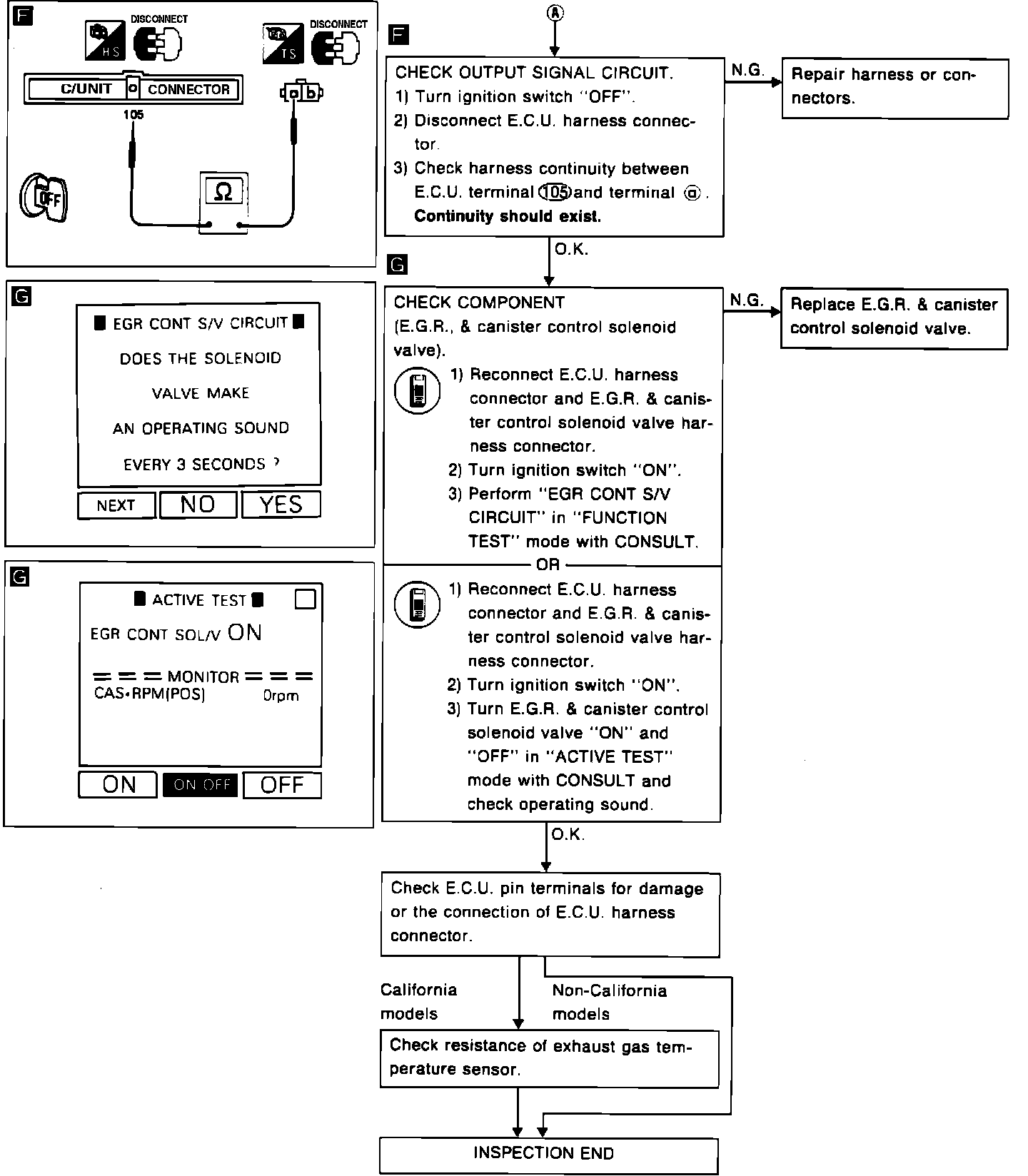

Fig. 87 Component Circuit Diagnosis, EGR Control (Part 2 Of 2):
