Emission Control Systems: Locations
ECCS Component Parts Location (Part 1 Of 2):
ECCS Component Parts Location (Part 2 Of 2):

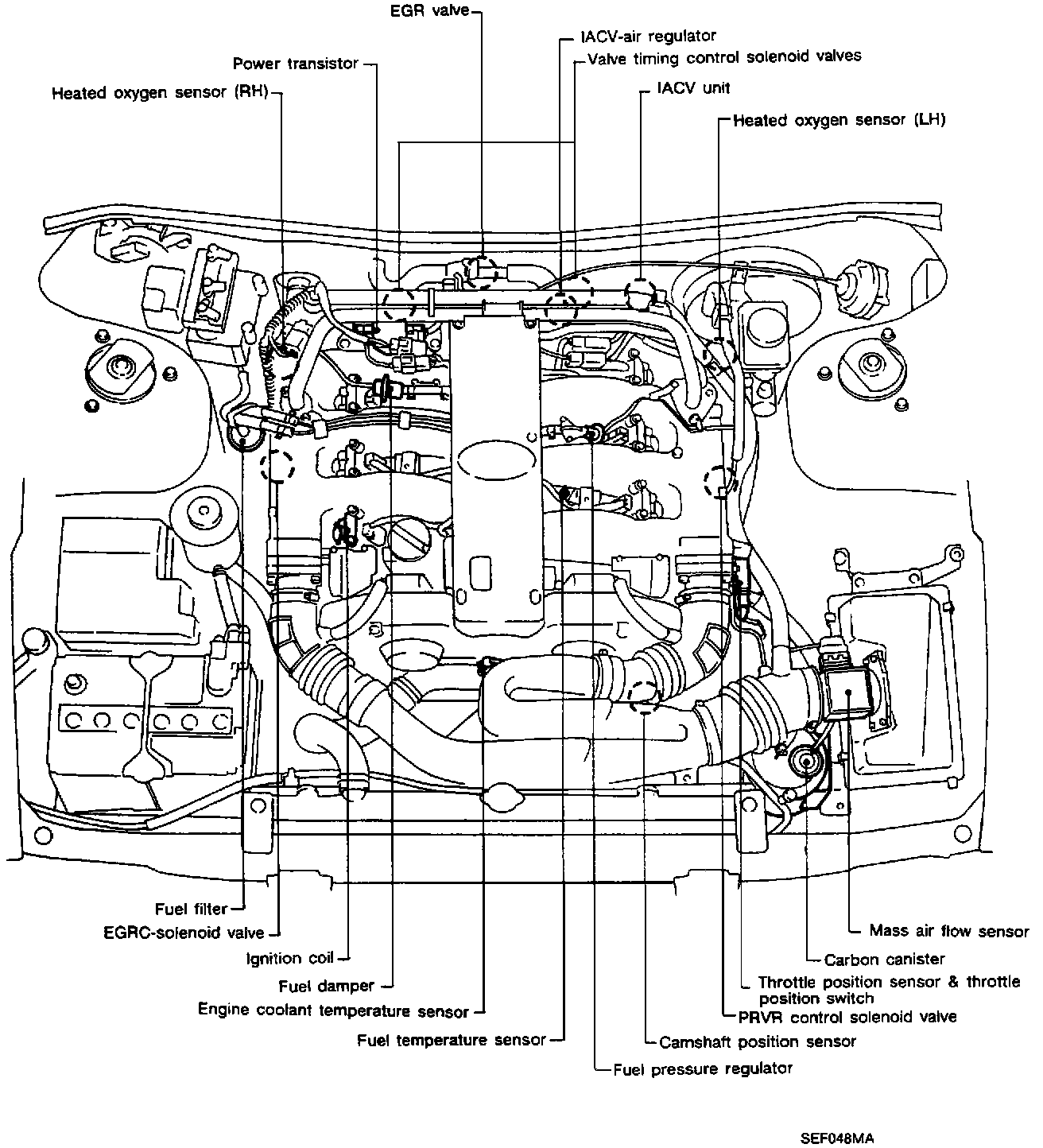

Underhood View Of Component Locations:
