Vacuum Pump: Testing and Inspection

ASCD Actuator/ASCD Pump:

1. Disconnect Automatic Speed Control Device (A.S.C.D.) actuator/A.S.C.D.pump connector.

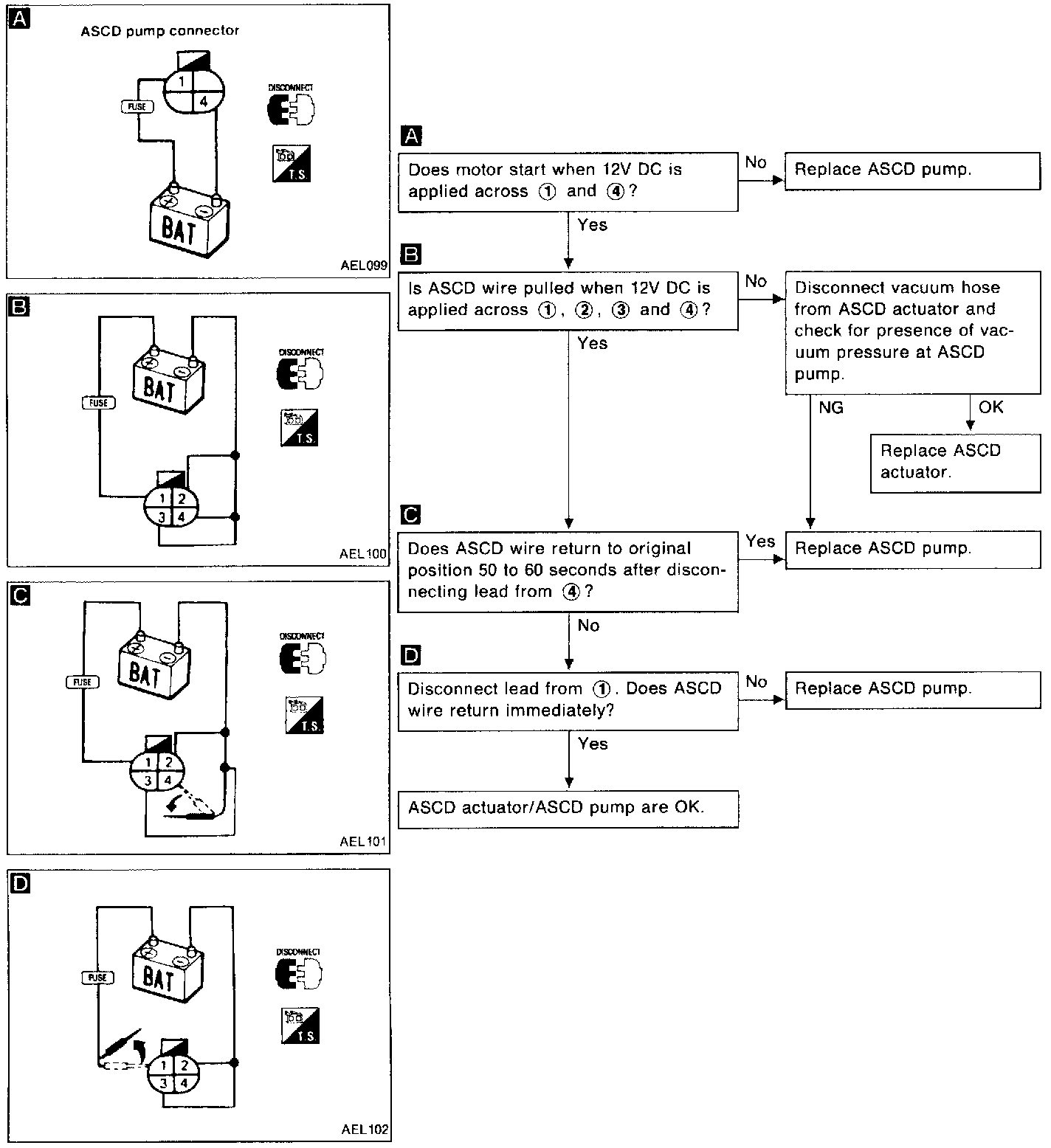

2. Check A.S.C.D. actuator/A.S.C.D. pump operations as shown.
