Traction Control Pump Relay
Traction Control Pump Relay

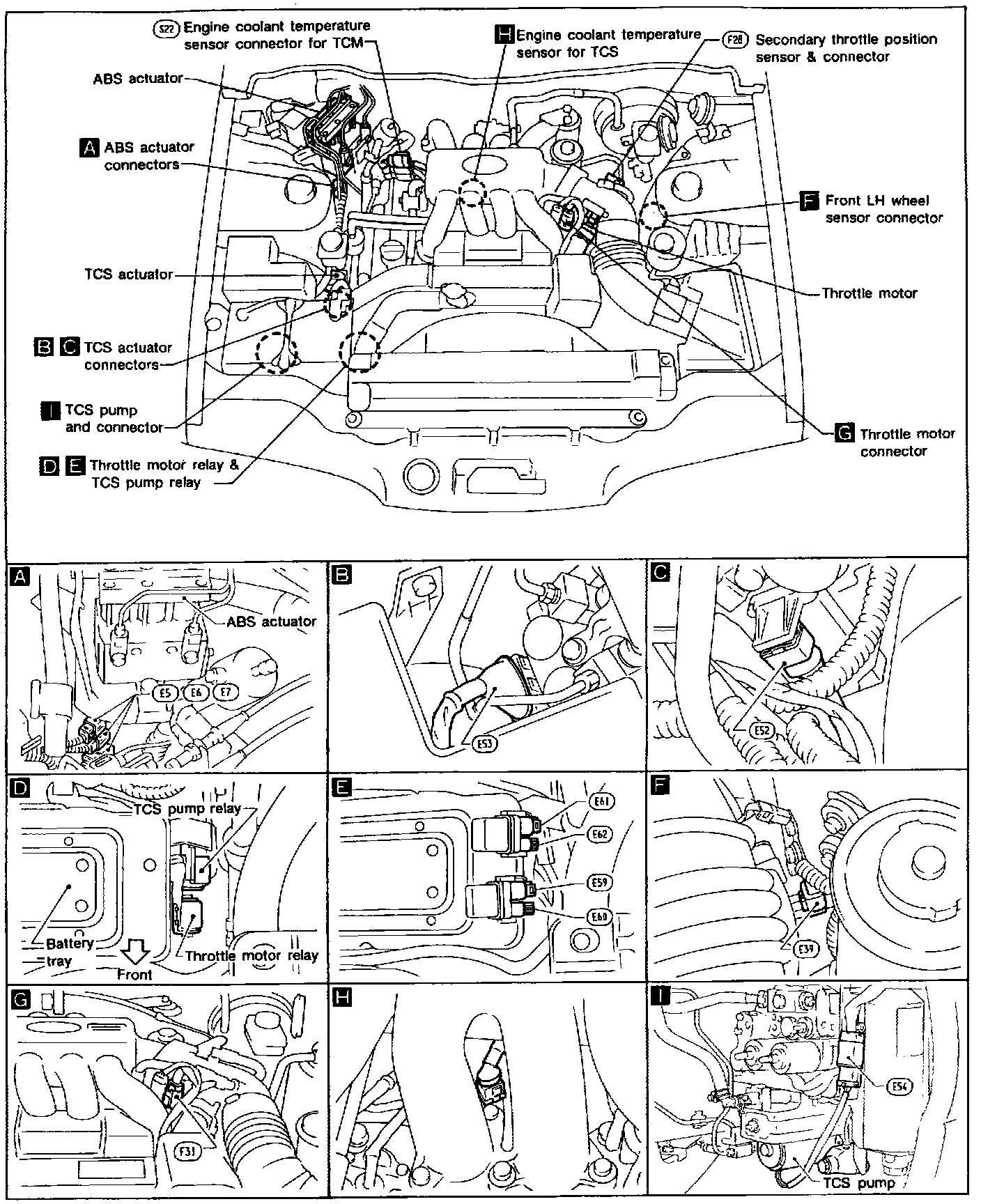

Traction Control System Component Parts And Connector Location-Engine Room:
