Rear Sunshade Unit
Rear Sunshade Unit

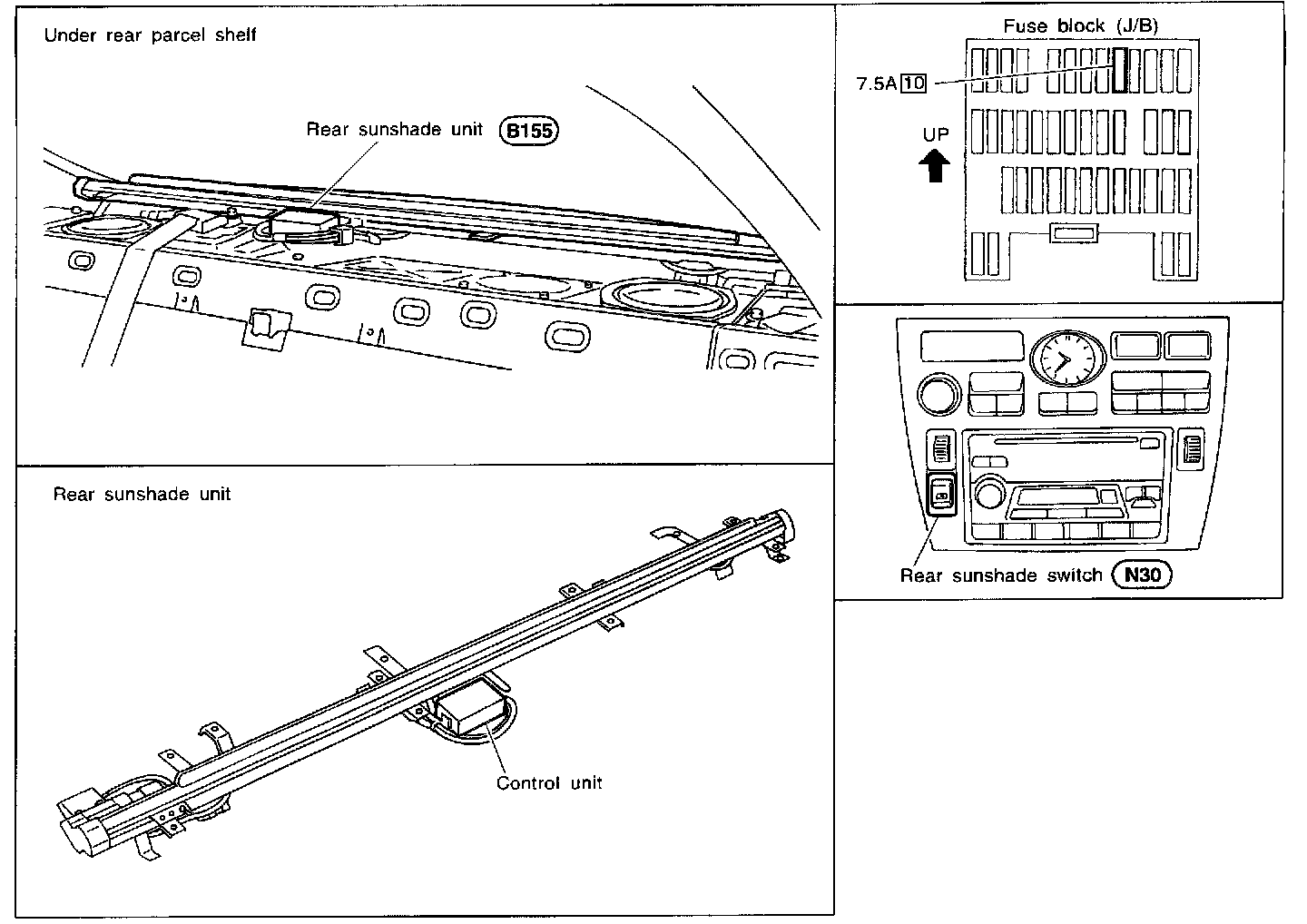

Component Parts and Harness Connector Location

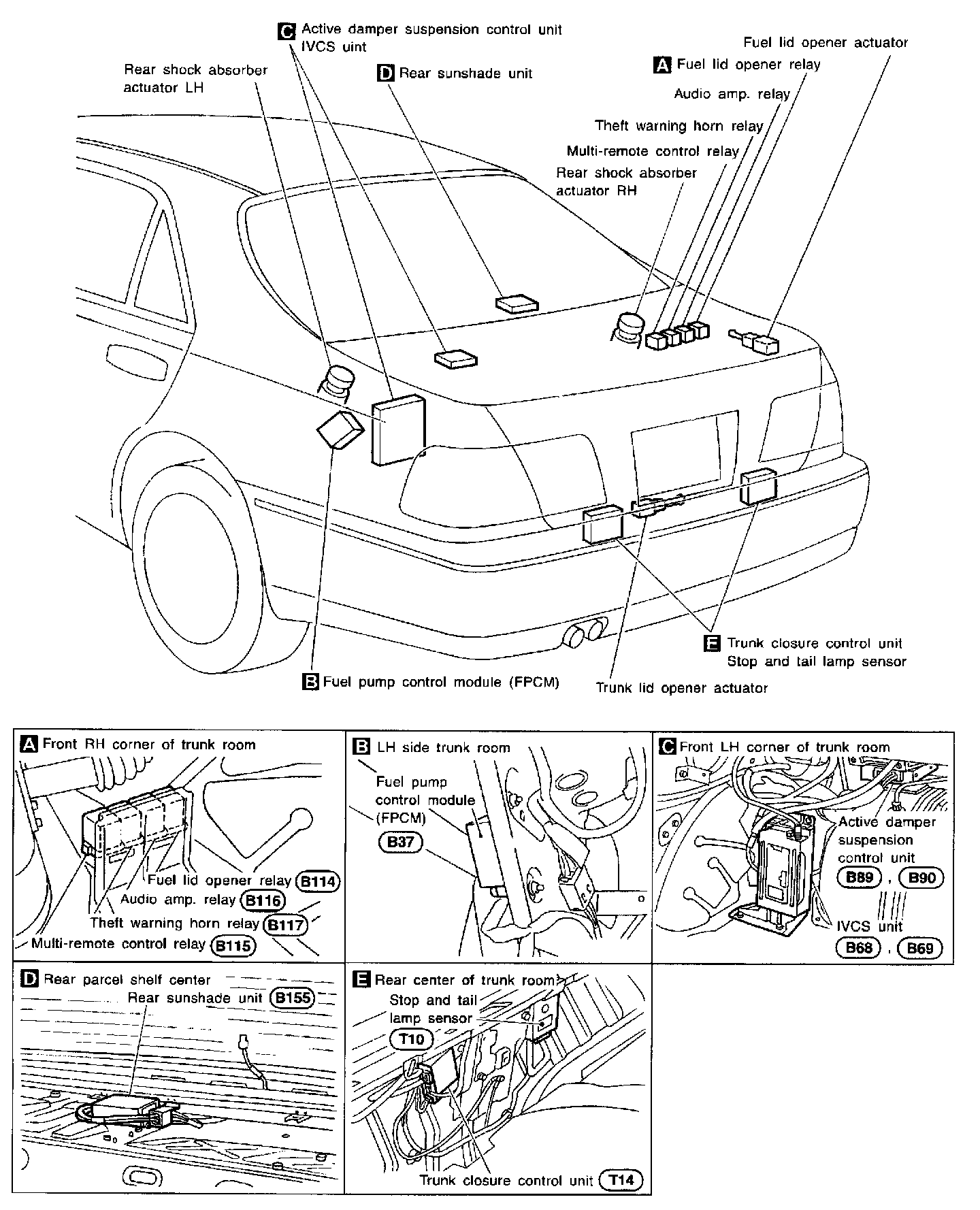

Luggage Compartment
