Differential Assembly
Differential Assembly
FINAL DRIVE

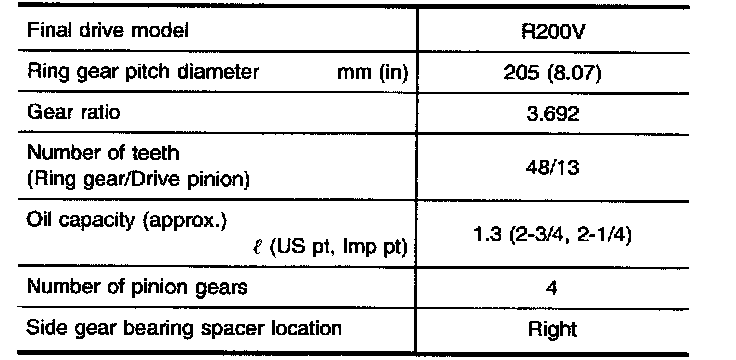

General Specifications

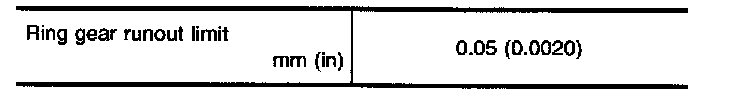

Ring gear runout

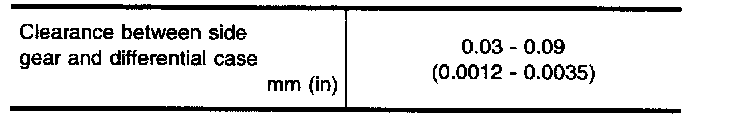

Side gear adjustment
