Camshaft - Sprocket Runout

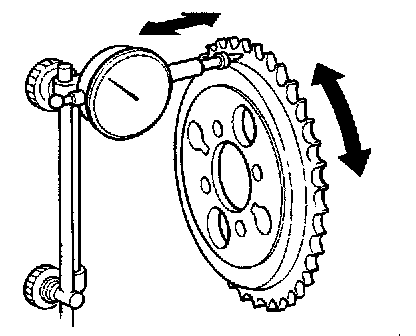

CAMSHAFT SPROCKET RUNOUT
Total indicator reading
Limit............................... 0.25 mm (0.0098 inch)
