Traction Control Switch: Service and Repair

REMOVAL
1. Remove the instrument lower driver panel.

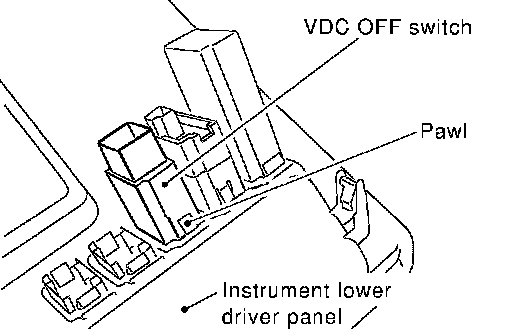

2. Push the VDC OFF switch's pawls and remove the switch from the instrument lower driver panel.

INSTALLATION
Installation is the reverse order of removal.
