EL-CHIME
EL-CHIME

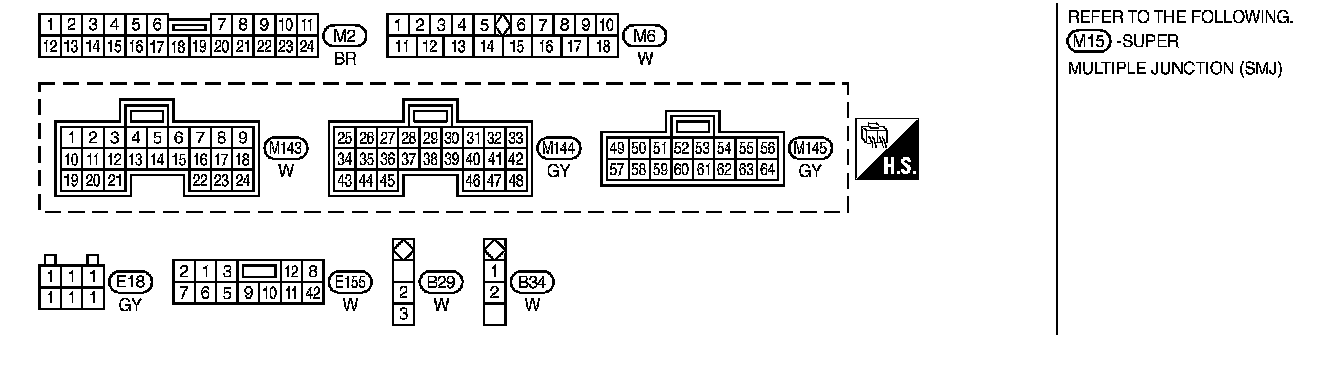

EL-CHIME-01 Connectors View:

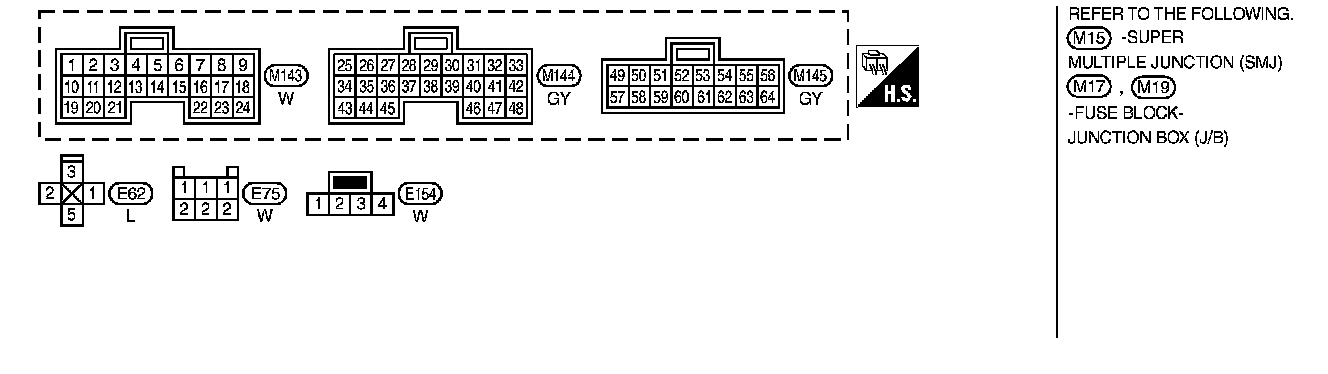

EL-CHIME-02 Connectors View:

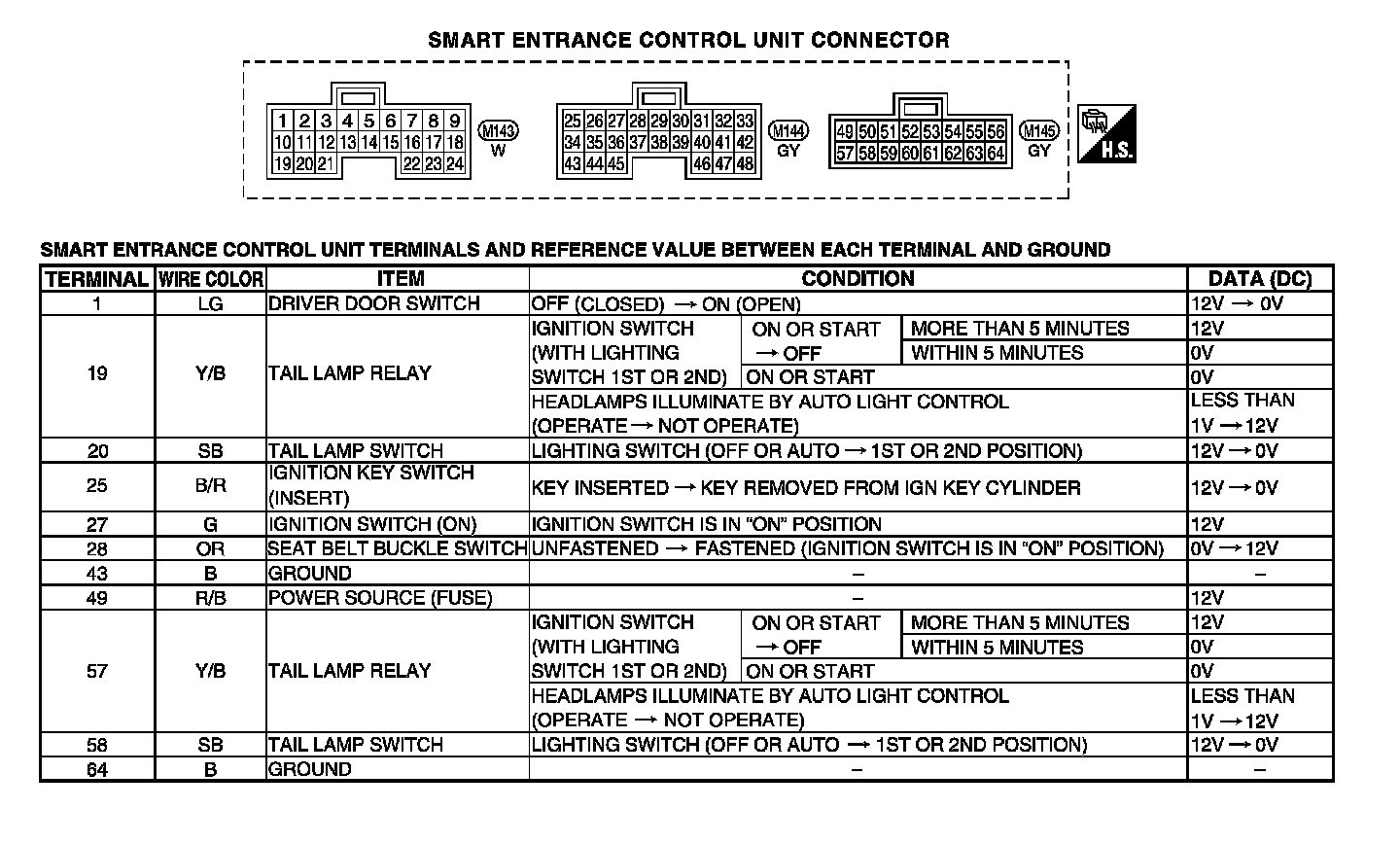

Smart Entrance Control Unit Connector:
