EL-DTRL
EL-DTRL

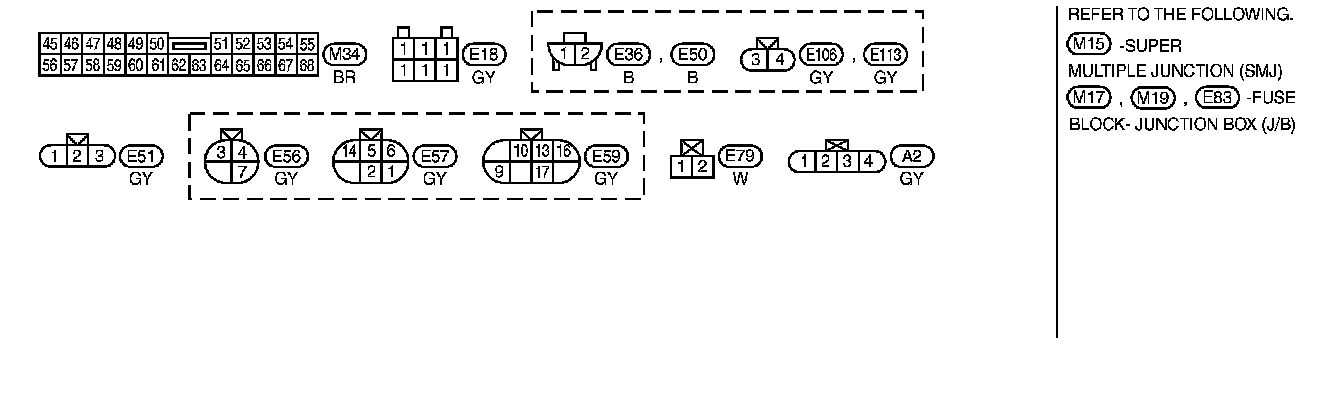

EL-DTRL-01 Connectors View:

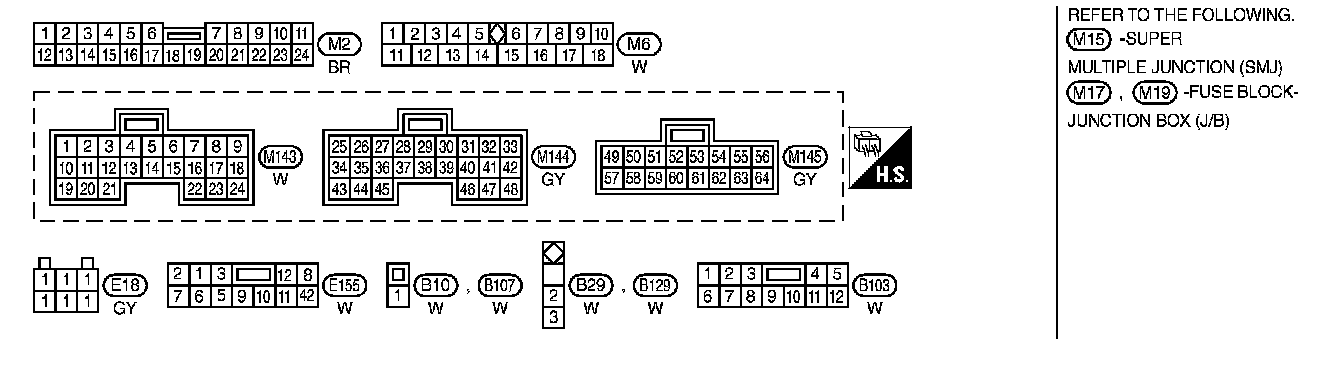

EL-DTRL-02 Connectors View:

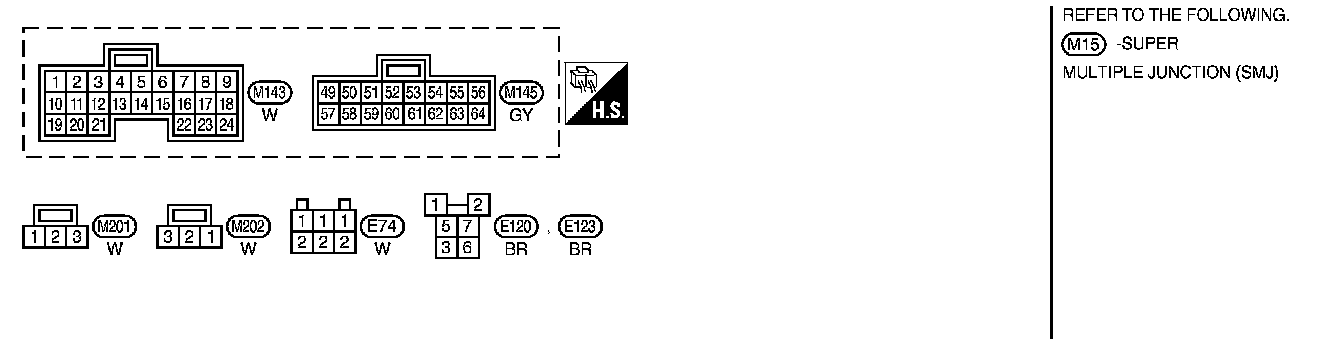

EL-DTRL-03 Connectors View:

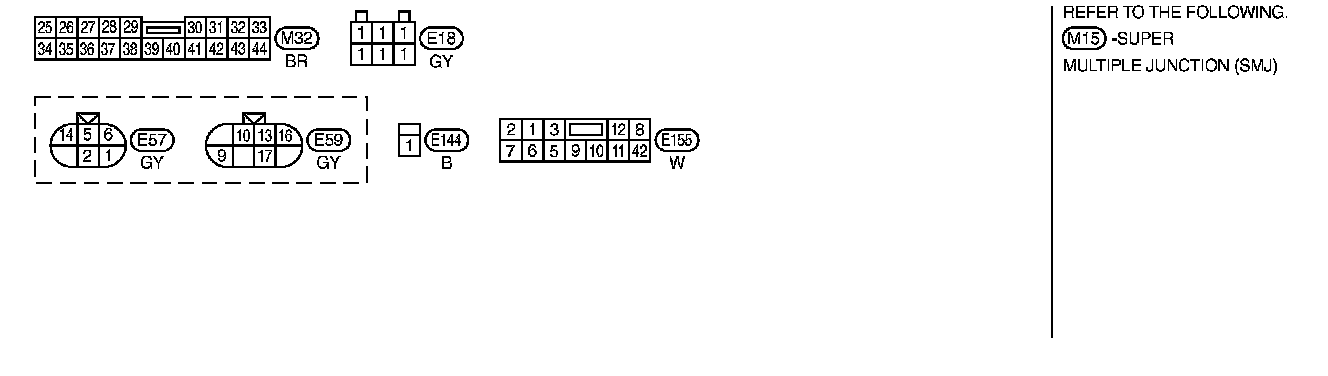

EL-DTRL-04 Connectors View:
