Operation CHARM
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2002
>>
I35 V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
System Lettered Connector Views
>>
EL - Connector Views
>>
EL-H/STRG
EL-H/STRG

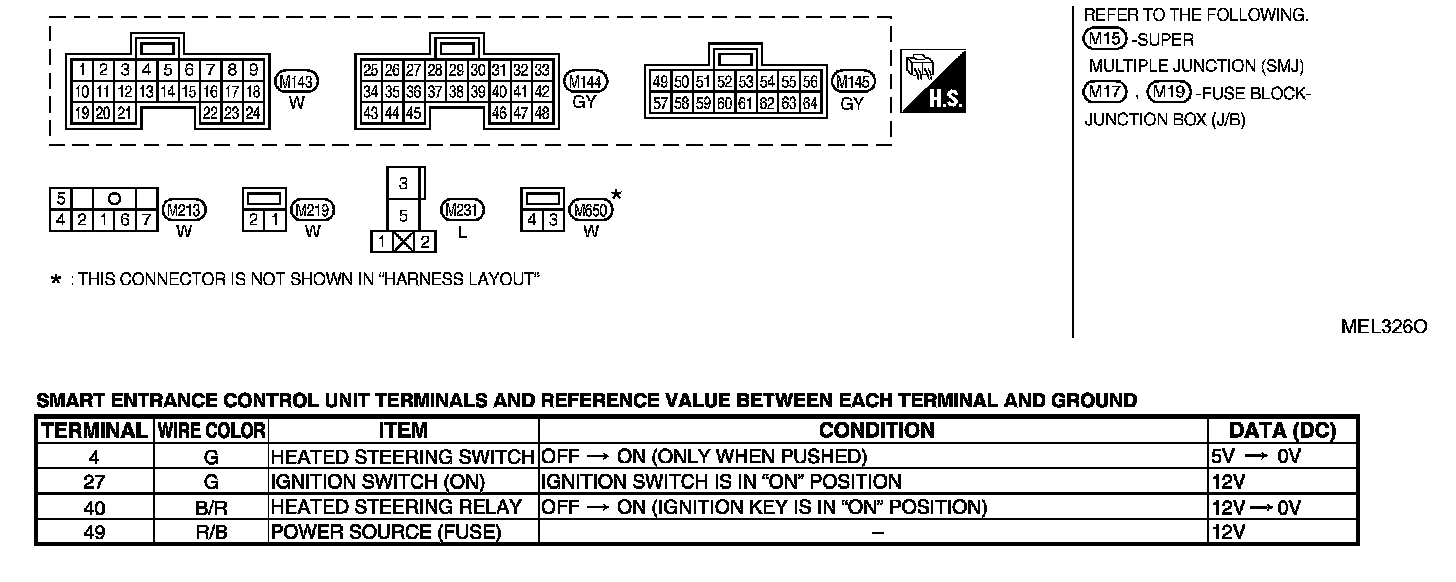

EL-H/STRG-01 Connector Views:
