EL-INT/L
EL-INT/L

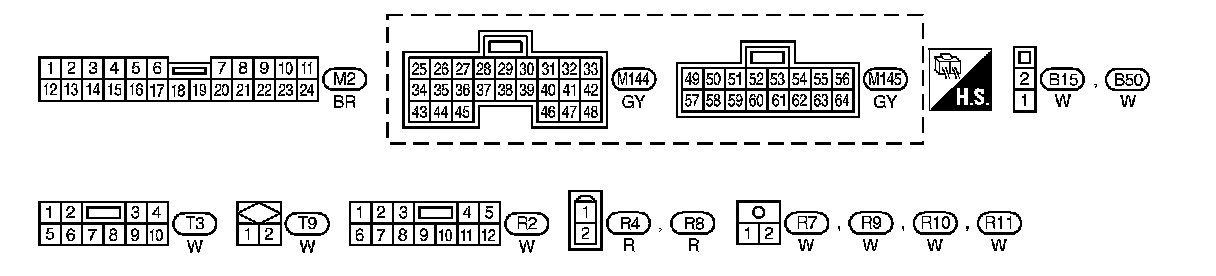

EL-INT/L-01 Connectors View:

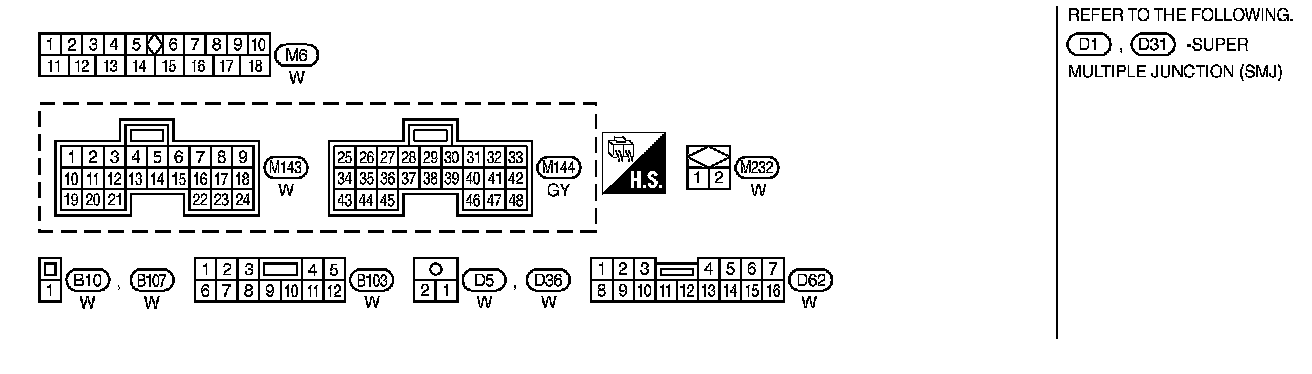

EL-INT/L-02 Connectors View:

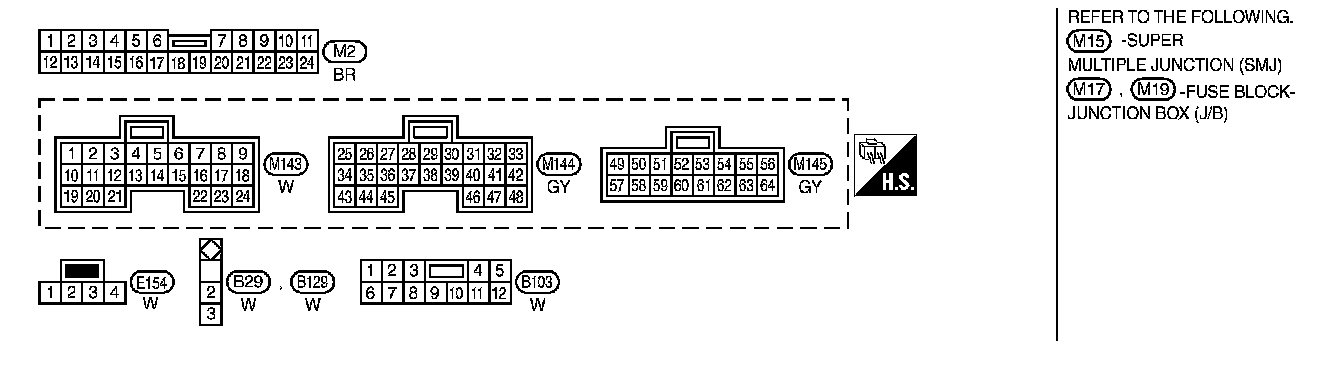

EL-INT/L-03 Connectors View:

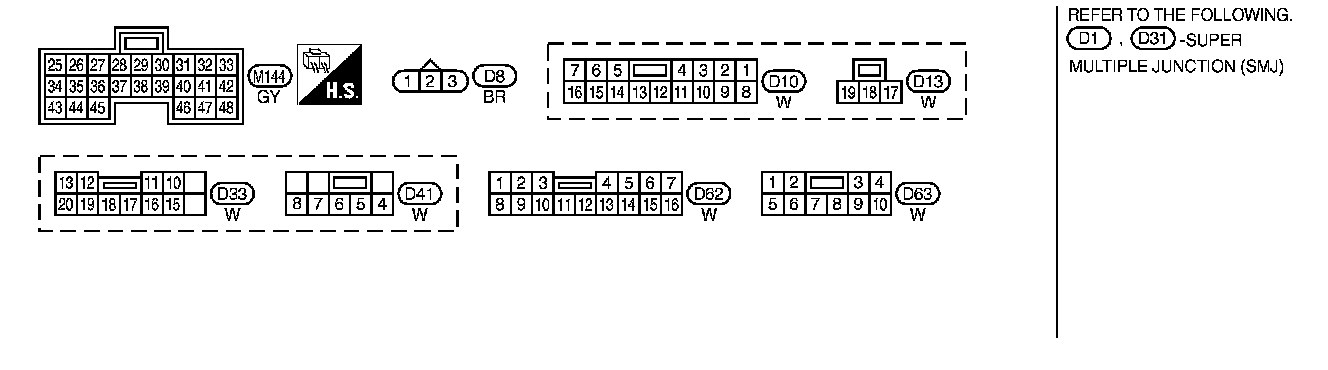

EL-INT/L-04 Connectors View:

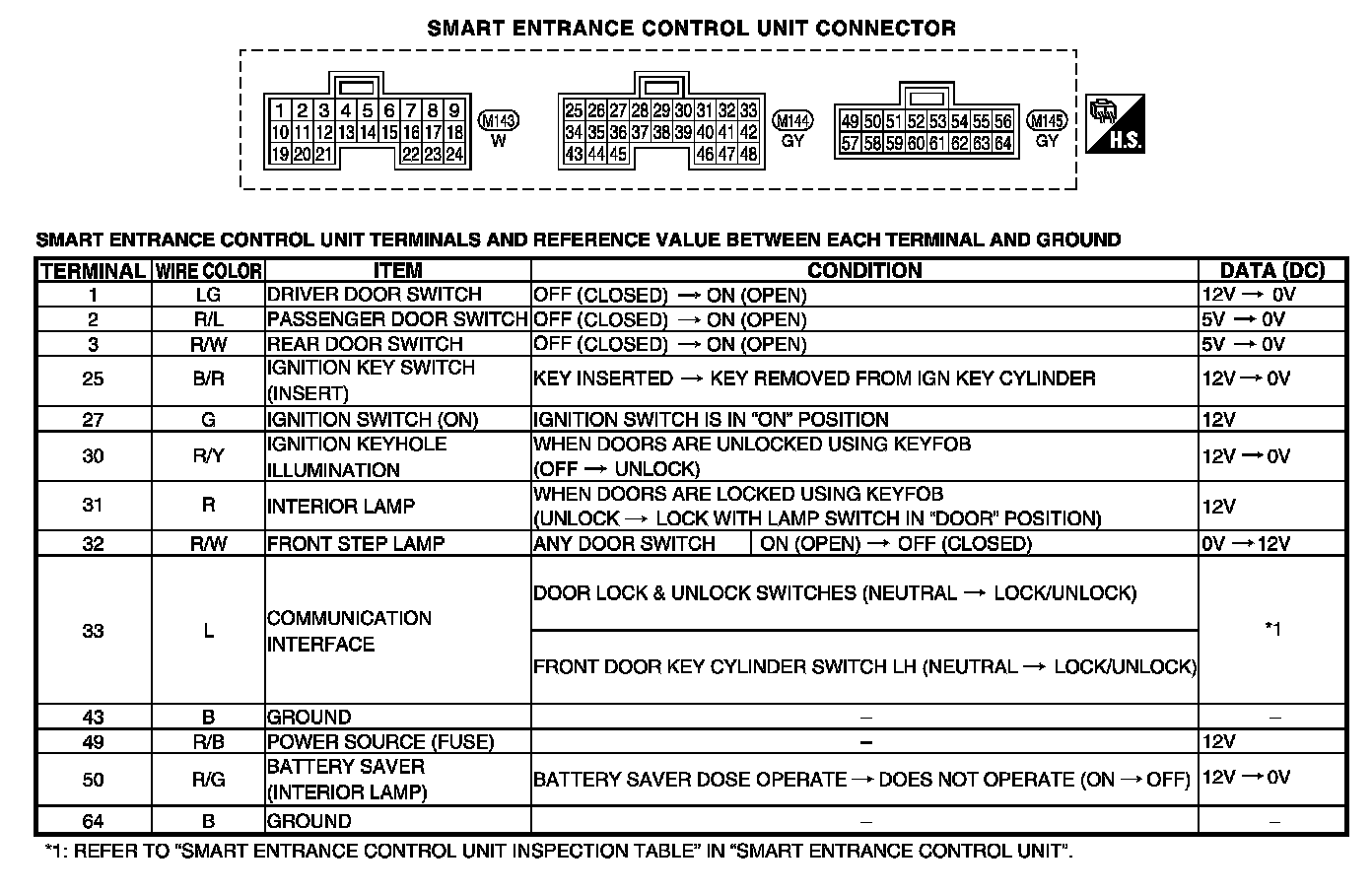

Smart Entrance Control Unit Connector:
