EL-WARN
EL-WARN

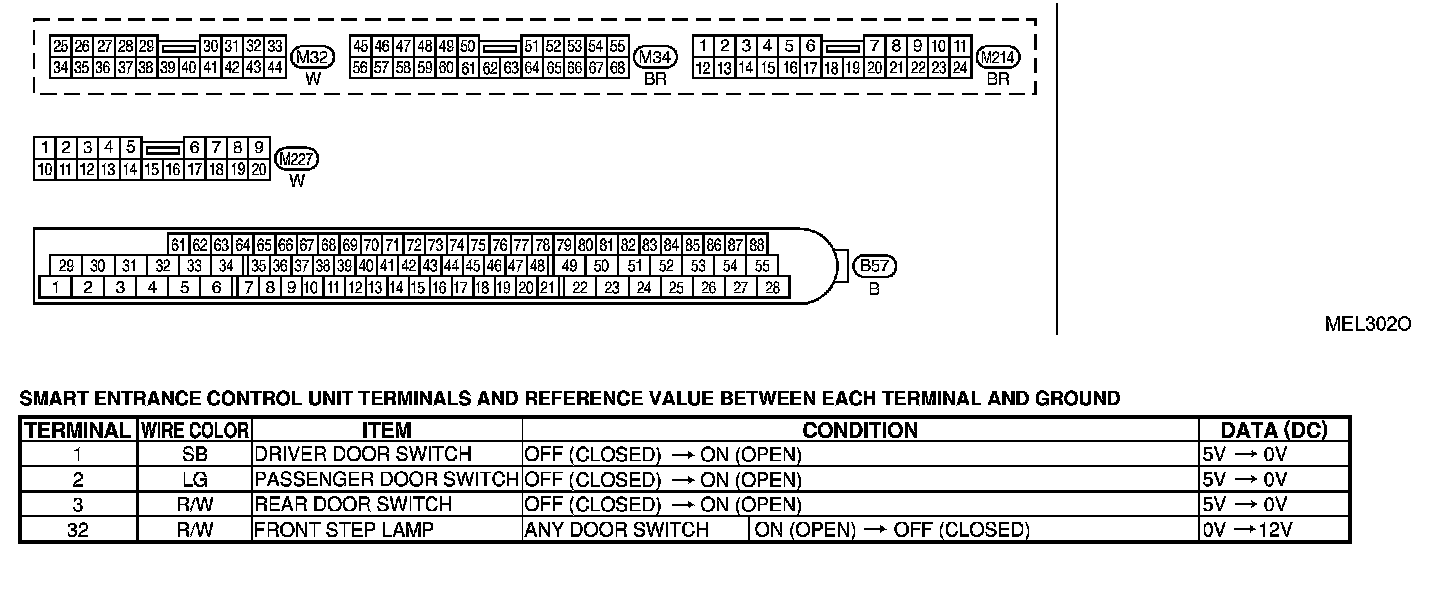

EL-WARN-01 Connectors View:

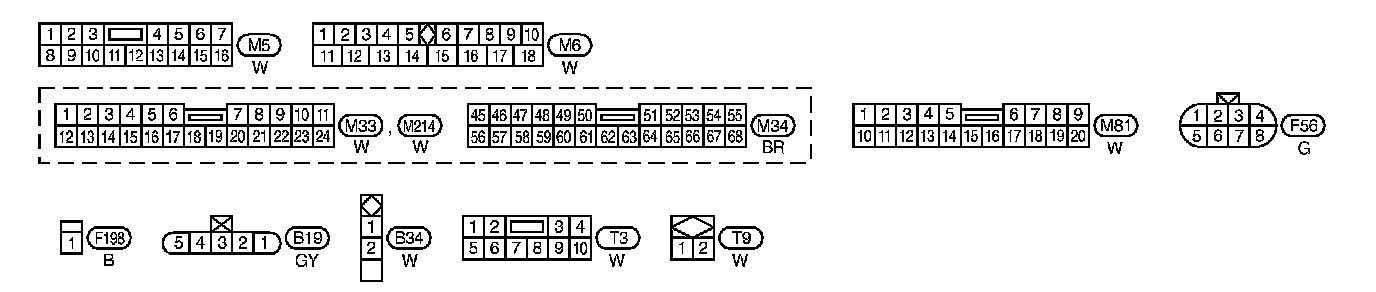

EL-WARN-02 Connectors View:

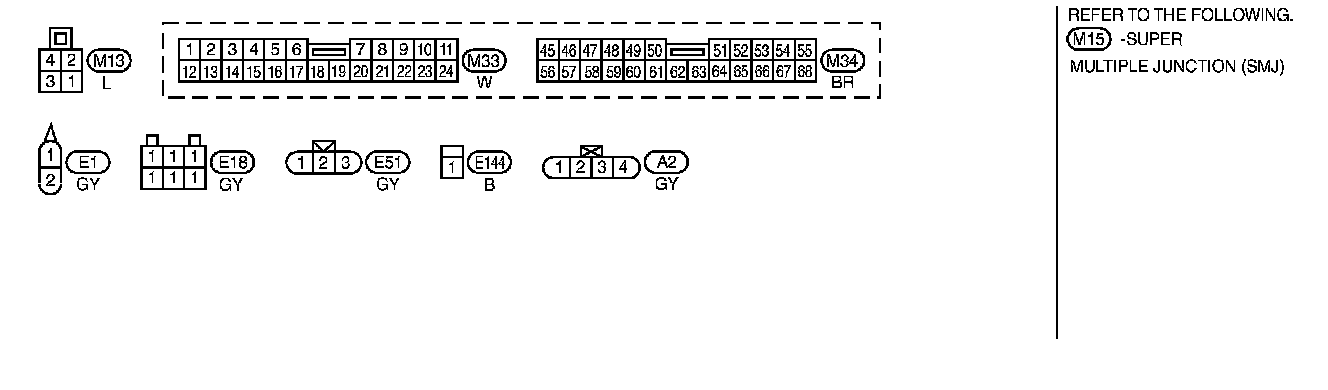

EL-WARN-03 Connectors View:

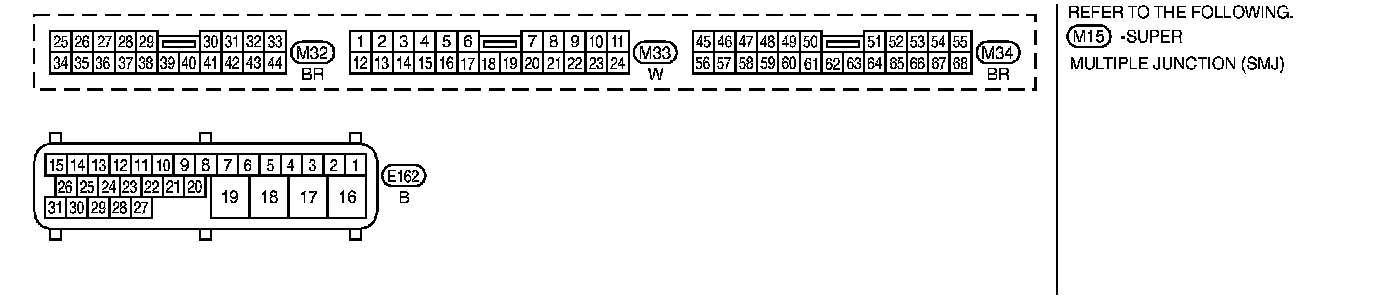

EL-WARN-04 Connectors View:

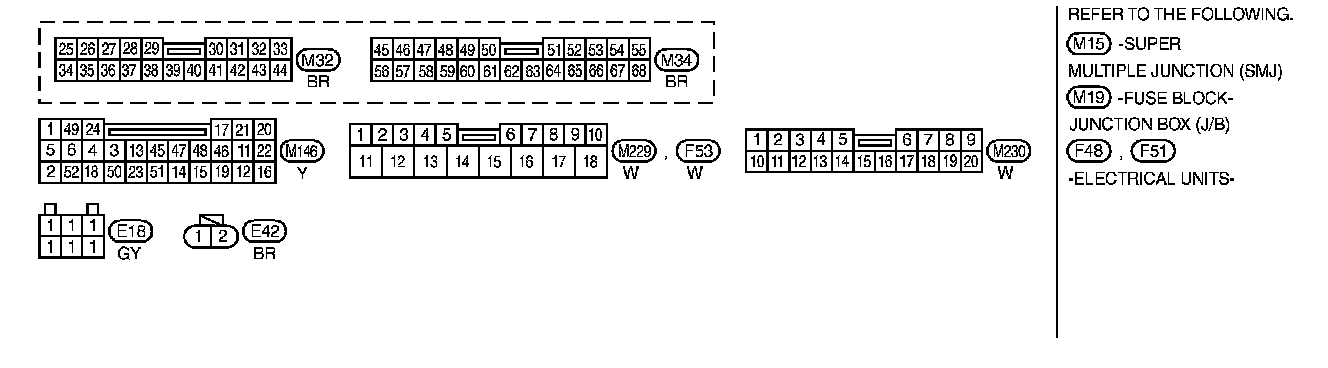

EL-WARN-05 Connectors View:

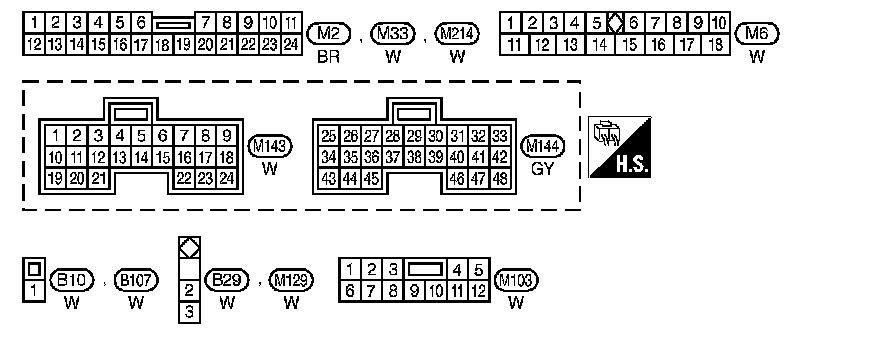

EL-WARN-06 Connectors View:
EL-WARN-07 Connectors View:
