Windows

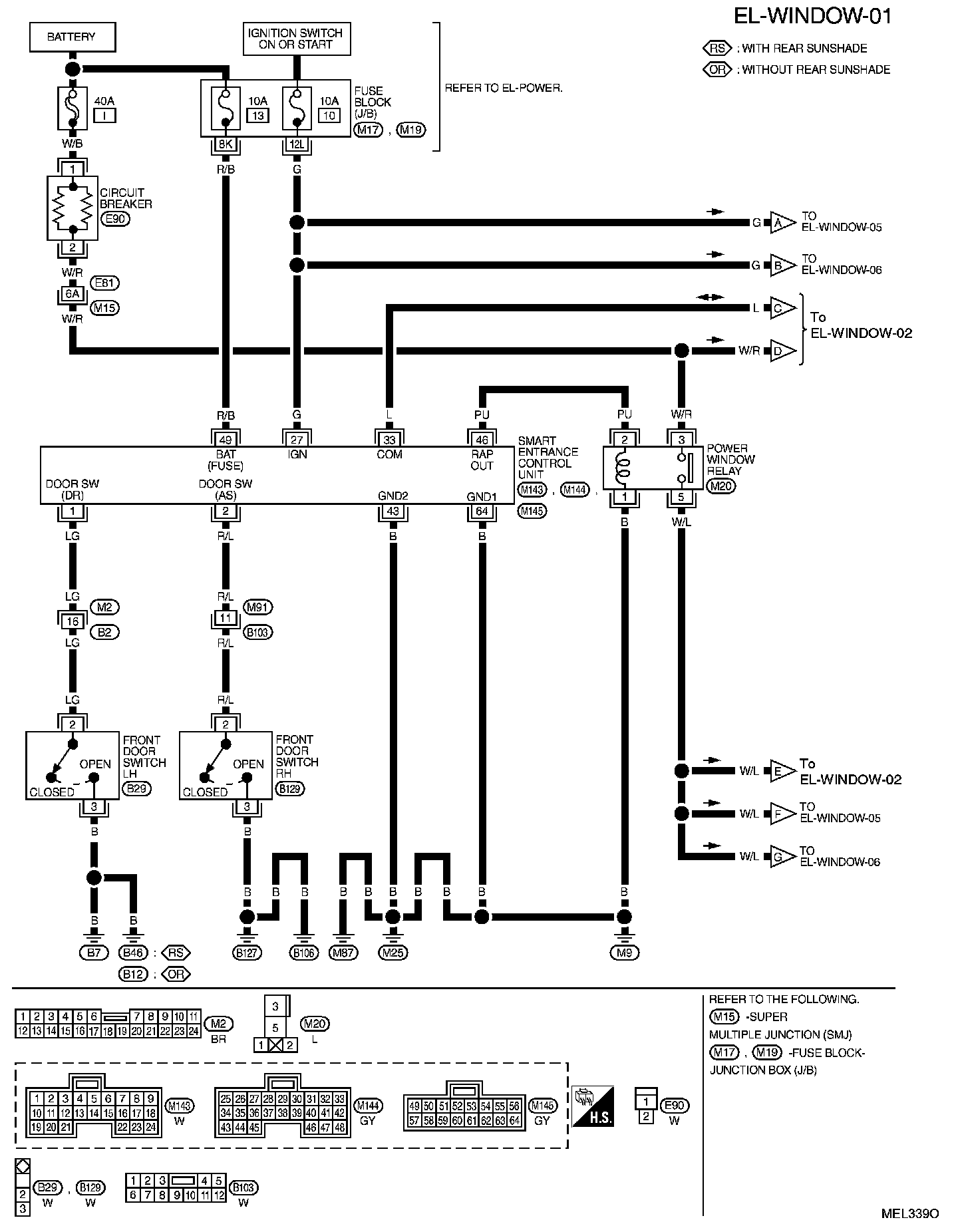

EL-WINDOW-01:
EL-WINDOW / Power Window - Schematic:

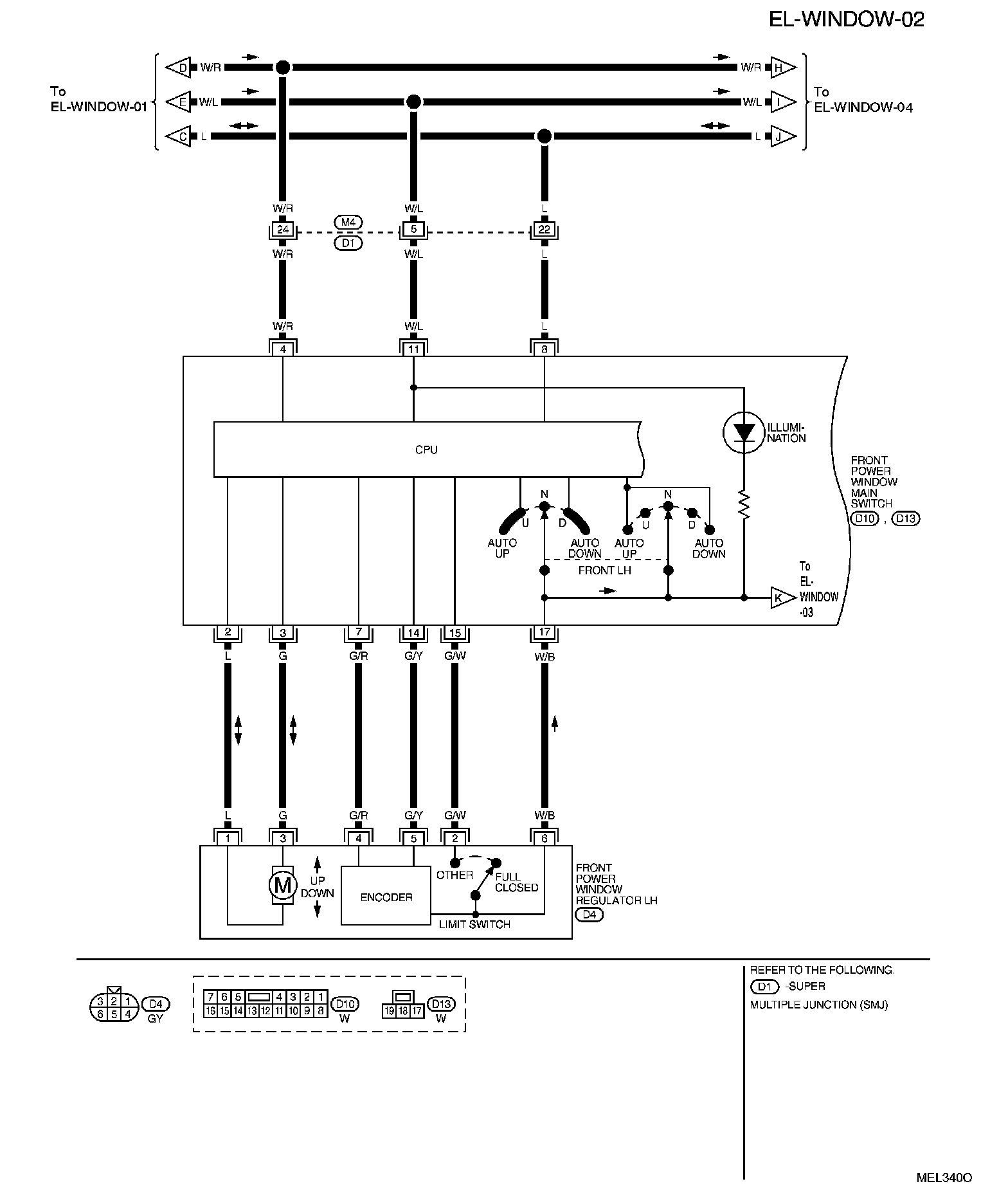

EL-WINDOW-02:

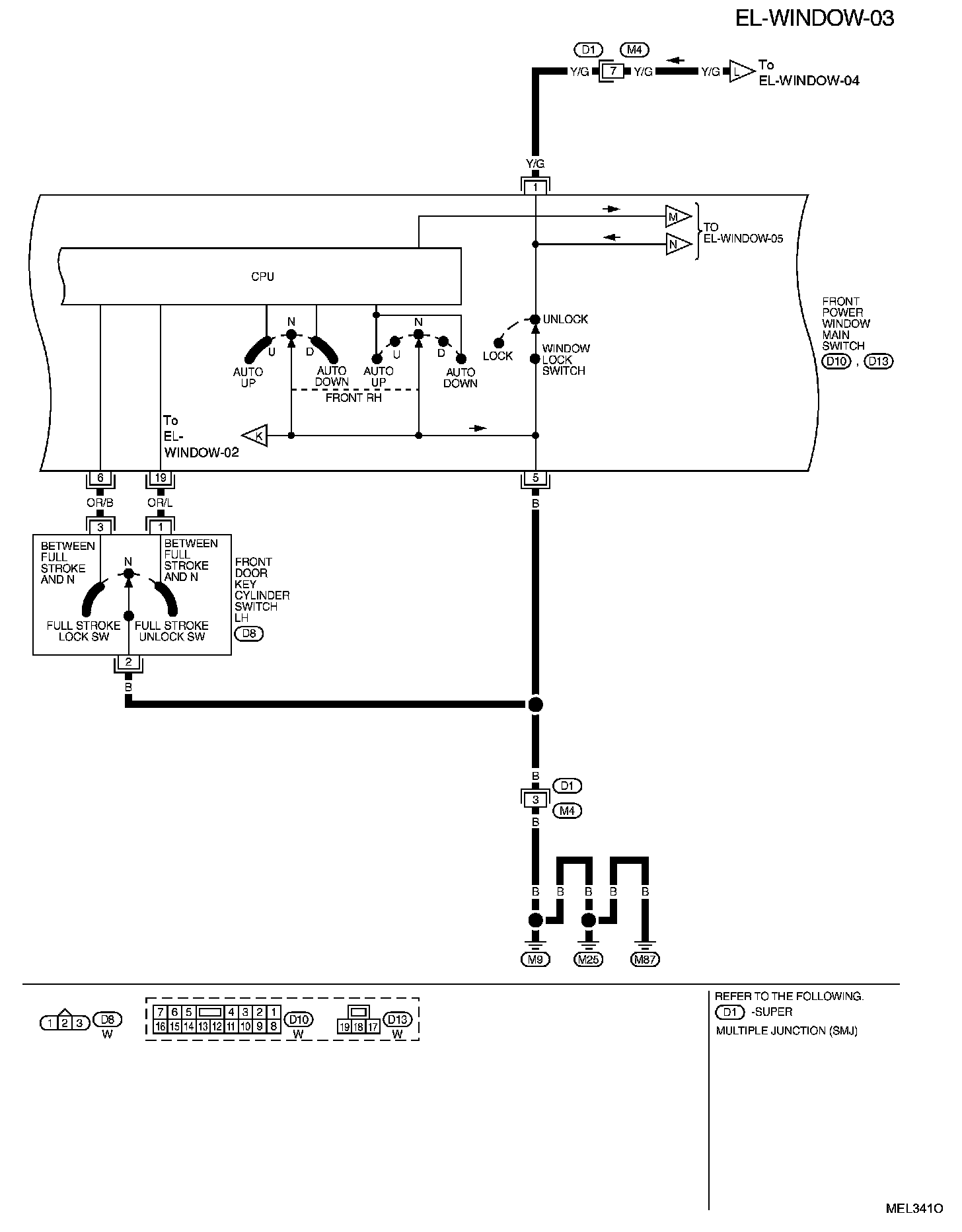

EL-WINDOW-03:

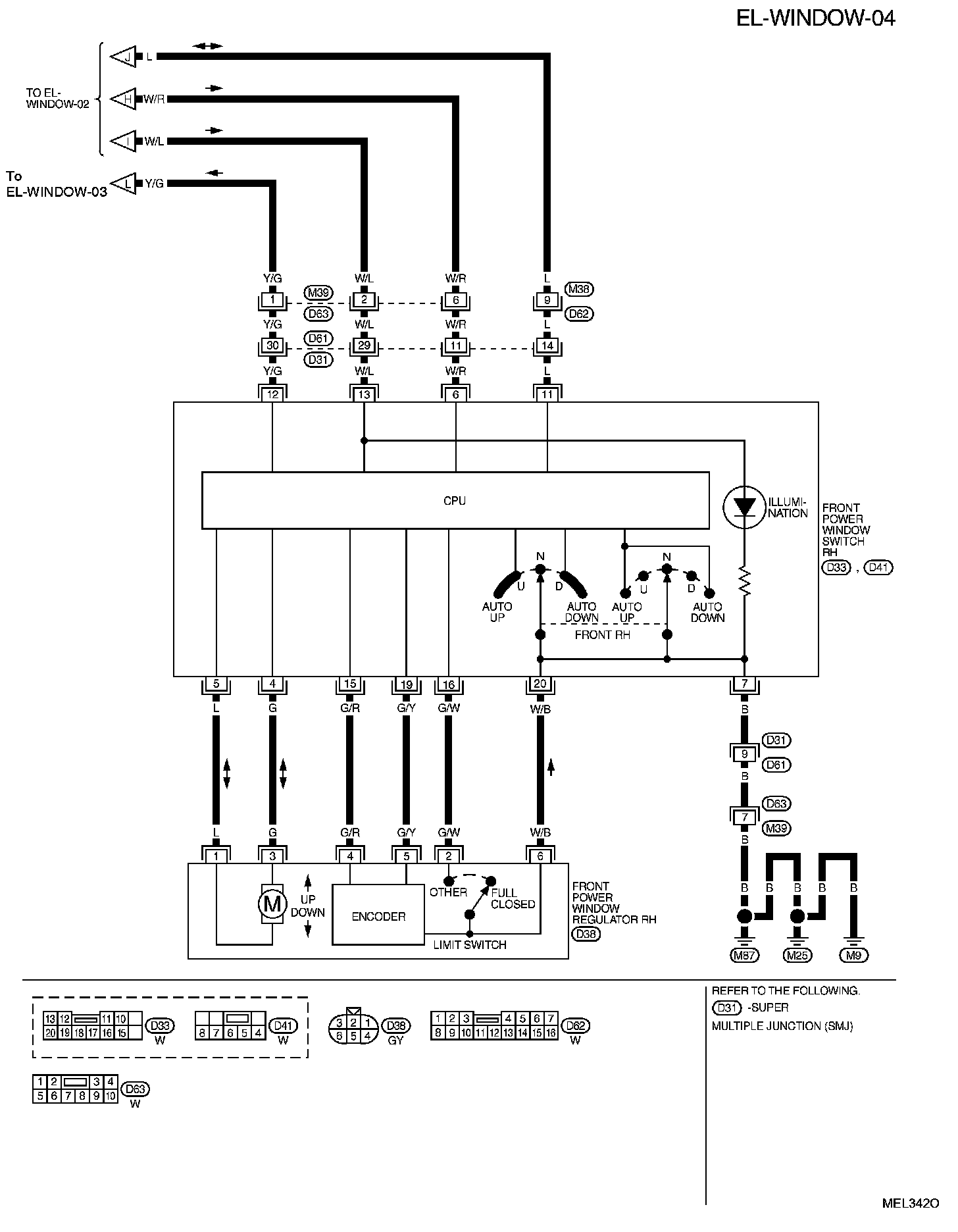

EL-WINDOW-04:

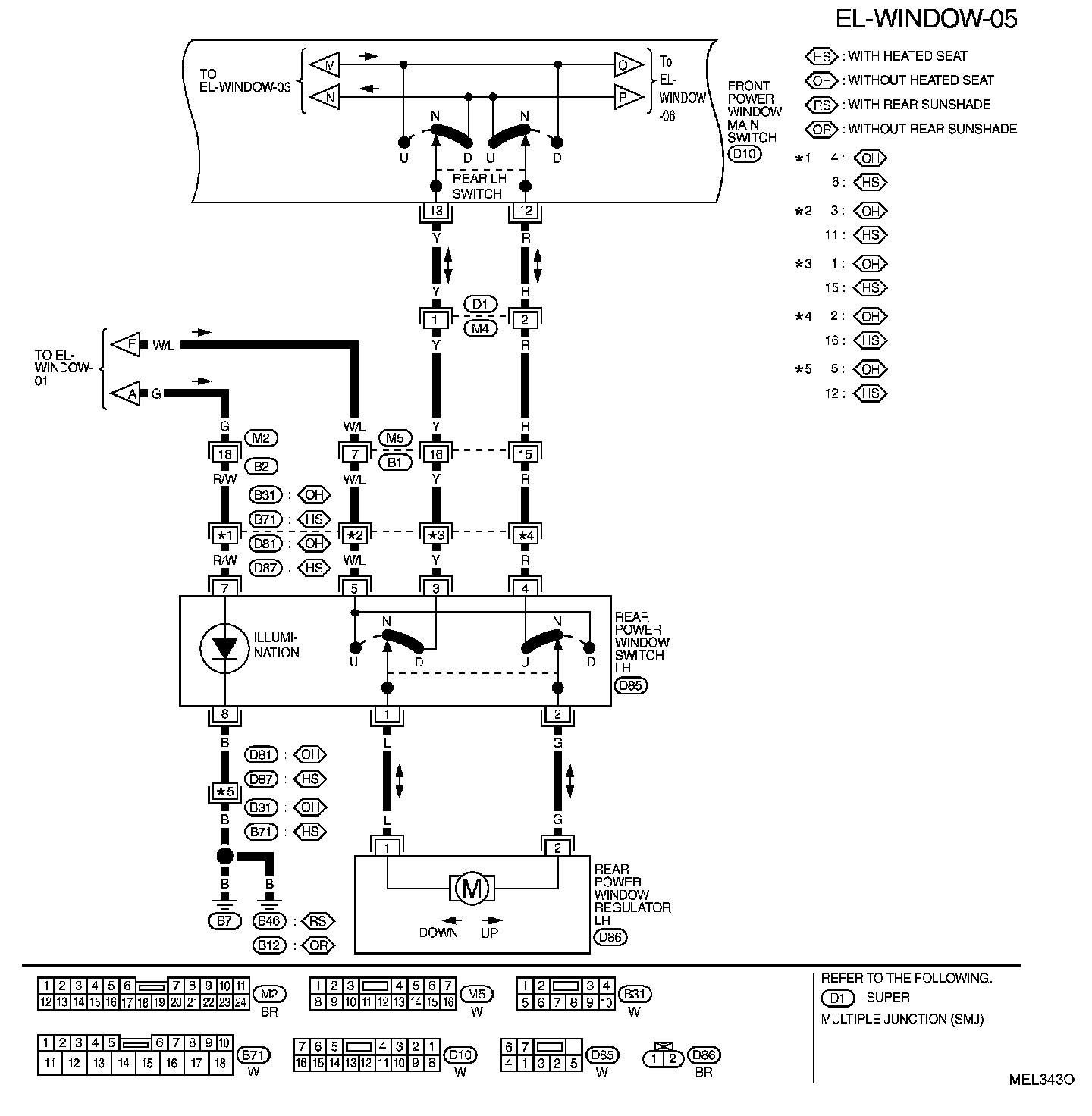

EL-WINDOW-05:

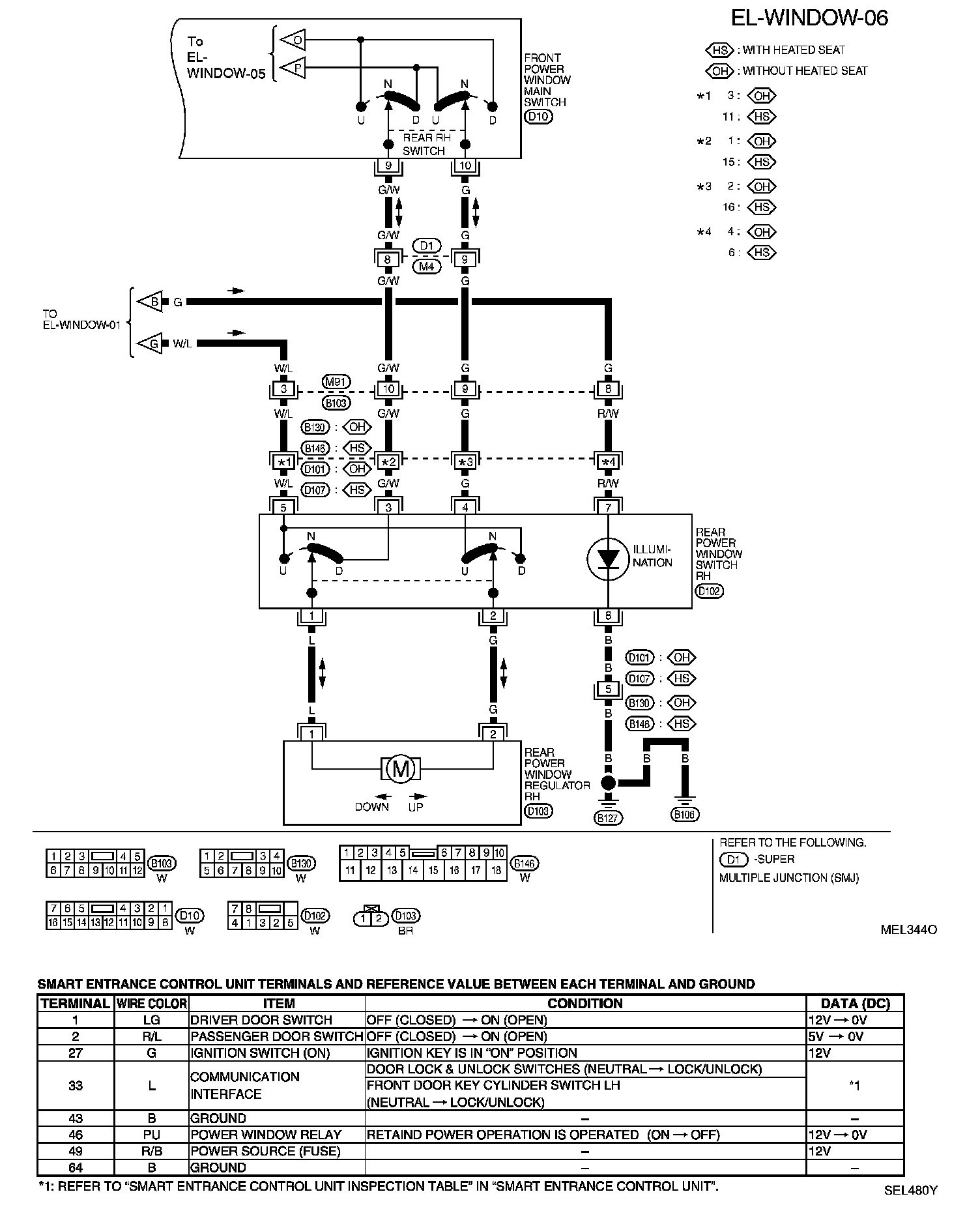

EL-WINDOW-06:
