Intake Manifold: Service and Repair

Engine Outer Components (1 Of 2):

Engine Outer Components (2 Of 2):

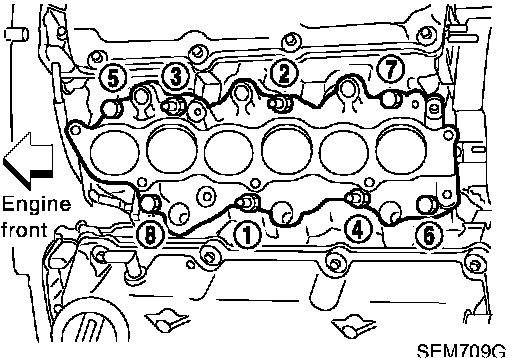

Intake Manifold / Torque Sequence:

Intake Manifold / TIGHTENING PROCEDURE
1. Tighten in numerical order shown in the figure.
2. Tighten all bolts and nuts to ...........4.9 to 9.8 Nm (0.50 to 0.99 kg-m, 44 to 86 inch lbs.).
3. Finally tighten all bolts and nuts to ...........26.5 to 31.4 Nm (2.7 to 3.2 kg-m, 20 to 23 ft. lbs.).
4. Tighten all bolts and nuts to the final torque, evenly dividing the tightening into at least five steps.

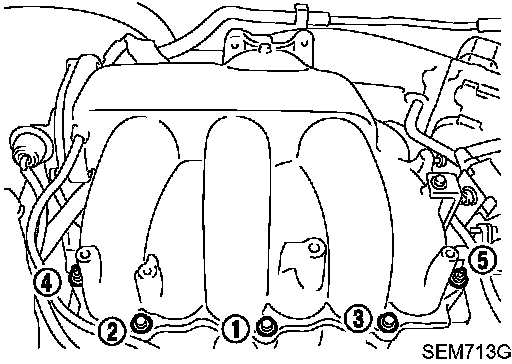

Intake Manifold Upper Collector / Torque Sequence:

Intake Manifold Upper Collector / TIGHTENING PROCEDURE
1. Tighten in numerical order shown in the figure.
2. Tighten all bolts to ................17.6 to 21.6 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.).

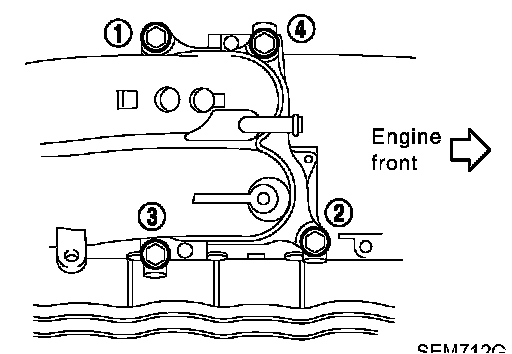

Intake Manifold Lower Collector / Torque Sequence:

Intake Manifold Lower Collector / TIGHTENING PROCEDURE
1. Tighten in numerical order shown in the figure.
2. Tighten bolts and nuts to ................17.6 to 21.6 Nm (1.8 to 2.2 kg-m, 13 to 15 ft. lbs.)
