Shift Interlock: Testing and Inspection

Component Inspection
SHIFT LOCK SOLENOID

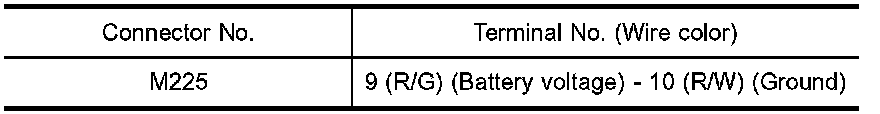

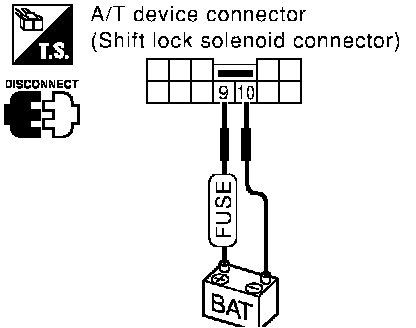

- Check operation by applying battery voltage to control device connector.





CAUTION: Be sure to apply the voltage of the correct polarity to the respective terminals. Otherwise, the part may be damaged.

DETENTION SWITCH
For Key:

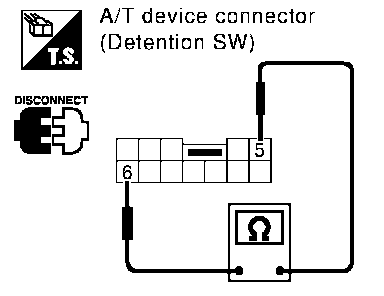

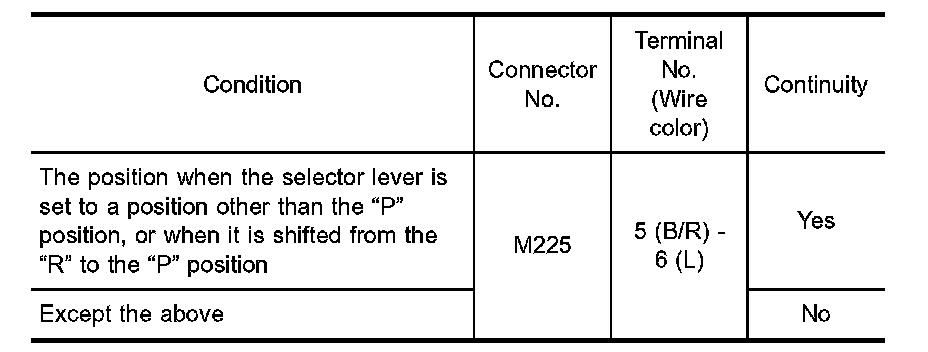

- Check continuity between terminals of the control device connector.

KEY LOCK SOLENOID
Key Lock

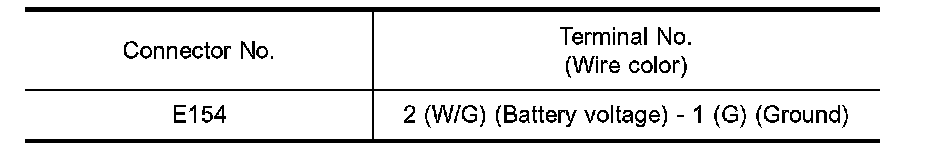

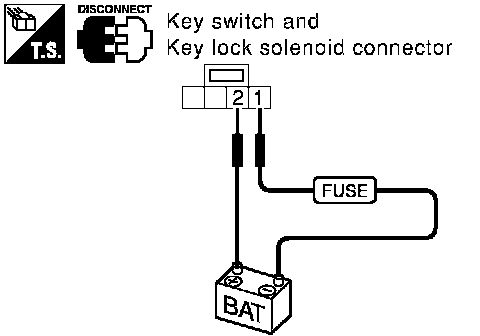

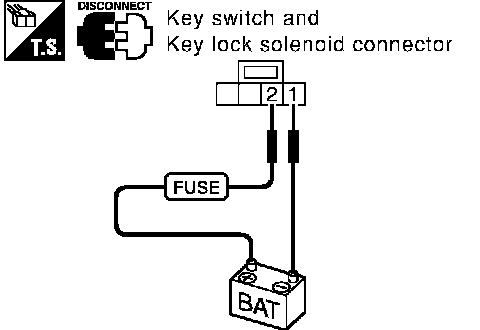

- Check operation by applying battery voltage to key switch and key lock solenoid connector.





CAUTION: Be careful not to cause burnout of the harness.

Key Unlock

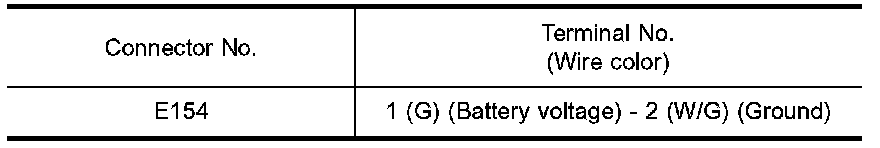

- Check operation by applying battery voltage to key switch and key lock solenoid connector.





CAUTION: Be careful not to cause burnout of the harness.

KEY SWITCH

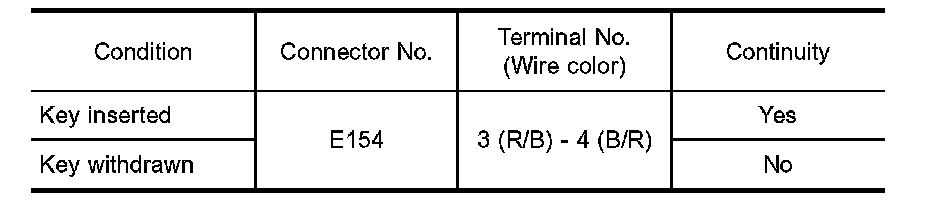

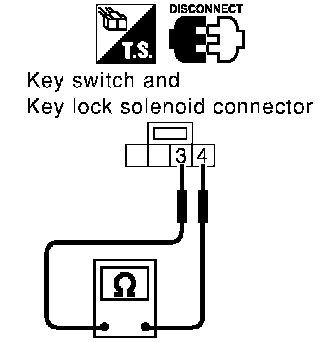

- Check continuity between terminals of the key switch and key lock solenoid connector.

STOP LAMP SWITCH

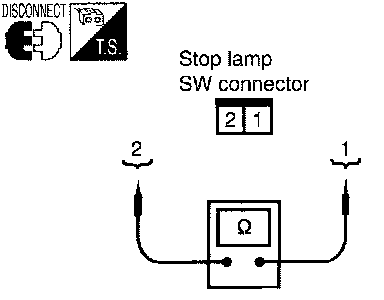

- Check continuity between terminals of the stop lamp switch connector.
Check stop lamp switch after adjusting brake pedal.

SHIFT CONTROL SYSTEM

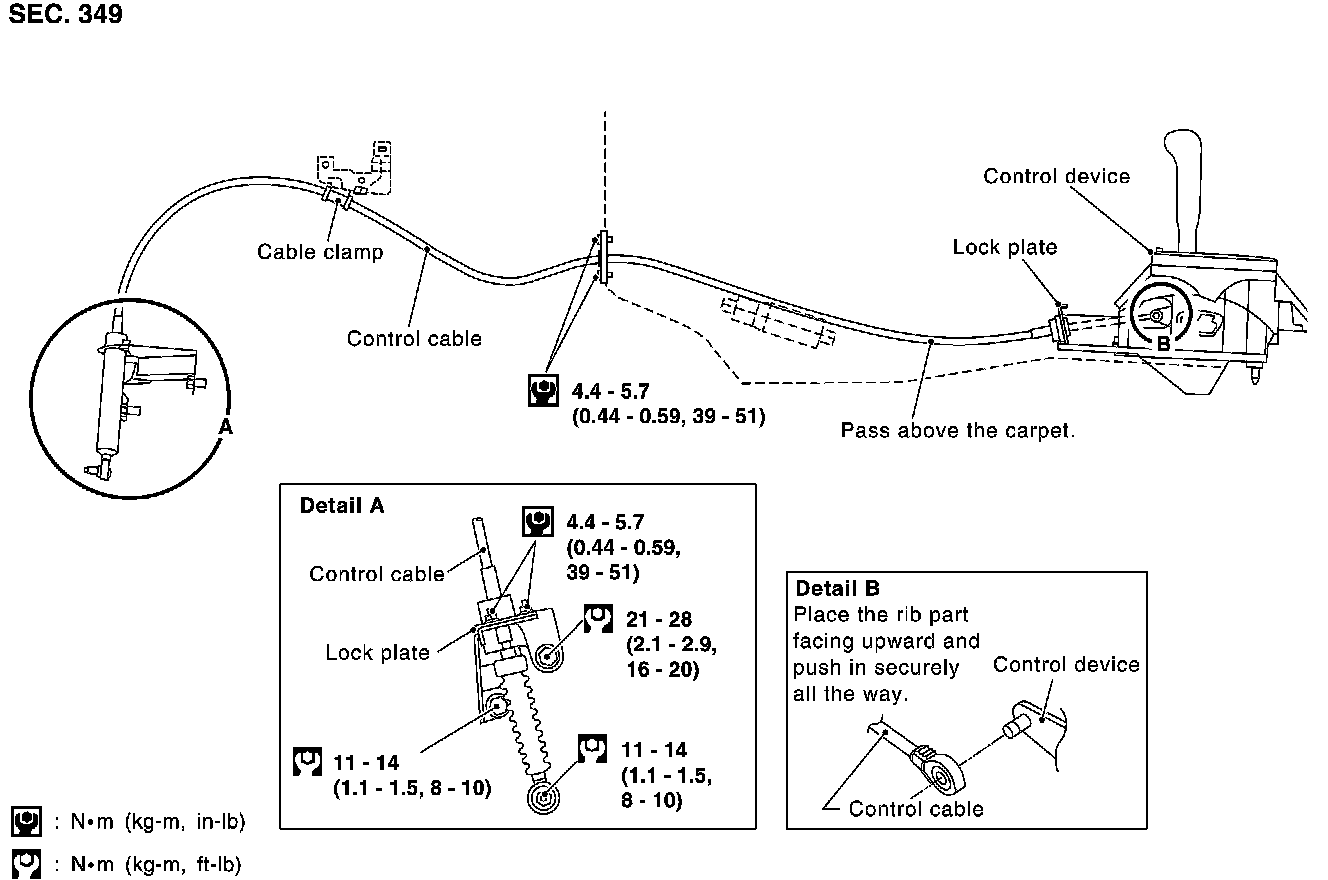

Control Cable
