Alarm Module: Locations

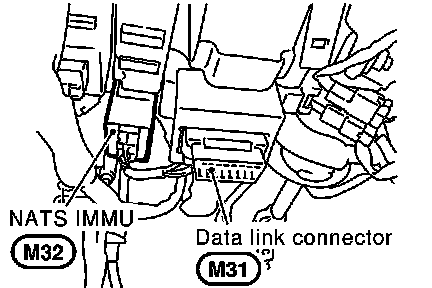

Data Link Connector:

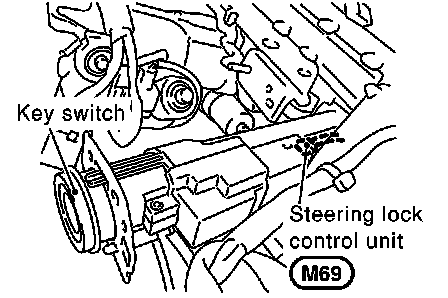

Key Switch, Steering Lock Control Unit:

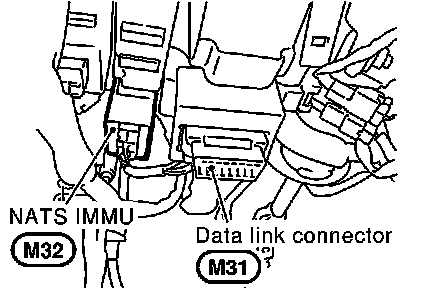

NATS IMMU, Data Link Connector:



Overall View:

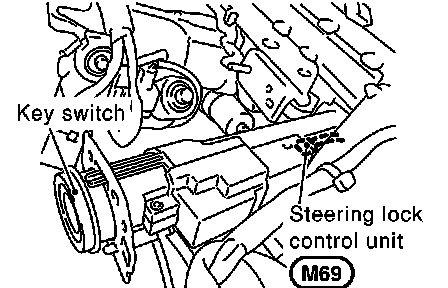

Key Switch, Steering Lock Control Unit:



Component View D:
