Cowl: Service and Repair

Removal and Installation

REMOVAL
1. Remove both right/left wiper arms from vehicle. Refer to "Removal and Installation for Front Wiper Arms, Adjustment for Wiper Arms Stop Location".
2. Remove brake fluid check cover and ABS unit cover. Refer to "Removal and Installation".

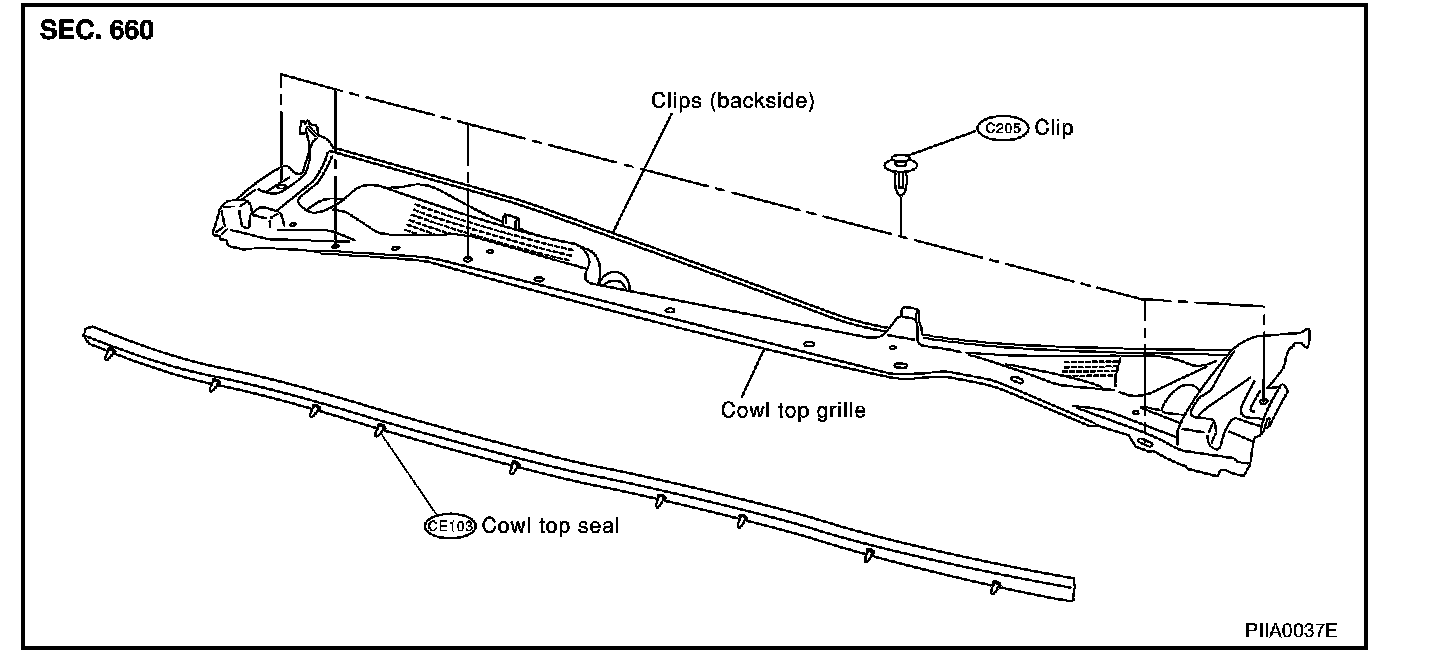

3. Release clips of both cowl top seal rubber and cowl top cover, and remove cowl top cover.

INSTALLATION
To install, reverse the removal procedure sequence.
