Terminals and Reference Value For Control Units
Terminals and Reference Value For Control Units

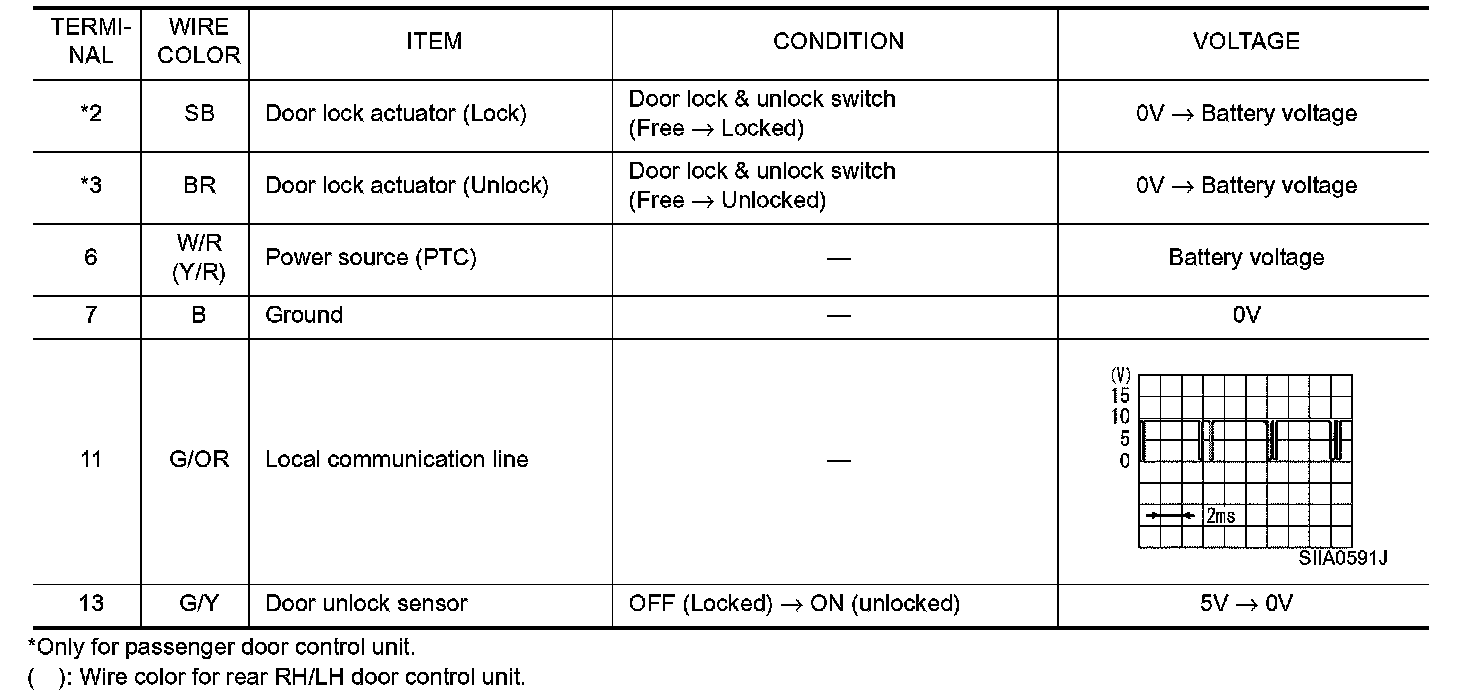

Terminals And Reference Value For Passenger And Rear LH, RH Door Control Units:
