Trunk / Liftgate Weatherstrip: Service and Repair

Removal and Installation of Trunk Lid Weather-strip

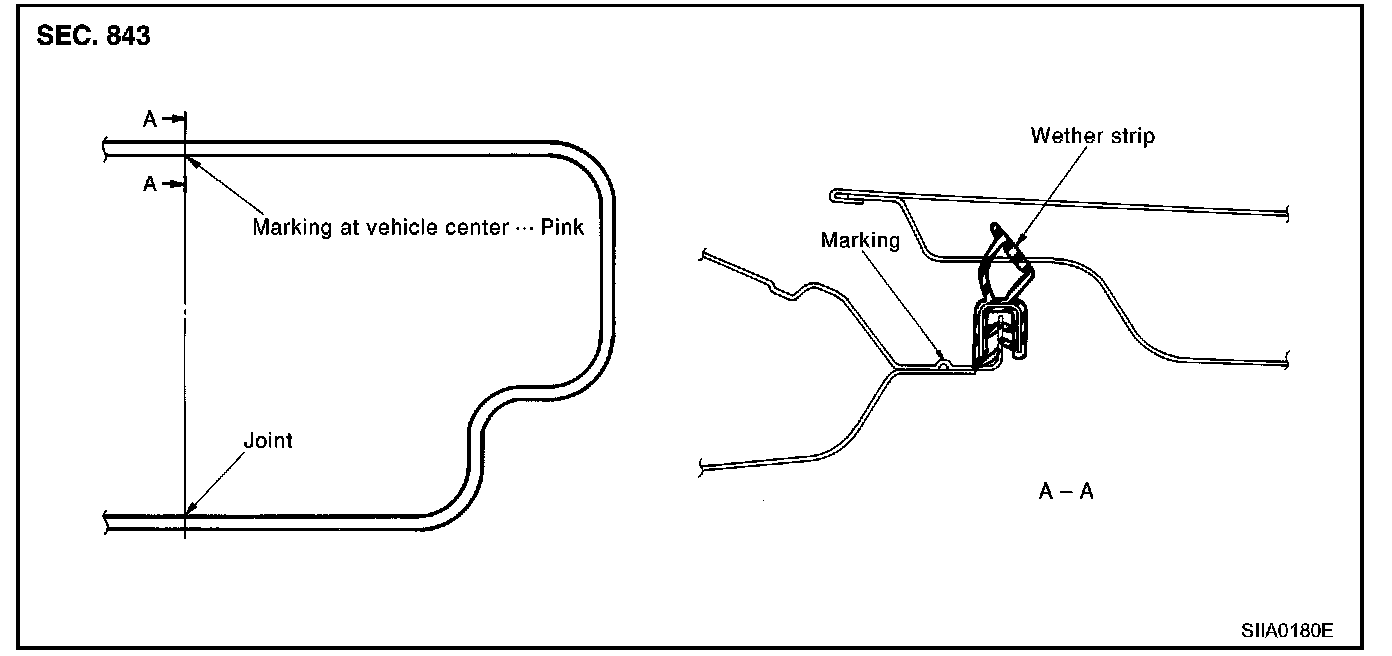

1. Install the weather-strip from the front with the vehicle center mark aligned to the weather-strip mark.
2. At rear side, align the weather-strip seam to the center of the striker.
3. After installing, pull the weather-strip lightly to check for looseness.

CAUTION: The weather-strip shall be fit tightly onto the corners and trunk lid rear plate.
