Electrical Units

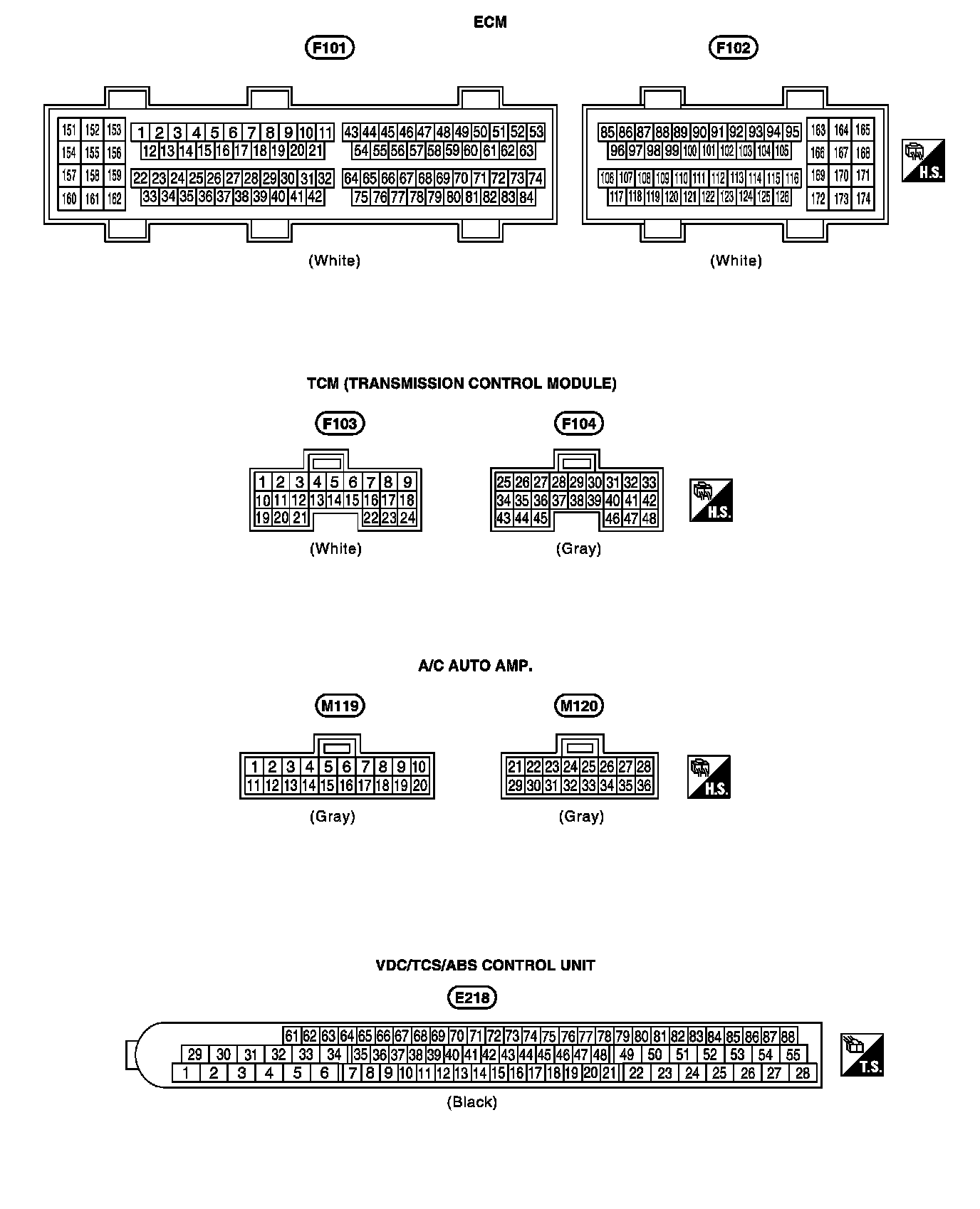

Electrical Units Terminal Arrangement Part 1:

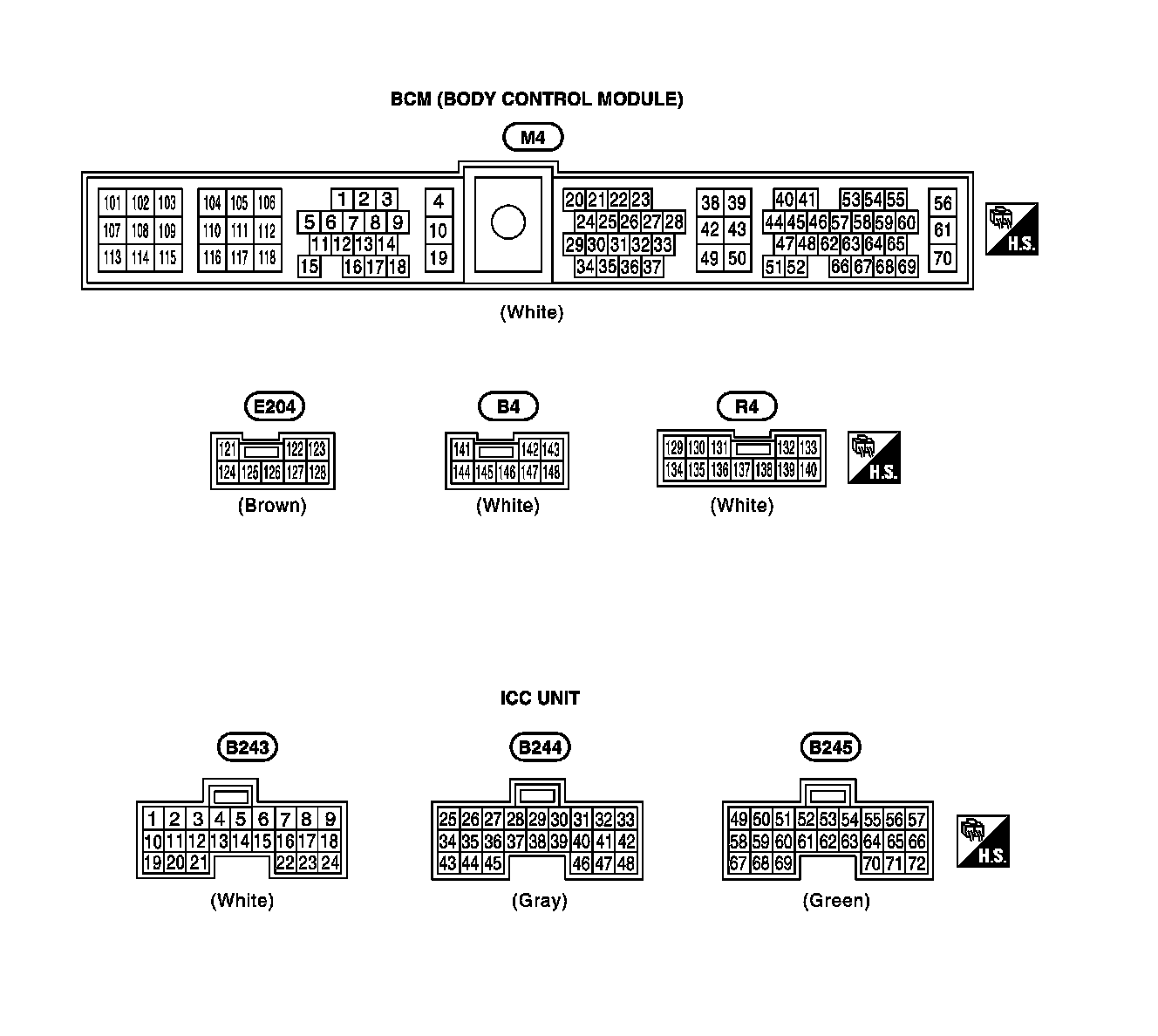

Electrical Units Terminal Arrangement Part 2:
