Evaporator Temperature Sensor / Switch: Service and Repair

Intake Sensor / Removal and Installation
1. Remove heater & cooling unit.
2. Remove the evaporator from heater & cooling unit.
Housing Assembly HVAC
Evaporator Case

3. Separate the heater & cooling unit case.

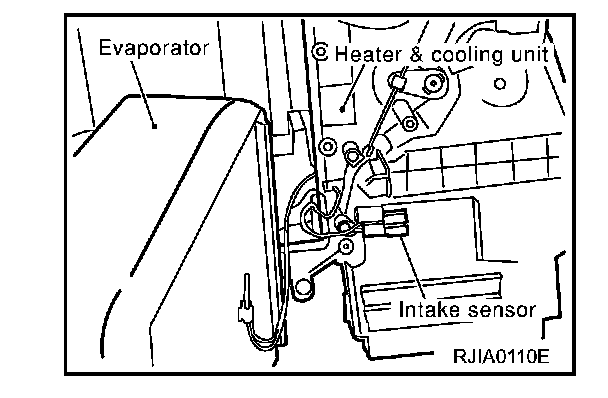

4. Remove the intake sensor.

INSTALLATION
Installation is the reverse order of removal.
