Refrigerant Pressure Sensor / Switch: Testing and Inspection

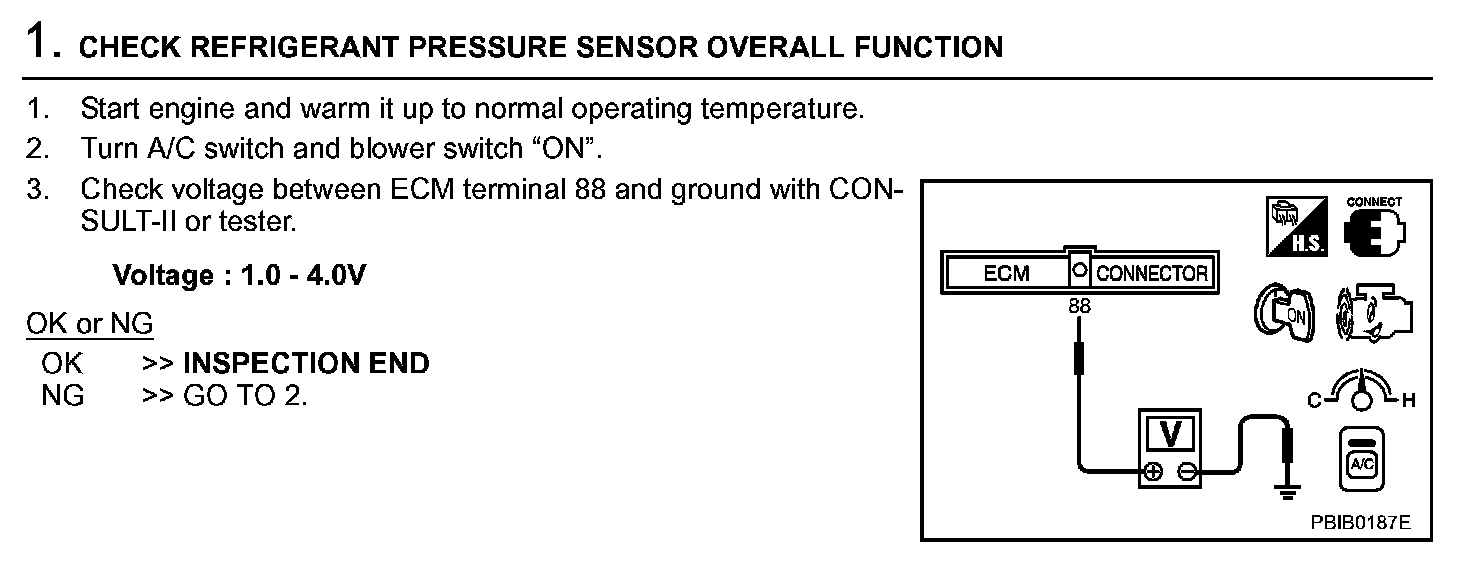

Step 1:

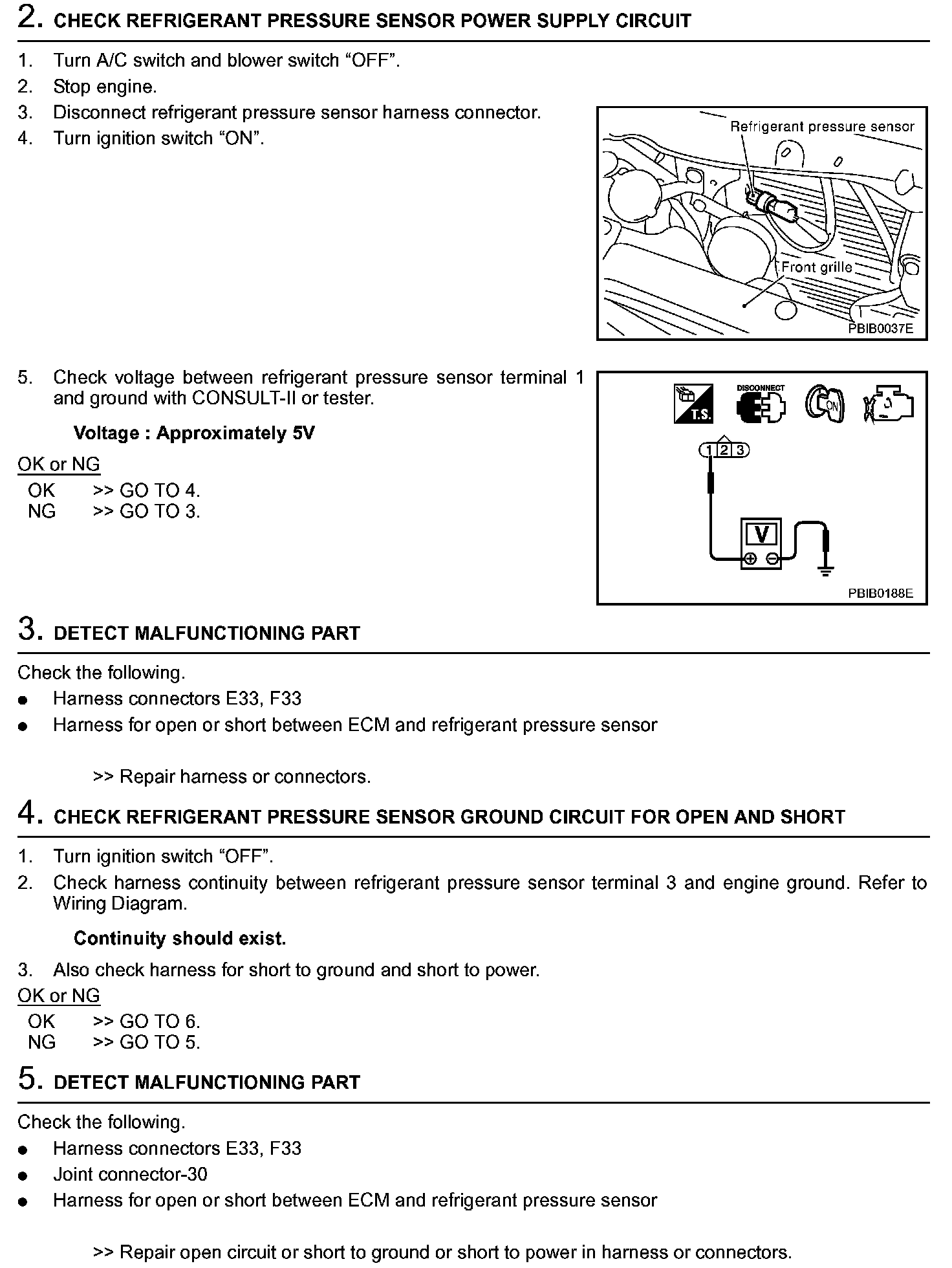

Step 2 - 5:

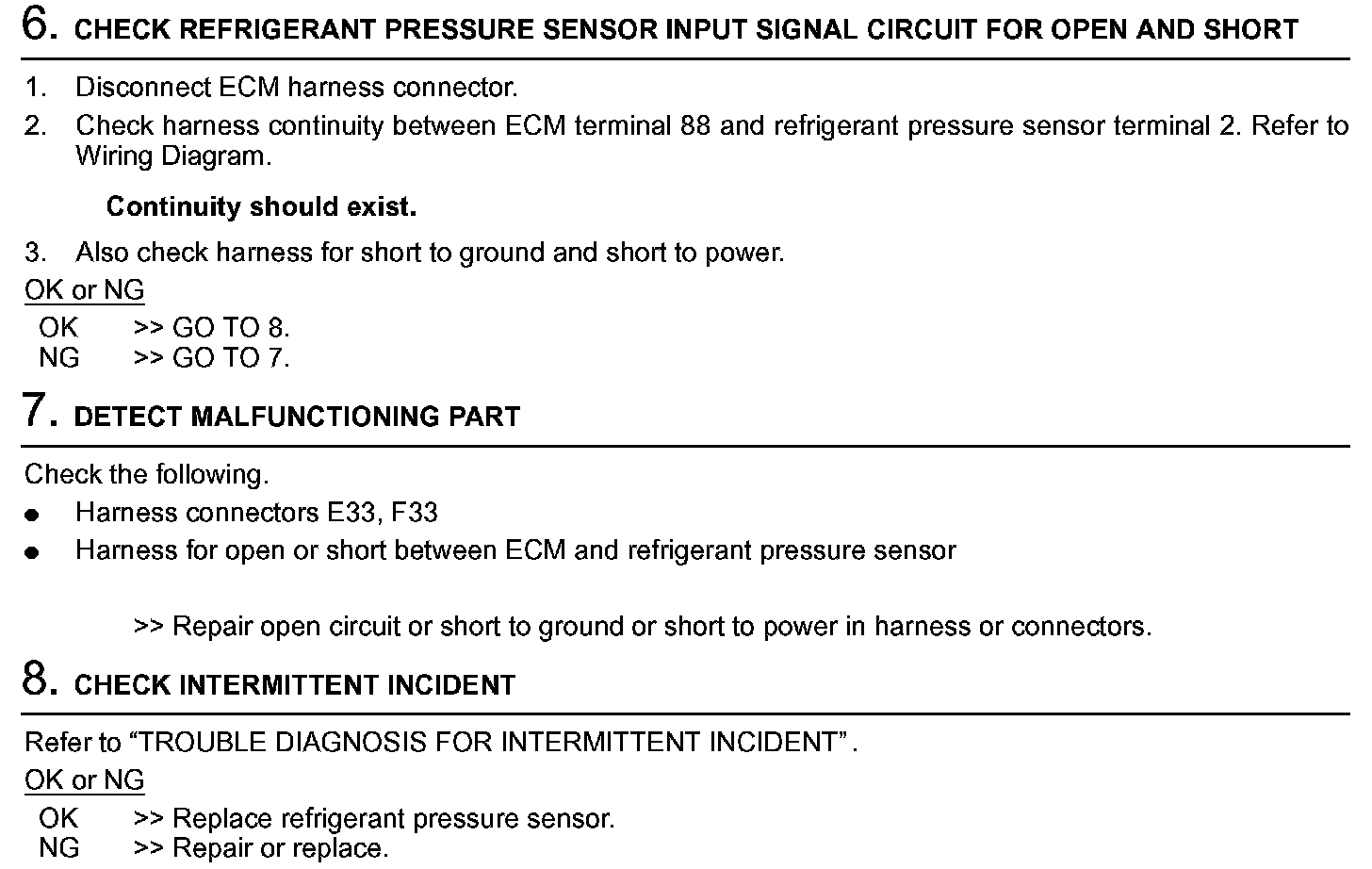

Step 6 - 8:

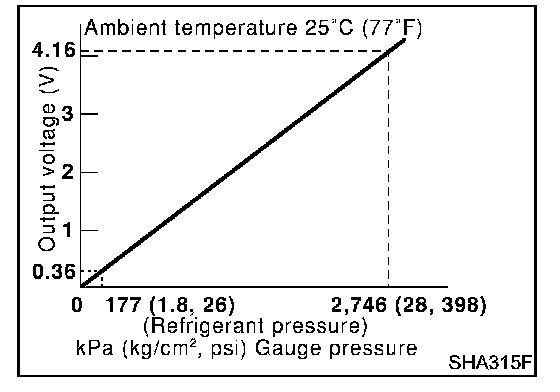

Refrigerant Pressure Sensor
The refrigerant pressure sensor is attached to the liquid tank (condenser).
